Quick Answer
Solar design for shopping mall sizes rooftop or carport arrays to the mall's daytime common-area and tenant load, not the available roof. A typical enclosed mall uses 65.7 kBtu per square foot per year of site energy. Key steps are structural review, shading analysis, fire-code setbacks, tenant allocation, and interconnection model selection.
Retail buildings account for roughly 14 percent of all electricity used in U.S. commercial buildings, according to the U.S. Energy Information Administration (2023). Shopping malls sit at the high end of that segment. An enclosed mall averages a site energy use intensity of 65.7 kBtu per square foot per year. A strip mall averages 103.5 kBtu per square foot per year, according to ENERGY STAR (2024). Those figures mean a 500,000 square foot enclosed mall can easily consume 10 to 15 million kWh per year. At typical commercial rates, that is an annual utility spend of $1.2 million to $2.0 million.
The solar opportunity is straightforward. Malls operate mostly during daylight hours, so solar production overlaps with load. Rooftop space is plentiful, and parking lots offer carport potential. The design problem is that a mall is not a single warehouse. It has anchor tenants with their own meters, common-area loads, rooftop HVAC units that cast shade, and a flat roof that may be 30 years old. Get any of those wrong and the project dies in interconnection review or in the property manager’s inbox.
SurgePV is an all-in-one solar software platform built for commercial solar workflows. If you are designing mall solar at scale, use a cloud solar design platform that imports interval data, runs shadow analysis, and exports permit-ready plans. The generation and financial tool models mall-specific tariffs, incentives, and cash-flow structures in one place.
Quick Answer
Solar design for shopping mall sizes rooftop or carport arrays to the mall’s daytime common-area and tenant load, not the available roof. A typical enclosed mall uses 65.7 kBtu per square foot per year of site energy. Key steps are structural review, shading analysis, fire-code setbacks, tenant allocation, and interconnection model selection.
In this guide:
- Why shopping malls are strong solar candidates in 2026
- How enclosed malls differ from strip malls in design
- Step 1: site data and roof readiness
- Step 2: roof layout, setbacks, and mounting
- Step 3: shading, stringing, and inverter topology
- Step 4: interconnection and tenant billing models
- Step 5: financial model and incentive stack
- Common shopping mall solar design mistakes
- How SurgePV speeds up mall solar design
- FAQ with 10 shopping mall solar questions
Why Shopping Malls Are Prime Solar Sites in 2026
Commercial solar had a record third quarter in 2024. The segment installed 535 MWdc, up 44 percent year-over-year and 17 percent quarter-over-quarter, according to the SEIA / Wood Mackenzie U.S. Solar Market Insight Q4 2024. The same report expects commercial solar to grow 13 percent in 2024. Malls are a large, underutilized slice of that market. Their roofs are flat, their loads are daytime, and their owners are under pressure to cut operating expenses.
Costs have also moved in the owner’s favor. U.S. commercial PV system costs fell 77 percent between 2010 and 2024. They dropped from $6.83 per watt to $1.55 per watt, according to the NREL / DOE cost benchmark report (2025). The NREL / DOE Q1-2024 Solar Cost Benchmarks dataset puts the modeled market price for a 3 MWdc commercial system at $1.51 per watt. Those numbers make a 500 kW to 2 MW mall project economically interesting even before the 30 percent federal Investment Tax Credit (ITC).
Electricity prices give the project its margin. U.S. commercial electricity prices averaged about $0.13 per kWh in 2024, according to the EIA Electric Power Monthly. Every kWh produced and consumed on-site avoids the full retail rate, plus demand-charge relief at the margin. Exported kWh are usually worth far less, which is why mall solar design starts with self-consumption, not annual offset.
| Mall subtype | Typical size | Site EUI (kBtu/ft²/yr) | Estimated annual electricity | Rooftop solar potential | Design driver |
|---|---|---|---|---|---|
| Enclosed regional mall | 500,000–1,000,000 ft² | 65.7 | 8–18 million kWh | 500 kW–2 MW | Common-area + anchor tenant allocation |
| Strip mall | 20,000–150,000 ft² | 103.5 | 1–4 million kWh | 100 kW–800 kW | Multiple tenant meters and leases |
| Outlet / lifestyle center | 200,000–500,000 ft² | 75–95 | 4–10 million kWh | 300 kW–1.2 MW | Mix of open-air and covered walkways |
| Regional power center | 300,000–700,000 ft² | 60–80 | 5–12 million kWh | 400 kW–1.5 MW | Large parking fields favor carports |
The table above is directional. Local climate, operating hours, and tenant mix can shift the numbers by 30 percent or more. Mall energy use is large enough to justify a professional design process. It is also small enough that a single rooftop can cover a meaningful share of it.
The Engineering Difference: Enclosed Malls vs. Strip Malls
Not all malls behave the same way. The two dominant forms — enclosed malls and strip malls — create different design constraints.
An enclosed mall is usually a single large building with a common owner or management company. The roof is continuous, the HVAC is centralized or semi-centralized, and the electrical service is often split between common areas and anchor tenants. The design task is to allocate solar benefits across those accounts. The roof is typically clear of tenant equipment, but it is crowded with RTUs, exhaust fans, and skylights that cast shade.
A strip mall is a row of separate retail suites under one roof plane. Each suite may have its own meter, its own lease, and its own operating hours. The property owner often pays only the common-area meter for parking, signage, and hallway lighting. The design task is to decide whether the solar serves the common-area meter, individual tenants, or the whole building through a virtual net metering tariff.
| Factor | Enclosed mall | Strip mall |
|---|---|---|
| Ownership | Single owner / management | Multiple tenants + landlord |
| Meters | Common + anchors | Many individual tenant meters |
| Roof complexity | High RTU density, fewer parapet issues | Simpler roof, more varied hours |
| Best billing model | VNEM or master-meter allocation | Master-meter or direct tenant subscriptions |
| Carport value | High — large parking fields | Moderate — smaller lots |
| Anchor tenant risk | High — anchor leases drive allocation | Lower — individual suite turnover |
For a broader retail lens, see solar design for retail. The multi-tenant billing principles discussed below apply directly to mall projects.
Step 1 — Site Data and Roof Readiness
The first step in solar design for shopping mall is not layout. It is data collection. Request 12 to 24 months of 15-minute or hourly interval data for every utility account. Monthly bills hide the daily peaks and the weekend lull that determine solar value. You also need:
- Gross and conditioned floor area by tenant
- Roof age, membrane type, and warranty status
- Structural as-builts and live-load capacity
- HVAC type, schedule, and planned replacements
- Electrical service size, switchgear layout, and spare breaker space
- Existing and planned EV chargers
- Lease terms for anchor tenants and common-area maintenance clauses
A roof within 5 to 10 years of replacement should usually be re-roofed before solar is installed. Removing and reinstalling a PV array to replace a membrane can cost $0.30 to $0.60 per watt. It also voids production during the work. Carports become the better path when the roof is old but the parking lot has 20-plus years of life.
Structural load is the next gate. A typical rooftop PV system adds 3 to 6 pounds per square foot of distributed dead load. Ballasted systems can add 8 to 12 psf. A structural engineer should verify capacity against the original design loads and any degradation. If the building was built before modern seismic or snow-load standards, the answer may be no without reinforcement. In those cases, a solar design and engineering consultancy can produce feasibility studies, structural calcs, and PE-stamped permit drawings.
Electrical capacity matters just as much. A 1 MWac system on a 480 V service draws roughly 1,200 amps. The existing switchgear, transformers, and feeders must handle that current without overloading. Early engagement with the utility prevents redesign later.

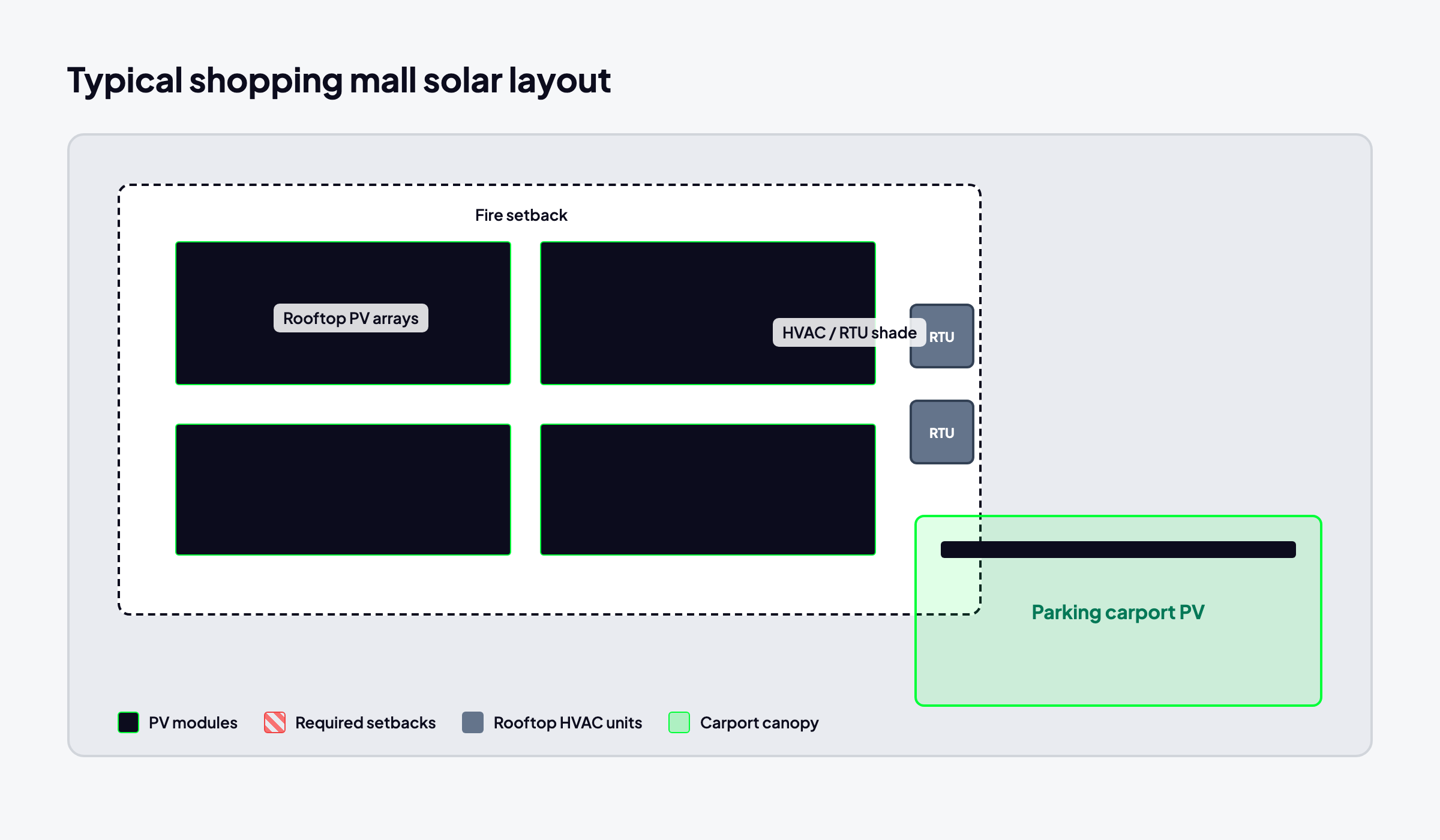

Step 2 — Roof Layout, Setbacks, and Mounting
Once the roof is cleared structurally, the layout phase begins. The goal is to maximize usable module area while leaving the access paths that firefighters, HVAC technicians, and roofers need.
The International Fire Code and local amendments typically require:
- A 6-foot clear path around the perimeter of the roof
- 8-foot setbacks from ridges and hips where the roof is pitched
- Clear access to all rooftop equipment and vents
- A 6-foot access path between module rows on large arrays
These rules are not suggestions. An AHJ will reject a permit that blocks access. A good layout tool models setbacks as exclusion zones before any panels are placed.
Mounting choice depends on the roof. Ballasted racking works on flat TPO, EPDM, or modified bitumen roofs with adequate load capacity and no penetration concerns. Attached rail systems anchor to structural decking and are preferred in high-wind or seismic zones. Tilted racking increases winter production but adds wind load and row spacing. South-facing 10-degree tilt is common for flat roofs in the U.S.
East-west layouts are often better for malls than pure south. A mall’s load is flat across business hours. An east-west array produces a broader, flatter generation curve that matches that load and reduces clipping losses. It also packs more watts onto the roof because row spacing is smaller.
Carport design is a parallel exercise. Column spacing must match parking bay widths, typically 18 to 24 feet. Clearance height must allow delivery trucks and emergency vehicles, usually 14 feet minimum. Double-cantilever canopies cover two rows of parking with a single row of columns. Solar carports cost $2.50 to $4.00 per watt, but they add shade, EV charging real estate, and tenant goodwill.
Step 3 — Shading, Stringing, and Inverter Topology
Shading is the silent killer of mall production. Rooftop HVAC units, exhaust fans, parapet walls, and nearby buildings cast moving shadows across the array. A single shaded module on a long string can drag down the whole string if the system uses only string inverters. The fix is to model shade early and design around it.
Use a shadow analysis tool that imports LiDAR, satellite imagery, and drone data. SurgePV can build a 3D roof model from aerial imagery and simulate hourly shade for every module location. The output is a shade-loss percentage by string, which feeds directly into the production estimate.
Inverter topology should match the shade risk:
- String inverters with power optimizers: best for large, mostly unshaded roofs where some equipment shade exists. Optimizers keep each module at its maximum power point.
- Microinverters: best for complex roofs with multiple orientations and heavy partial shade. Higher cost per watt, but the lowest string-loss risk.
- Central string inverters: best for wide, open roof areas with uniform tilt and minimal shade. Lowest cost per watt, but highest sensitivity to mismatch.
For a 1 MW mall roof, a common approach groups unshaded south-facing sections under central string inverters. It uses optimizers or microinverters around RTUs and parapets. This hybrid design balances cost and resilience.
String voltage and inverter input windows must be checked against local temperature extremes. Cold mornings raise module open-circuit voltage. Hot afternoons lower current. The string design must stay within the inverter’s maximum input voltage at the coldest expected temperature and above the minimum start voltage at the hottest.
Step 4 — Interconnection and Tenant Billing Models
A mall solar array is physically connected to one meter, but the building may have a dozen accounts. The interconnection model decides who gets the financial benefit. The three main options are master-meter pass-through, virtual net metering (VNEM), and direct submetering.
Master-meter pass-through is simplest when the property owner holds the single utility account. Solar offsets that bill, and the owner passes savings to tenants through a Ratio Utility Billing System (RUBS) or a fixed green-lease addendum. The owner keeps the tax credits and depreciation. The risk is lease turnover: a new tenant may refuse the solar charge.
Virtual net metering lets one solar system feed the grid through a production meter while the utility splits kWh credits across multiple accounts. VNEM is available in California, Massachusetts, New York, and several other states. It is the cleanest path when the mall has multiple meters behind one service delivery point. The allocation table is filed with the utility, and credits appear on each tenant’s bill.
Direct submetering installs private revenue-grade meters and bills tenants directly for solar energy. It offers the highest precision but adds hardware, software, and ongoing billing overhead. It works well where VNEM is not available and the owner wants full control.
Read more about net metering and virtual net metering in our glossary. For VNEM-specific design, see multi-tenant commercial solar design.
Anchor tenants are the wild card. A department store with its own meter and a 20-year lease may want its own allocation. A food court with high evening load may benefit less from daytime solar. The allocation table should reflect actual interval consumption, not only square footage. An unfair allocation is the most common reason mall solar projects fail at the lease stage.
Step 5 — Financial Model and Incentive Stack
The financial case for mall solar rests on three numbers: installed cost, production, and value of avoided electricity. Here is a worked example for a 1 MWdc rooftop system on an enclosed mall in a typical U.S. market.
| Input | Value | Notes |
|---|---|---|
| System size | 1,000 kWdc | Rooftop, south-facing 10° tilt |
| Installed cost | $1.55/Wdc | NREL / DOE Q1-2024 commercial benchmark |
| Gross cost | $1,550,000 | Before incentives |
| Federal ITC | 30% | Section 48E for commercial solar |
| Net cost after ITC | $1,085,000 | MACRS depreciation adds further value |
| Annual production | 1,300–1,600 MWh | NREL PVWatts, typical U.S. site |
| Electricity value | $0.13/kWh | EIA commercial average |
| Annual savings | $169,000–$208,000 | Self-consumed kWh at retail rate |
| Simple payback | 5.2–6.4 years | Pre-MACRS, pre-demand-charge benefit |
Demand charges add upside. Many commercial tariffs bill $10 to $20 per kW of peak demand. Solar that shaves 100 kW of summer peak saves $12,000 to $24,000 per year beyond the energy savings. Battery storage can increase that demand-charge reduction, but it also extends payback unless the tariff rewards four-hour peaks.
The 30 percent ITC is the largest federal incentive. It applies to systems placed in service under current law and can stack with domestic-content and energy-community bonus adders for eligible projects. MACRS depreciation lets the owner write off 85 percent of the depreciable basis over five years. State and local incentives vary; DSIRE is the standard tracker.
Export value is the biggest sensitivity. If the mall is on a net metering tariff, exports are credited at retail. If it is on net billing, exports may be worth only $0.03 to $0.06 per kWh. The design should right-size the array so that annual exports stay under 10 to 20 percent of production. Oversizing to cover annual load is usually a mistake on a net billing tariff.
For more on commercial solar finance, read commercial solar monitoring ROI metrics and solar installation cost breakdown.
Common Shopping Mall Solar Design Mistakes
The most expensive mistake is designing a mall project the same way you design a warehouse. Malls have people on the roof, tenants in the building, and complex utility bills. Here are the errors we see most often.
Mistake 1: sizing to annual load instead of daytime load. A mall may use 10 million kWh per year, but only 60 percent of that is during solar production hours. An array sized to 80 percent annual offset can export 30 percent of its production if the midday load is low. Always model interval data hour by hour.
Mistake 2: ignoring the roof replacement cycle. Installing solar on a 22-year-old TPO roof is a bet that the membrane will outlast the panels. It rarely does. Either re-roof first or move to carports.
Mistake 3: assuming one inverter per meter. The meter is a billing device. The inverter is an electrical device. A single inverter can serve multiple meters through VNEM, and multiple inverters can serve one meter. Do not let billing topology drive inverter placement.
Mistake 4: treating anchor tenants as passive participants. Anchor tenants often control 40 to 60 percent of the load. If they do not agree to the allocation method, the project stalls. Get their signature early.
Mistake 5: skipping the structural review. A flat roof does not mean it can carry ballast. Older malls may have been designed for lower live loads than current codes require. A structural letter is cheap insurance against a roof collapse or permit rejection.
The contrarian truth is that mall solar is often more profitable when the array is smaller. A right-sized system with high self-consumption, no export losses, and low interconnection cost can deliver a better NPV than a maxed-out roof.
How SurgePV Speeds Up Shopping Mall Solar Design
Commercial mall projects move slowly enough without software friction. SurgePV brings the design, simulation, and proposal workflow into one cloud platform.
- Fast site modeling: Import aerial imagery and draw the roof in minutes. SurgePV’s Clara AI identifies usable areas, pitches, and obstructions automatically.
- Accurate shade analysis: Run hourly shadow analysis across the full year and export shade-loss values by string.
- Load and tariff modeling: Upload interval data and model the mall’s actual load shape against production. The generation and financial tool handles net metering, net billing, demand charges, and incentive stacking.
- Multi-meter allocation: Define tenant shares by kWh, square footage, or custom rules, then export the allocation table for VNEM applications.
- Permit-ready proposals: Generate branded solar proposals with production graphs, financial summaries, and equipment schedules.
Design your next mall solar project in SurgePV
Import the site, model shade, size the array to the load, and build a financial-ready proposal — all in one platform.
Book a DemoNo commitment required · 20 minutes · Live mall project walkthrough
For teams that also need detailed engineering deliverables or PE-stamped permit packages, a solar design and engineering consultancy can extend the workflow without duplicating effort.
Frequently Asked Questions
How do you size a solar system for a shopping mall?
Start with 12 to 24 months of interval meter data for every account. Size the array so that midday solar production matches the mall’s daytime operating load, including common-area HVAC, lighting, and tenant plugs. Then check the export value under local net metering or net billing rules before finalizing the kWp number.
How much does solar cost for a shopping mall in 2026?
Shopping mall rooftop solar costs roughly $1.50 to $2.20 per watt DC for systems above 250 kW. Solar carports cost $2.50 to $4.00 per watt, roughly $0.80 to $1.50 more than rooftop. A 1 MW rooftop system typically costs $1.5 million to $2.2 million before the 30% federal ITC and MACRS depreciation.
What is the best mounting option for shopping mall solar?
Rooftop is cheapest when the roof has 15 or more years of remaining life and adequate structural capacity. Carports unlock parking-lot real estate, provide customer shade, and pair with EV charging. Many mall portfolios use a mix, with rooftop covering base loads and carports supplying visible, lease-friendly capacity.
How do you handle multi-tenant billing for mall solar?
The three main models are master-meter pass-through, virtual net metering (VNEM), and direct submetering. VNEM is cleanest when the utility allows it: one production meter feeds credits to multiple tenant accounts. Master-meter is simpler but requires lease language that lets the owner allocate savings. Direct submetering is most accurate but adds meter hardware and billing complexity.
Do shopping malls still save money with net billing instead of net metering?
Yes, if the array is sized for self-consumption. Malls consume most of their electricity during business hours, so solar production aligns well with load. Net metering at retail rates is best. Net billing pays avoided-cost rates for exports, which can reduce savings by 20 to 40 percent if the array is oversized.
What incentives are available for shopping mall solar in 2026?
Federal incentives include the 30% Investment Tax Credit under Section 48E and 5-year MACRS depreciation. State and local options include net metering, solar renewable energy credits, utility rebates, green bank financing, and property-assessed clean energy programs. DSIRE tracks incentives by state.
What roof condition and structural loading are needed for mall solar?
Engage a structural engineer to review live-load capacity, typically 4 to 6 psf for rooftop solar. A roof within 5 to 10 years of replacement should be re-roofed first, or the project should move to carport. Use non-penetrating ballasted racking on flat roofs where allowed, and keep fire-code setbacks of 6 to 8 feet.
Can shopping mall solar include battery storage and EV charging?
Yes. Battery storage sized at 1 to 3 hours of peak load shifts midday solar into evening demand and reduces demand charges. EV charging pairs naturally with solar carports. A Level 2 charger uses 7 to 19 kW, and a DC fast charger uses 50 to 150 kW. Size the electrical service with future chargers in mind.
What are the most common shopping mall solar design mistakes?
The most common mistakes are sizing to annual load without checking daytime self-consumption, ignoring roof replacement timing, and accepting net billing that pays avoided-cost export rates. Other errors include using residential design rules, skipping structural review, and failing to coordinate with anchor tenants on leased properties.
How long does a shopping mall solar project take from feasibility to commissioning?
A typical mall solar project takes 10 to 20 months. Feasibility and energy audit take 1 to 2 months. Lease or ownership approval and financing close in 2 to 4 months. Design and permitting run 2 to 4 months. Utility interconnection approval takes 3 to 6 months. Construction lasts 2 to 4 months.
