Inverters are the core power-electronics devices that convert the Direct Current (DC) produced by solar panels into Alternating Current (AC) used by homes, businesses, and the utility grid. They regulate voltage, synchronize with the grid, manage safety protocols, monitor performance, and ensure the solar system operates efficiently under changing irradiance and environmental conditions.

In every solar PV system—residential, commercial, or utility-scale—the inverter determines how power flows, how safely it is delivered, and how effectively the system responds to faults, shading, or energy storage requirements. Modern inverters also support advanced grid functions, monitoring, and performance optimization, making them one of the most critical components in solar design workflows across platforms like Solar Designing and shading tools such as Shadow Analysis.

• Inverters convert DC → AC, enabling solar energy to power buildings and feed the grid.
• They perform MPPT, safety management, monitoring, and grid synchronization.
• Different inverter types fit different project scales and shading conditions.
• Correct inverter sizing, voltage matching, and string design are critical for system performance.
• Modern solar workflows rely on inverter intelligence to optimize output and ensure compliance.

What Are Inverters?

An inverter is an electrical device that transforms variable DC power from solar panels into stable AC power suitable for building loads and grid export. Beyond simple conversion, inverters now function as intelligent energy-management hubs capable of:

• MPPT optimization
• Grid synchronization
• Rapid shutdown compliance
• Voltage and frequency regulation
• Monitoring and fault detection
• Battery integration
• Performance reporting

Inverters are essential for system safety, reliability, and code compliance. Related foundational concepts include AC (Alternating Current),

Stringing & Electrical Design, and

Inverter Sizing.

How Inverters Work

1. Receive DC from Solar Panels

Solar modules output variable DC based on sunlight intensity.

2. Maximum Power Point Tracking (MPPT)

The inverter automatically finds the voltage and current combination that yields the highest power output.

See: Maximum Power Point Tracking (MPPT).

3. DC Power Conversion

The inverter converts DC input into a clean, sinusoidal AC waveform using power electronics.

4. Grid Synchronization

It matches the grid’s:

• Voltage
• Frequency (50/60 Hz)
• Phase

This ensures safe and stable interconnection.

5. Safety & Rapid Shutdown

Modern inverters comply with NEC 690 requirements for rapid shutdown and ground-fault protection.

6. Performance Monitoring

Inverters collect and transmit data for system monitoring, commissioning, and troubleshooting.

Types / Variants of Solar Inverters

1. String Inverters

The most common type.

Multiple modules connect into strings before feeding a single inverter.

Best for:

Residential, commercial, and some large-scale systems.

2. Microinverters

One microinverter per panel.

Increases reliability and shading tolerance.

Best for:

Complex roofs, shaded roofs, small residential systems.

3. Central Inverters

Large power blocks used in utility-scale solar farms.

Best for:

5 MW+ sites, utility-scale ground mounts.

4. Hybrid / Battery Inverters

Support both solar and energy storage.

Enable backup power and dynamic load shifting.

5. Power Optimizer Systems

DC optimizers attach to each module, paired with a centralized inverter.

Improves performance under mismatch or shading.

How Inverters Are Measured

1. AC Output Power (kW)

Defines how much power the inverter can continuously deliver.

2. DC Input Voltage Range

Critical for string design.

Ensures panels operate within the MPPT window.

3. MPPT Tracking Range

Determines optimal voltage for maximum performance.

4. Efficiency (%)

Modern inverters achieve:

• 97%–99% peak efficiency
• 96%+ weighted efficiency

5. DC/AC Ratio

System designers often oversize DC relative to AC capacity.

Typical: 1.1–1.3.

6. THD (Total Harmonic Distortion)

Indicates power quality. Lower is better (<3%).

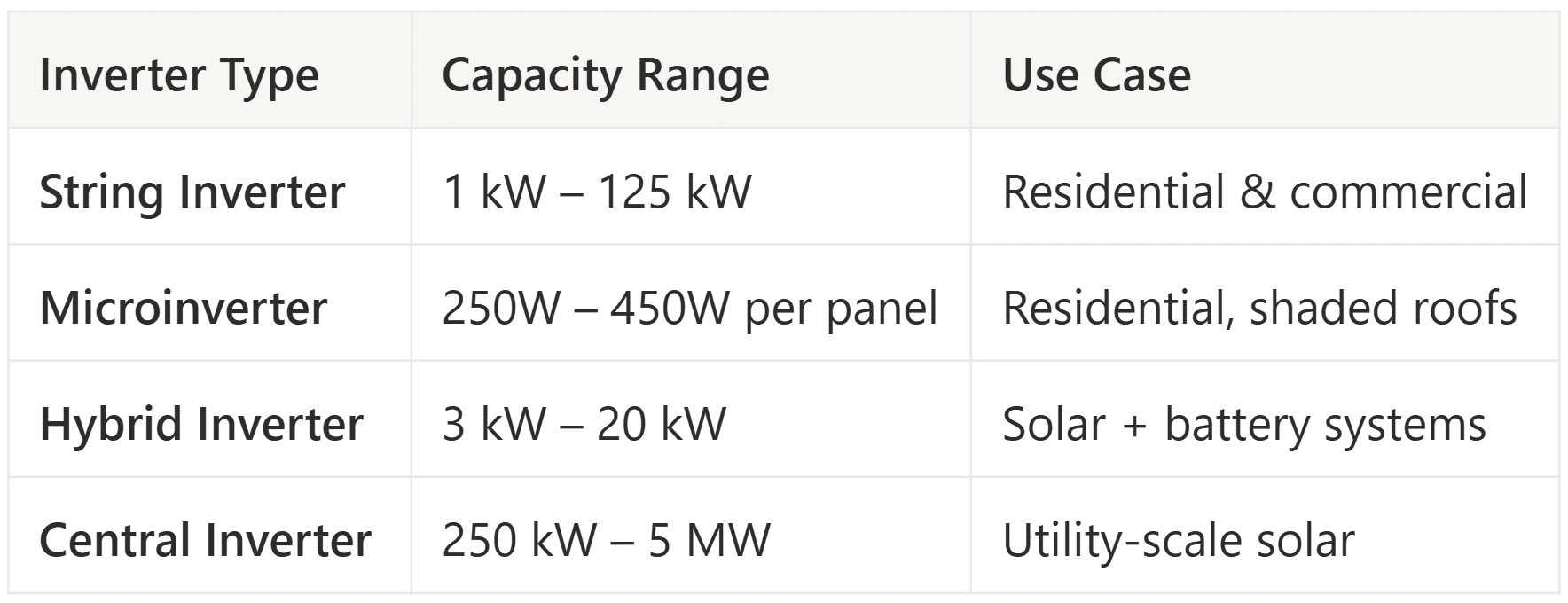

Typical Values / Ranges

Practical Guidance for Solar Designers & Installers

1. Match inverter voltage with string design

Your strings must stay within the inverter’s MPPT voltage window.

See Stringing & Electrical Design.

2. Check cold-weather open-circuit voltage

Panels produce higher voltage in cold conditions—avoid exceeding inverter max input voltage.

3. Choose the right inverter type for the site

• Complex roofs → Microinverters
• Large roofs → String inverters
• Utility-scale → Central inverters

4. Evaluate shading before selecting inverter type

Use Shadow Analysis for accurate shading losses.

5. Size properly using DC/AC ratio

Oversizing improves production but must stay within inverter tolerance.

See Inverter Sizing.

6. Ensure compliance with rapid shutdown rules

Critical for rooftop PV safety and NEC adherence.

7. Use design software for optimal placement

SurgePV’s Solar Designing helps plan inverter placement, routing, and load center integration.

Real-World Examples

1. Residential Rooftop System

A 7 kW system uses a 6 kW hybrid inverter with integrated MPPT and battery-ready inputs.

The inverter controls grid export, performs rapid shutdown, and enables backup power.

2. Commercial System (Flat Roof)

A 250 kW design uses eight 30 kW three-phase string inverters.

Spreading inverters across the roof reduces voltage drop and improves reliability.

3. Utility-Scale Solar Farm

A 50 MW site uses central inverters operating at medium voltage.

The inverters manage grid support functions, reactive power, and SCADA reporting.
