Inverter Sizing

Answer: Inverter sizing selects the AC capacity and electrical input configuration appropriate for a solar array, site and connection requirements. It includes cold open-circuit voltage, operating voltage, usable and short-circuit current limits, MPPT allocation and manufacturer-approved equipment combinations. A DC/AC power ratio alone cannot confirm compatibility, safety, annual yield or utility acceptance.

What inverter sizing includes

An inverter needs more than enough nominal watts. The design must fit its input limits, supported connection arrangement and AC operating requirements. Selecting capacity and arranging strings are related decisions, but one does not replace the other.

Start with the exact module and inverter models, regional manuals and equipment revisions. Record module power, Voc, Vmp, Isc, Imp and the applicable temperature coefficients. Obtain site design conditions and the governing electrical requirements. Temperature-corrected module values use the relevant cell-temperature assumptions and calculation method; ambient weather records are inputs, not a substitute for every operating cell temperature.

The output is a documented equipment selection and configuration for competent technical review, rather than a universal sizing ratio.

The electrical compatibility checks

An inverter may specify different limits for usable current and short-circuit current. For example, SMA’s STPxxx60 DC-input documentation lists them separately and also distinguishes its general MPP voltage range from the range for rated power. These fields are not interchangeable. Use the exact equipment documentation, rather than carrying this model family’s numbers into another design.

For parallel strings, evaluate both normal operation and the required short-circuit design case. Apply the factors, tolerances and assumptions required by the relevant manufacturer and governing rules. Passing an operating-current check does not demonstrate that a short-circuit limit or connector rating is satisfied.

Series, parallel and MPPT allocation

With matched conventional modules in series, their voltages add; string current does not multiply by the module count. With matched strings in parallel, currents add while the shared operating voltage is constrained by their combined electrical behavior.

Different module types, string lengths, orientations or shade profiles require careful review of the resulting operating point and the manufacturer’s permitted arrangement. For example, the Sunny Boy Smart Energy US-50 module-input requirements specify equal module counts when two strings share an input, alongside voltage and connector-current requirements. This is a family-specific instruction, not permission for every other inverter topology.

Multiple connectors do not necessarily mean multiple independent MPPT channels. Draw the actual tracker/input arrangement and check shared limits. Use the stringing and electrical design record to keep that allocation clear.

A hypothetical configuration calculation

Assume 24 illustrative modules, each rated at 420 W, arranged as two matched strings of 12 modules. Also assume the following module values solely for arithmetic:

• Corrected cold Voc: 45 V per module.
• Operating Vmp at one specified condition: 35 V per module.
• Imp at that condition: 12 A.
• Unadjusted Isc: 13 A.

The nameplate array capacity is 24 × 420 = 10,080 W DC.

For each series string, the illustrative cold Voc is 12 × 45 = 540 V; the stated operating Vmp is 12 × 35 = 420 V. If the two strings are connected in parallel to one permitted input arrangement, the illustrative operating current is 2 × 12 = 24 A and the unadjusted short-circuit current is 2 × 13 = 26 A.

This is not an approved design. The inputs are invented and no inverter has been selected. The 26 A sum excludes any required design adjustments. Voltage ranges at other operating conditions, module tolerances, connector limits, protections and all applicable requirements still need review. Moving the strings to separate independent inputs changes which limits apply; it does not remove the checks.

Selecting AC power capacity

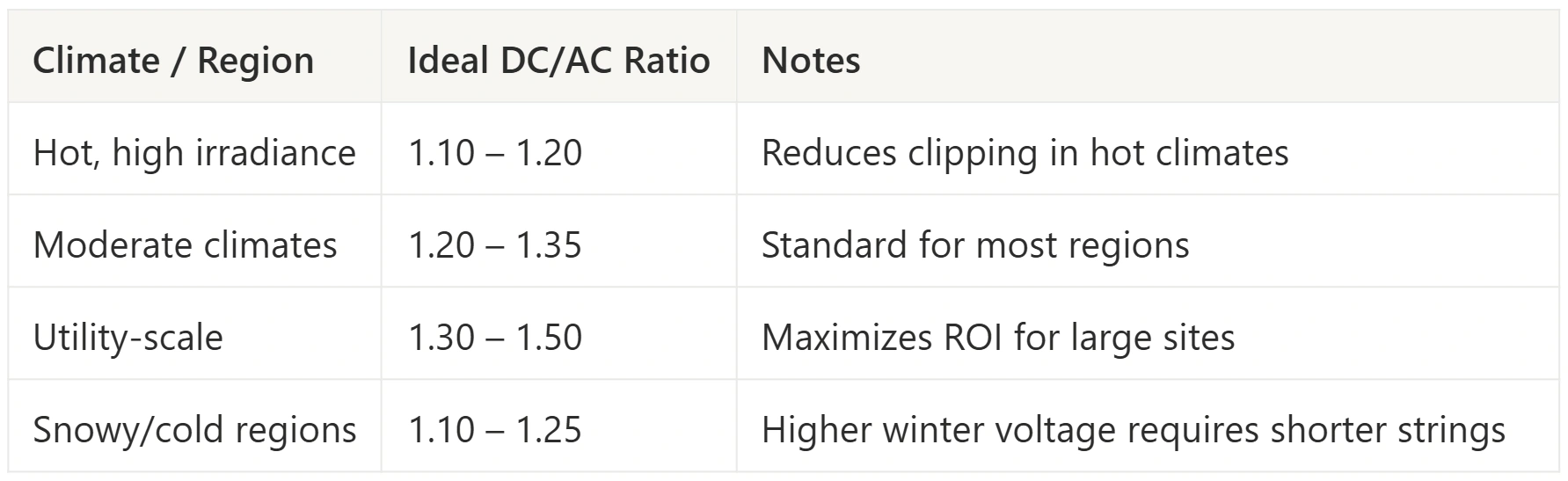

Inverter loading ratio describes DC nameplate capacity divided by nominal AC capacity. It is useful for comparing candidates, but it is not an electrical acceptance threshold.

A smaller AC capacity can increase inverter clipping under some operating conditions. A larger capacity changes cost and the loading profile. The annual tradeoff depends on the array, weather, equipment curves, limits and economics; neither “bigger is better” nor a fixed undersizing percentage resolves it.

SAM’s detailed PV system-design documentation treats module counts, string configuration, inverter selection and voltage limits as linked modeling inputs. Compare candidate production and loss results after compatibility checks. A simulation that models energy performance does not replace manufacturer approval or electrical design review.

Architectures and future changes

Microinverters require exact module-to-input compatibility and AC branch/system checks. Optimizer systems require the optimizer/inverter combination and manufacturer-specific string rules; conventional module-string arithmetic may not describe their controlled output.

For hybrid/storage equipment, review supported batteries, charge/discharge power, operating modes and any shared AC power limits. Backup capacity, surge capability and permitted simultaneous flows are model-specific. Do not assume adding PV and battery nameplates gives the available AC output.

Re-run the checks after changing modules, inverter variants, optimizers, input allocation or future expansion plans. Preserve the accepted equipment schedule and calculation revision in the project handoff. When evaluating solar design software, ask which checks and limits its workflow covers and which remain for the designer.

Frequently asked questions

Must the inverter rating equal the panel capacity?

No. DC module nameplate power and inverter AC rating describe different quantities. Select AC capacity using compatible equipment, the operating profile, connection limits and the project tradeoff; there is no universal ratio that approves every system.

Can I compare string Isc with the maximum usable input current?

Do not treat those as the same check. Use the stated operating-current and short-circuit-current limits and their applicable design procedures. Check the limits at every relevant input and component boundary.

Does inverter sizing establish code compliance?

No. It is part of the design. The applicable jurisdiction, adopted code edition, utility rules and exact installation determine connection, protection and other requirements. A generic busbar percentage or rapid-shutdown statement cannot certify the project.
