Hybrid Inverter

A hybrid inverter is a type of solar inverter that can manage both solar PV power and battery storage within a single integrated unit. Unlike standard grid-tied inverters that only convert solar-generated DC into AC for household use, hybrid inverters can also charge batteries, discharge stored energy, supply backup power during outages, and intelligently manage energy flows between the solar array, the grid, and connected loads.

Hybrid inverters simplify system design, reduce hardware complexity, and enable homeowners and businesses to maximize self-consumption, lower electricity bills, and maintain essential loads during grid failures. They are commonly used in residential, C&I hybrid systems, and microgrid applications and are becoming a core component in advanced solar design workflows, especially through tools like Solar Designing.

Key Takeaways

A hybrid inverter manages solar, battery storage, and grid power within one device.
Enables backup power, peak shaving, and energy self-consumption.
Supports both AC- and DC-coupled configurations.
Essential for solar-plus-storage systems across residential and commercial markets.
Increasingly central to modern solar design workflows and energy management strategies.

What Is a Hybrid Inverter?

A hybrid inverter (also called a battery inverter, multi-mode inverter, or hybrid solar inverter) is a device that combines the functionality of:

A solar inverter
A battery inverter/charger
A smart energy management system

The hybrid inverter coordinates power flows in real time by determining:

When to use solar directly
When to charge batteries
When to discharge batteries
When to draw power from the grid
When to export excess energy

This makes hybrid inverters ideal for solar-plus-storage systems, time-of-use rate optimization, backup energy applications, and homes seeking grid independence.

Related foundational concepts include Inverters, Battery Storage, and Load Analysis.

How a Hybrid Inverter Works

Hybrid inverters manage multiple power inputs using an internal smart controller.

1. Solar Input (DC from PV Array)

Solar panels send DC to the inverter, where it is converted to AC for immediate use or fed into battery storage.

2. Battery Charging and Discharging

The hybrid inverter charges batteries using excess solar production or low-cost nighttime grid power.

It discharges the battery when:

Solar production is low
Electricity rates are high
Backup power is needed

3. Grid Interaction

Hybrid inverters synchronize with the utility grid and can:

Import grid power
Export surplus solar
Perform peak shaving
Participate in net metering programs

4. Backup Power Mode

During outages, the hybrid inverter automatically switches to backup mode and powers essential circuits—unlike standard inverters, which shut down during outages.

5. Smart Energy Management

The inverter uses internal logic to optimize energy flows based on:

Battery state of charge
Load demand
Time-of-use pricing
Weather conditions
PV production forecasts

Hybrid inverters are often used alongside design and planning tools such as the Solar Project Planning Hub.

Types / Variants of Hybrid Inverters

1. Single-Phase Hybrid Inverters

Common in residential homes, typically 3–10 kW.

2. Three-Phase Hybrid Inverters

Used in C&I projects, capable of supporting larger loads.

3. AC-Coupled Hybrid Inverters

Integrate with existing solar systems, with batteries connected on the AC side.

4. DC-Coupled Hybrid Inverters

More efficient for new installations—batteries charge directly from solar DC.

5. Off-Grid Hybrid Inverters

Provide complete autonomy from the grid, often in remote areas or microgrids.

How Hybrid Inverters Are Measured

Key specifications used in design and engineering include:

Continuous Output Power (kW)

Defines the load the inverter can support continuously.

Surge/Peak Power (kVA)

Important for starting motors and large appliances.

Battery Voltage Compatibility

48V or high-voltage (200–600V).

MPPT Channels

Determines PV array flexibility and shading performance.

Round-Trip Efficiency

Measures energy losses during charge/discharge cycles.

Backup Response Time

Typically <20 milliseconds, ensuring uninterrupted power for sensitive loads.

Tools such as the AC Size Calculator and Voltage Drop Calculator help designers dimension these systems accurately.

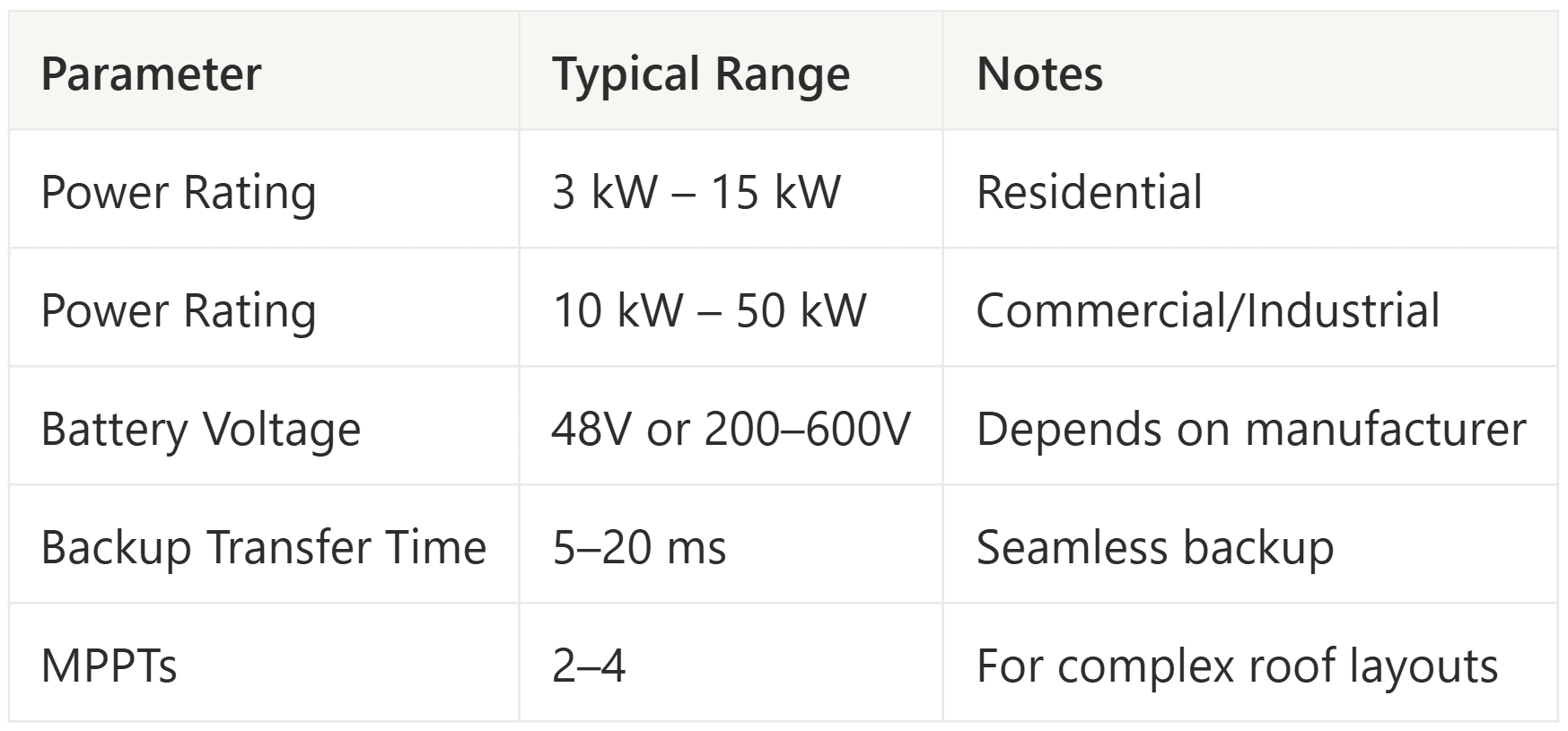

Typical Values / Ranges

Practical Guidance for Designers & Installers

1. Match inverter rating with home or business load

Perform a thorough Load Analysis to size backup circuits properly.

2. Choose AC- or DC-coupled based on retrofit vs. new install

DC-coupled: highest efficiency, ideal for new solar systems
AC-coupled: perfect for adding batteries to existing PV installations

3. Plan for essential and non-essential circuits

Hybrid inverters require a backup subpanel for critical loads.

4. Confirm battery compatibility

Not all hybrid inverters support all battery chemistries and voltages.

5. Factor in time-of-use rate optimization

Hybrid inverters help reduce costs by storing solar when rates are low and discharging when rates are high.

6. Use a design tool capable of hybrid system modeling

Platforms like Solar Designing help map PV arrays, stringing, and inverter pairing.

7. Ensure proper ventilation and installation spacing

Overheating reduces inverter lifespan and power output.

Real-World Examples

1. Residential Hybrid System

A homeowner installs an 8 kW hybrid inverter with a 10 kWh battery.

During the day, solar powers the home and charges the battery.

At night, stored energy covers evening loads, lowering grid consumption.

2. Small Commercial Hybrid Installation

A retail store uses a 20 kW three-phase hybrid inverter with a 25 kWh battery.

The system performs peak shaving during high-demand periods, reducing electricity costs.

3. Off-Grid Cabin System

A remote cabin uses a 5 kW hybrid inverter paired with solar and lithium batteries.

The system provides full power independence without any grid connection.
