DC-Coupled System

A DC-coupled system is a solar + storage architecture where solar panels and batteries share the same DC bus, allowing energy to flow directly between the PV array and the battery without passing through an inverter first. This design reduces conversion losses, improves round-trip efficiency, and enables batteries to store excess solar energy that would otherwise be clipped or exported at low value.

DC-coupled systems are widely used in residential, commercial, and increasingly utility-scale projects because they improve self-consumption, maximize battery charging from solar production, and offer superior performance when paired with smart charge controllers and hybrid inverters.

This architecture is especially effective when paired with advanced solar design workflows and performance tools like Solar Designing and shading optimization using Shadow Analysis.

Key Takeaways

  • A DC-coupled system connects solar panels and batteries on the DC side, improving efficiency and capturing clipped energy.
  • DC-coupling offers higher round-trip efficiency than AC-coupling.
  • Ideal for self-consumption, load shifting, demand reduction, and backup power.
  • Works best with hybrid inverters and optimized PV layouts.
  • Advanced tools like SurgePV enable optimized design, shading analysis, and inverter configuration for DC systems.

What Is a DC-Coupled System?

A DC-coupled system connects solar panels and battery storage on the DC side of the inverter, meaning:

  • The PV array feeds DC power into a charge controller.
  • The charge controller manages the battery bank.
  • The inverter converts AC only when energy is used or exported.

This is different from an AC-coupled system, where the battery sits on the AC side and requires multiple conversions.

Benefits include:

  • Higher round-trip efficiency
  • Better use of clipped energy
  • Faster battery charging
  • Smoother integration with hybrid inverters
  • Reduced BOS equipment

Related technical concepts include Inverters, Stringing & Electrical Design, and DC/AC Ratio.

How a DC-Coupled System Works

1. Solar panels produce DC electricity.

This energy flows through strings to a charge controller or hybrid inverter input.

2. Energy moves directly to a charge controller.

The charge controller regulates battery charging, protects against over-voltage, and ensures safe state-of-charge levels.

3. Batteries are charged using DC power.

No DC → AC → DC conversion is needed, reducing losses.

4. Inverter converts energy to AC only when needed.

AC conversion happens for:

  • Home or business loads
  • Grid export
  • Backup power delivery

5. Monitoring software tracks battery and solar flows.

Performance tracking engines and layout automation tools like Solar Designing help engineers evaluate optimal DC sizing, clipping reduction, and battery-charge potential.

Types / Variants of DC-Coupled Systems

1. Hybrid Inverter DC-Coupled Systems

The most common design in residential & small commercial projects.

A single hybrid inverter manages PV + battery on the same DC bus.

2. Centralized DC-Coupled Systems

Used in commercial and utility-scale PV plants with large central inverters.

3. DC-Optimizer-Based Systems

MLPE devices regulate each module, improving battery charging efficiency and reducing mismatch losses.

4. High-Voltage Battery DC-Coupled Systems

Modern lithium-ion banks operate at high DC voltage for greater efficiency and reduced wiring losses.

How DC-Coupled Systems Are Measured

1. Round-Trip Efficiency (%)

Measures how much energy is retained after charging and discharging the battery.

Typical values: 90–96%

2. DC/AC Ratio

Higher DC/AC ratios increase clipped energy availability for battery charging.

Typical DC/AC ratio for DC-coupled: 1.3–1.6

3. Battery Charge Controller Voltage

Determines compatibility between PV strings and battery chemistry.

4. Battery Capacity (kWh)

Determines how much excess DC energy can be captured.

5. System Voltage (DC Bus Voltage)

Higher voltages (300–600V+ DC) improve efficiency and reduce wire size.

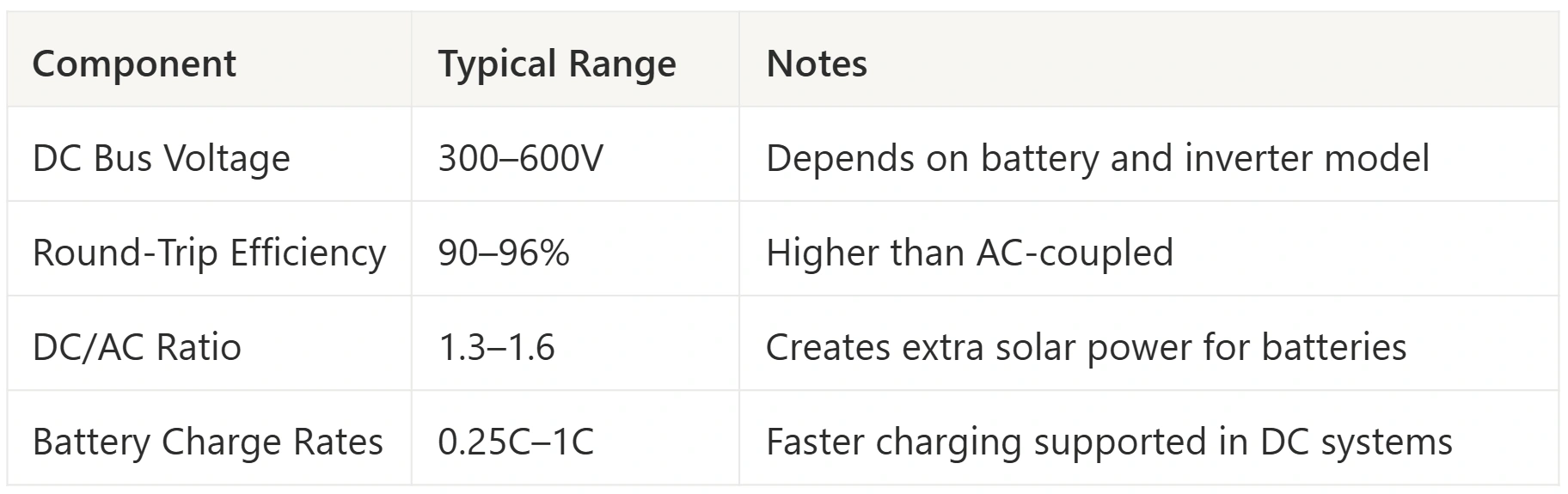

Typical Values / Ranges

Practical Guidance for Solar Designers & Installers

1. Size batteries to match DC oversizing (DC/AC ratio).

A larger PV array increases battery-charging opportunities.

2. Use shading tools to improve DC availability.

Tools like Shadow Analysis ensure high-yield zones feed the battery efficiently.

3. Use hybrid inverters with adequate DC inputs.

Multiple MPPT channels improve battery charging and array segmentation.

4. Manage voltage windows carefully.

Ensure string voltages match inverter MPPT ranges under cold and hot conditions.

5. Use Auto-Design and layout engines to maximize productive DC.

Tools like Solar Designing optimize array placement, improving DC availability.

6. Consider backup loads and grid rules.

DC-coupled systems excel in self-consumption and backup scenarios, especially when paired with critical load panels.

7. Provide installers with a clear wiring diagram.

DC system wiring needs accurate documentation to ensure safe battery/inverter integration.

Real-World Examples

1. Residential Home Backup System

A 10 kW PV array charges a 13.5 kWh battery directly via DC coupling.

The system captures clipped energy during peak sun hours, improving storage utilization by 12–18%.

2. Commercial DC-Coupled Rooftop

A 200 kW solar system with a 120 kWh battery uses a hybrid inverter to capture surplus DC, reducing demand charges and improving ROI.

3. Utility-Scale Solar + Storage Farm

A developer uses centralized DC-coupled inverters to charge multi-MWh battery banks during peak irradiance, extending plant output into evening hours.
