IP Rating
An IP Rating (Ingress Protection Rating) is an international standard that defines how well an electrical device is protected against dust and water. In the solar industry, IP ratings are essential for evaluating the durability, safety, and long-term environmental resistance of components such as inverters, junction boxes, combiner boxes, connectors (such as MC4), monitoring devices, and mounting accessories.
Because solar equipment is installed outdoors and exposed to rain, dust, humidity, and temperature cycles, IP ratings help solar designers, EPCs, installers, and engineers determine whether a device can withstand harsh environmental conditions. An accurate understanding of IP ratings directly impacts system reliability, maintenance schedules, and warranty performance.
Key Takeaways
- An IP Rating defines a device’s protection level against dust and water.
- High-IP equipment is essential for outdoor solar installations.
- IP65–IP67 is standard for inverters, junction boxes, and connectors.
- Choosing the correct IP rating improves reliability, safety, and long-term performance.
- IP ratings play a critical role in equipment selection during solar design and engineering workflows.
What Is an IP Rating?
An IP Rating is a two-digit code that specifies the level of protection an enclosure provides against:
- Solid particles (dust, debris, sand, insects)
- Liquids (water spray, rainfall, high-pressure jets, immersion)
The two digits represent:
- First digit (0–6): Protection against solids
- Second digit (0–9): Protection against water
For example:
- IP65 = Dust-tight + protected against water jets
- IP67 = Dust-tight + protected against temporary immersion
In solar PV systems, IP ratings help determine whether an inverter can be mounted outdoors, whether junction boxes can handle rain exposure, or whether connectors can withstand high-moisture environments.
Related concepts include:
How an IP Rating Works
1. Testing for Solid Particle Protection
The device is exposed to dust chambers, small particulates, and airflow conditions to measure ingress.
2. Testing for Water Protection
Tests include dripping water, splashing, spraying, pressure jets, and full immersion at specific depths/times.
3. Assigning the IP Code
After testing, the device receives a two-digit code that reflects its proven level of protection.
4. Application in Real-World Solar Installations
IP ratings determine:
- Whether an inverter can be roof-mounted
- If a junction box can be placed horizontally
- If wiring enclosures can withstand monsoon seasons
- Whether equipment can operate in coastal, desert, or industrial zones
Solar installers rely on IP ratings to ensure compliance, safety, and long-term durability.
Types / Variants of IP Ratings Used in Solar
Common IP Ratings for Solar Components
IP54
Limited dust protection; protected against water splashes.
Used in sheltered indoor environments.
IP65
Fully dust-tight; protected from low-pressure water jets.
Common for outdoor inverters and junction boxes.
IP66
Dust-tight; protected against powerful water jets.
Ideal for coastal and high-rainfall regions.
IP67
Dust-tight; protected against temporary immersion.
Frequently used for connectors and ground-mounted components.
IP68
Dust-tight; protected against continuous immersion.
Used for underwater cable joints or extreme environments.
How IP Rating Is Measured
1. Solid Protection Level (0–6)
- 0: No protection
- 1–4: Increasing protection from objects >50mm to >1mm
- 5: Dust-protected
- 6: Completely dust-tight
2. Water Protection Level (0–9)
- 0: No protection
- 1–4: Dripping/splashing
- 5–6: Low/high pressure jets
- 7: Temporary immersion
- 8: Continuous immersion
- 9: High-pressure, high-temperature jets
3. Environmental Suitability
The correct IP rating depends on:
- Rainfall exposure
- Dust levels
- Humidity
- Installation angle and orientation
- Ventilation needs

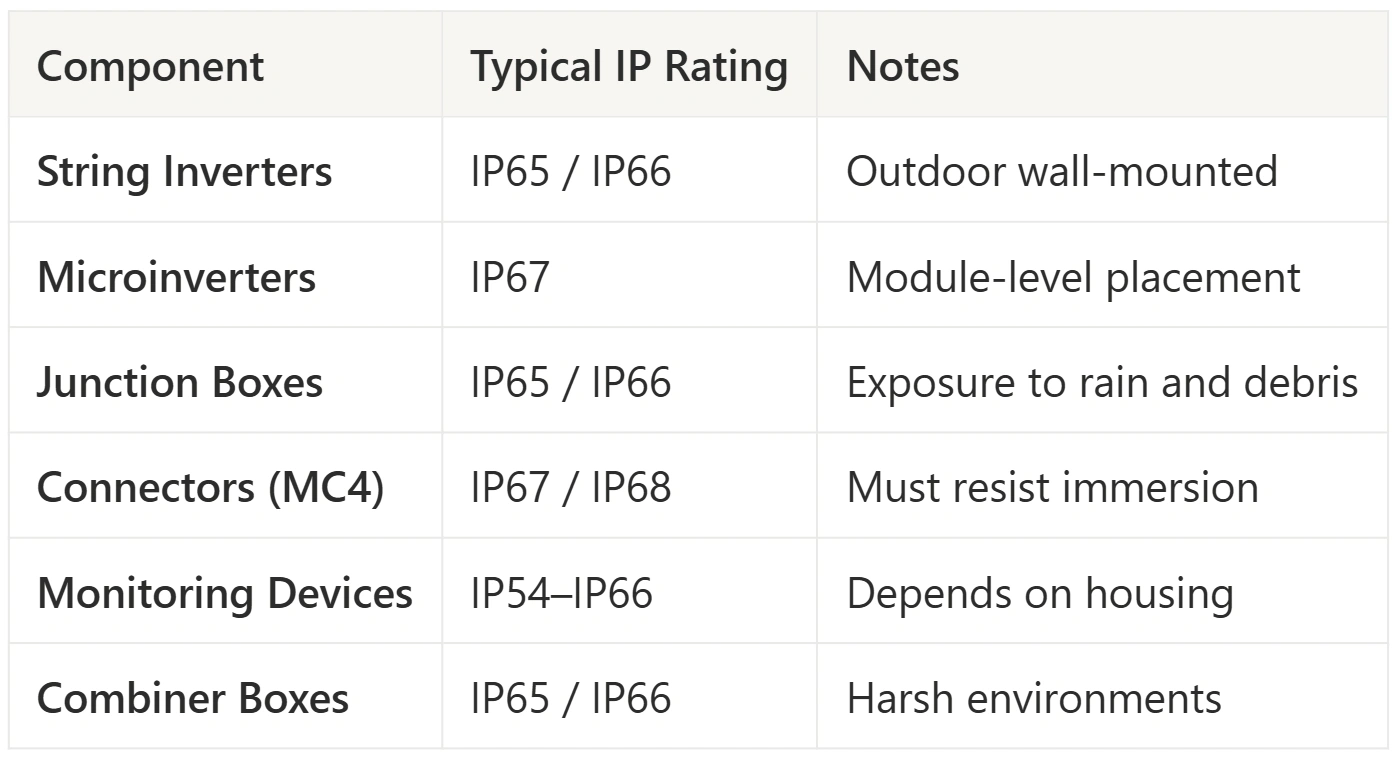

Typical Values / Ranges for PV Components
These values help inform design choices, especially during Solar Designing, electrical planning, and equipment procurement.
Practical Guidance for Solar Designers & Installers
1. Choose the right IP rating for the installation environment
Hot climates, dusty zones, or monsoon-heavy locations require IP66 or higher.
2. Avoid installing low-IP equipment outdoors
Indoor-rated devices fail quickly when exposed to moisture or dust.
3. Protect connectors and junction boxes
Use IP67 or IP68 connectors to avoid water ingress during heavy rain.
4. Plan inverter placement carefully
Use tools like Solar Designing to test optimal inverter locations based on shading, ventilation, and weather exposure.
5. Verify compliance with AHJ rules
Environmental exposure requirements may vary by jurisdiction—see AHJ Compliance.
6. Always consider maintenance access
High-IP devices often need airflow; avoid boxing them into airtight enclosures.
Real-World Examples
1. Residential Rooftop System
A string inverter with IP66 rating is mounted outdoors on a south-facing wall, ensuring protection during monsoon season.
2. Commercial Flat Roof Installation
IP65 combiner boxes and IP67 MC4 connectors withstand dust and heat on an industrial rooftop with minimal failure risk.
3. Utility-Scale Solar Farm
IP67-rated monitoring sensors and junction boxes ensure reliability across thousands of modules exposed to rain, dust storms, and irrigation cycles.
