Inverter Clipping
Inverter clipping is a performance condition in solar PV systems where the DC power coming from the solar array exceeds the inverter’s maximum AC output capacity. When this happens, the inverter “clips” or limits the output to its rated AC power, resulting in a flat-topped production curve during peak sunlight hours.
Clipping is not a system failure—it is a normal and often intentional part of solar design. Many systems are purposely engineered with a higher DC/AC ratio to improve morning/evening production, maximize annual yield, and lower cost per watt. However, excessive clipping can lead to avoidable energy losses.
Understanding inverter clipping is essential for solar designers, installers, EPC firms, and performance modelers working with automated workflows inside tools such as Solar Designing and Shadow Analysis.
Key Takeaways
- Inverter clipping happens when solar DC output exceeds the inverter’s AC capacity.
- It is normal and often beneficial when designing systems with higher DC/AC ratios.
- Proper design minimizes unnecessary energy loss while improving ROI.
- Clipping varies based on irradiance, temperature, shading, and inverter selection.
- Tools like SurgePV help designers model clipping early and create smarter system designs.
What Is Inverter Clipping?
Inverter clipping occurs when the solar panels produce more DC power than the inverter can convert to AC. Since every inverter has a maximum AC output limit (its nameplate rating), any additional DC energy beyond that limit is simply not used.
This appears as a “flat top” on the system production graph—indicating the inverter is operating at full capacity and discarding the excess.
Related design concepts include Inverter Sizing, DC/AC Ratio, and Performance Ratio.
How Inverter Clipping Works
1. Solar panels produce DC power.
On sunny days, production can exceed the inverter’s operating capacity—especially during noon hours.
2. DC power is fed into the inverter.
If the DC input is within the inverter’s capacity, all energy is converted into AC.
3. When DC power > inverter limit:
The inverter restricts the output to its maximum AC rating.
4. Excess power is “clipped.”
This excess is simply not delivered to the grid or the building.
5. The clipping curve appears in monitoring data.
Monitoring systems show a plateaued output curve during peak hours.
Clipping is strongly influenced by system design decisions such as DC/AC ratio, module orientation, temperature, shading, and inverter selection.
Types / Variants of Clipping
1. Power Clipping (Standard Clipping)
Occurs when array power exceeds inverter AC rating.
2. Thermal Clipping
Happens when the inverter overheats and reduces output to protect internal components.
3. Voltage Clipping
When DC voltage exceeds inverter limits, typically due to cold temperatures or incorrect stringing.
See Stringing & Electrical Design for string voltage considerations.
4. High-Irradiance or Albedo-Induced Clipping
Bright conditions—including snow reflection—increase DC input beyond expected design values.
How Inverter Clipping Is Measured
1. DC/AC Ratio
The ratio between array DC size and inverter AC rating:
DC/AC Ratio = PV Array Size (kWdc) ÷ Inverter Size (kWac)
Typical ranges:
- Residential: 1.1–1.3
- Commercial: 1.1–1.4
- Utility-scale: 1.2–1.5
2. Energy Clipped (kWh)
The difference between DC power available and AC power delivered.
3. Percentage of Energy Lost
Annual clipping should ideally be < 3–5% depending on design goals.
4. Clipping Curve Analysis
Monitoring platforms display clipping as a flat portion at the inverter’s max output.

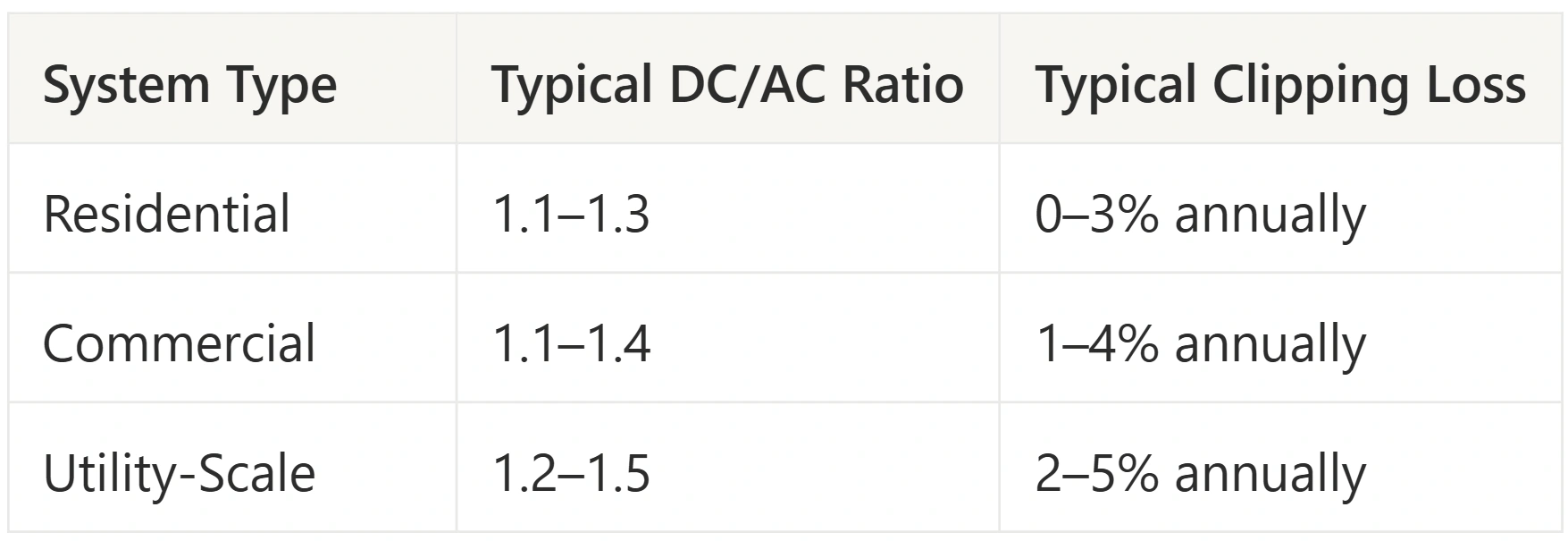

Typical Values / Ranges
Moderate clipping is acceptable and often improves ROI.
Practical Guidance for Solar Designers & Installers
1. Design with the right DC/AC ratio
Oversizing modules increases morning/evening production but adds clipping midday.
Tools such as Solar Designing optimize this balance.
2. Use 3D shading and irradiance models
Clipping is reduced naturally on shaded roofs.
See Shadow Analysis.
3. Avoid excessive DC oversizing
Too much DC beyond inverter limits leads to unnecessary energy loss.
4. Plan for thermal conditions
Hot environments reduce inverter efficiency—ensure adequate ventilation.
5. Monitor system performance post-installation
Identify unexpected clipping due to design errors or inverter configuration.
6. Consider module-level electronics
MLPE solutions can reduce mismatch but do not eliminate inverter clipping.
7. Use performance modeling tools early
Clipping should be evaluated during the system modeling stage using Solar Project Planning Analysis.
Real-World Examples
1. Residential 8 kW System with 6 kW Inverter
Designed with a 1.33 DC/AC ratio.
Clipping occurs 10–20 days per year around noon but increases annual yield by enhancing shoulder-hour performance.
2. Commercial 250 kW Rooftop System
DC array: 300 kW
AC inverter: 250 kW
Clipping estimated at 2.8%—acceptable due to lower LCOE and better morning output.
3. Utility-Scale 10 MW Solar Farm
DC array oversized to 13 MW for higher annual production.
Clipping is intentional and built into financial modeling to reduce cost per delivered kWh.
