Home Solar System
A Home Solar System—also known as a residential solar PV system—is a complete setup that allows a household to generate its own electricity using sunlight. It typically includes solar panels, mounting hardware, inverters, wiring, monitoring systems, and optional batteries for energy storage. These systems are designed to reduce electricity bills, increase energy independence, and support sustainability goals by producing clean, renewable energy directly on the homeowner’s property.
Modern home solar systems benefit heavily from advanced digital tools such as Solar Designing and shading engines like Shadow Analysis, which make system design faster, more accurate, and more cost-effective. Many installers also use automated features such as Auto-Design to generate residential layouts instantly.
Key Takeaways
- A Home Solar System allows a household to generate clean, renewable electricity directly on-site.
- Systems include panels, inverters, mounting structures, wiring, monitoring, and optional batteries.
- Modern design tools dramatically improve layout speed, shading accuracy, and performance modeling.
- Grid-tied, hybrid, and off-grid systems each serve different homeowner needs.
- Proper design increases energy savings, reliability, and long-term ROI.
What Is a Home Solar System?
A Home Solar System is a rooftop or ground-mounted solar installation designed specifically for residential energy needs. It converts sunlight into electricity, which the home uses directly or exports to the grid through net metering. Depending on setup, homeowners may also store excess energy in batteries for nighttime or backup use.
A typical home solar system includes:
- Solar panels (modules)
- Inverter or microinverters
- Racking and mounting hardware
- AC/DC wiring and electrical BOS
- Monitoring and energy reporting tools
- Optional battery storage
Related foundational concepts include Solar Panel, Inverters, and Load Analysis.
How a Home Solar System Works
1. Solar panels convert sunlight into DC power
Panels absorb sunlight and generate direct current electricity.
2. The inverter converts DC → AC power
Homes use AC electricity, so an inverter or microinverters convert power to a usable form.
3. The home consumes solar energy first
The system prioritizes powering household loads.
4. Extra energy is exported to the grid or stored in batteries
Depending on the system setup:
- Exported via net metering
- Stored in batteries for later use
- Routed through a hybrid inverter for backup power
5. Monitoring tracks performance
Monitoring tools show real-time production, consumption, and savings.
Helpful related term: POA Irradiance.
Types / Variants of Home Solar Systems
1. Grid-Tied Solar System
Most common. No batteries.
- Uses the grid as a backup
- Exports surplus electricity
- Lower cost and higher efficiency
2. Hybrid Solar System
Solar + batteries + grid connection.
- Stores energy
- Provides backup during outages
- Reduces reliance on grid power
3. Off-Grid Solar System
Completely independent of utility grid.
- Requires batteries and a generator backup
- Used in remote locations
- More expensive and engineering-intensive
4. Microinverter-Based System
Each panel has its own inverter.
- Higher production on shaded roofs
- Easier to expand
- Better monitoring granularity
5. Ground-Mounted Home Solar System
Installed on land rather than the roof.
- More flexible tilt and orientation
- Great for rural or spacious properties
How Home Solar Systems Are Measured
1. System Size (kW)
Total DC nameplate rating of installed panel power.
2. Annual Energy Production (kWh/year)
Based on irradiance, shading, tilt, and location.
3. Self-Consumption Ratio
Percentage of solar energy used directly in the home.
4. Performance Ratio (PR)
Overall system efficiency—related term: Performance Ratio.
5. Battery Capacity (kWh)
For hybrid/off-grid systems.
6. DC/AC Ratio
Determines inverter clipping and optimization.
Calculate sun angles and tilt using:

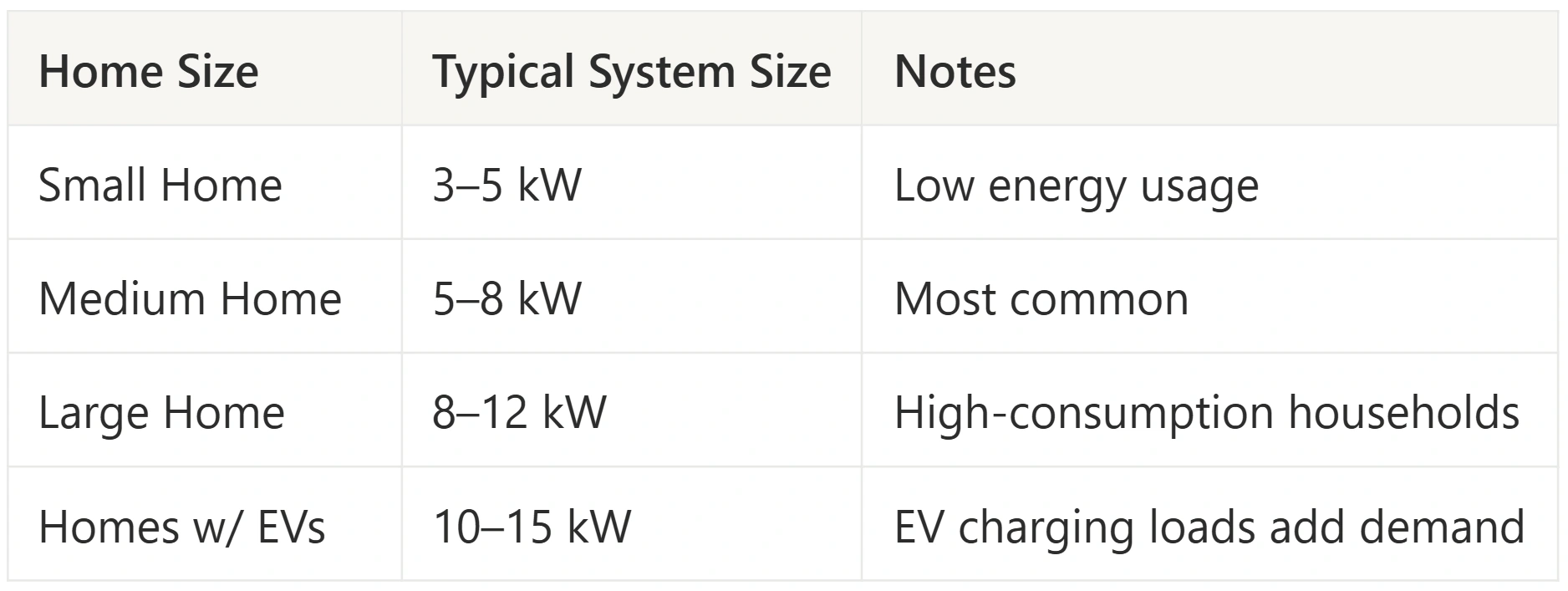

Typical Values / Ranges
Annual production ranges from 4,000 to 18,000 kWh/year depending on geography and system size.
Practical Guidance for Homeowners & Solar Installers
1. Perform a detailed load analysis
Use Load Analysis to size the system accurately.
2. Analyze shading before designing
Use Shadow Analysis to identify shading issues across seasons.
3. Choose the optimal inverter type
Microinverters excel on shaded roofs.
String inverters are ideal for open, uniform surfaces.
4. Consider future energy needs
EVs, heat pumps, or pool systems may require larger system sizing.
5. Ensure AHJ compliance from day one
Setbacks, fire code, and structural requirements vary by location.
6. Use automated design tools for accuracy
Auto-layout tools like Auto-Design generate optimized module placement instantly.
7. Model financial outcomes
Use tools like the Solar ROI Calculator to evaluate long-term savings.
Real-World Examples
1. Typical Suburban Rooftop System
A family installs a 7 kW system with microinverters.
It offsets 90% of their annual electricity usage and reduces bills by 70%.
2. Hybrid Solar System with Battery Backup
A homeowner in an outage-prone region installs a 6 kW system with a 10 kWh battery.
During grid outages, the system runs lights, refrigerator, and critical loads.
3. Off-Grid Cabin System
A rural cabin uses a 4 kW off-grid array with 15 kWh of battery storage.
It powers lighting, refrigeration, and basic appliances entirely from solar.
