Auto-Design
Auto-Design is an advanced feature in solar design software that automatically generates a complete solar PV layout—placing modules, applying setbacks, avoiding obstructions, optimizing orientation, and producing a fully engineered system in seconds. Instead of manually tracing roof planes, measuring shading, or calculating spacing, Auto-Design uses AI, computational geometry, and performance modeling to instantly create a code-compliant, buildable, and energy-optimized solar design.
For solar installers, EPCs, designers, and sales teams, Auto-Design dramatically reduces design time while improving accuracy. It is especially powerful when paired with intelligent platforms like Solar Designing and shading tools such as Shadow Analysis to ensure maximum energy yield and minimal redesign work.
Key Takeaways
- Auto-Design automatically generates a complete solar PV layout using AI and geometry.
- It reduces design time from hours to seconds while maintaining high engineering accuracy.
- Works for residential, commercial, and utility-scale projects.
- Crucial for designing fast, accurate proposals and plan sets.
- Becomes most powerful when combined with shading analysis, inverter design, and AHJ compliance workflows.
What Is Auto-Design?
Auto-Design is the automated process of generating a solar PV system layout using rules, algorithms, and AI models. It identifies the usable installation area, determines optimal panel placement, and creates a complete design that includes:
- Accurate module layout
- Orientation & tilt optimization
- Setbacks and fire code compliance
- Obstruction avoidance
- Automatic stringing
- DC/AC ratio checks
- Energy yield calculations
- Performance simulations
The outcome is a near-instant solar design that reflects engineering best practices and local AHJ requirements.
Key related terms include Solar Layout Optimization, String Map Auto-Generation, and Shading Analysis.
How Auto-Design Works
While each platform uses its own engine, the Auto-Design workflow typically follows these steps:
1. Detect Roof or Terrain Geometry
AI identifies roof edges, ridges, hips, valleys, slopes, or ground boundaries.
2. Apply Setbacks & Exclusions
The software automatically applies fire code pathways, AHJ setbacks, parapet gaps, and mechanical-equipment buffers.
See AHJ Compliance.
3. Perform Shading & Irradiance Checks
The system evaluates shading patterns using simulated sunlight positions or LiDAR data.
For deeper accuracy, see Shading Analysis.
4. Auto-Place Solar Modules
Panels are placed within constraints, prioritizing maximum production, minimal shading, and proper structural alignment.
5. Auto-Generate Electrical String Maps
The system determines how panels should be electrically connected.
See String Map Auto-Generation.
6. Match Inverters & Check DC/AC Ratios
The engine selects compatible inverter configurations—critical for performance and clipping mitigation.
See Inverter Sizing.
7. Run Performance Modeling
Estimated annual production, PR (Performance Ratio), system losses, and irradiance analysis are computed.
Types / Variants of Auto-Design
1. Rooftop Auto-Design (Residential & Commercial)
Automatically generates layouts on pitched or flat roofs.
2. Ground-Mount Auto-Design
Uses terrain, slope, row spacing, and shading analysis to optimize large-scale arrays.
3. Canopy / Carport Auto-Design
Defines usable canopy areas and auto-places modules with correct structural offsets.
4. AI-Based Auto-Design
Learns from previous designs to improve placement efficiency and shading avoidance.
5. Constraint-Based Auto-Design
Follows strict user-defined constraints such as tilt limits, row spacing, azimuth settings, or inverter ratio rules.
How Auto-Design Is Measured
Auto-Design quality is evaluated with engineering metrics such as:
Energy Yield (kWh/kWp)
Higher yield indicates more efficient layout optimization.
Layout Density (%)
How fully the usable area is populated with modules.
Shading Loss (%)
Lower shading loss indicates better placement decisions.
See POA Irradiance.
DC/AC Ratio Accuracy
Ensures proper inverter matching and clipping performance.
Bill of Materials (BOM) Precision
Measured by how accurately Auto-Design generates materials lists for procurement.

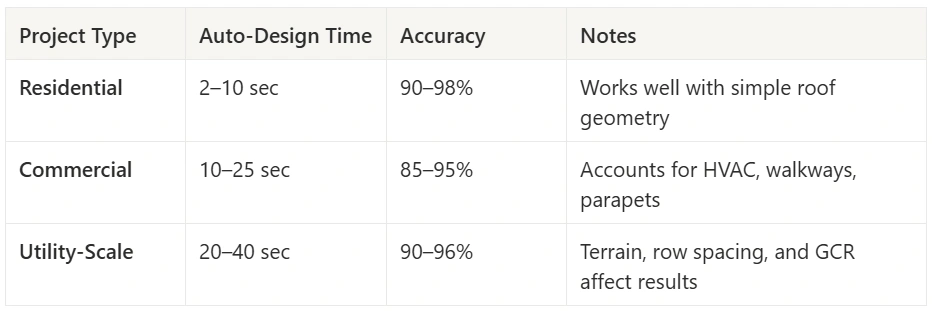

Typical Values / Ranges
Modern AI-driven design tools achieve high accuracy compared to manual engineering layouts.
Practical Guidance for Solar Designers & Installers
1. Treat Auto-Design as a starting point — not the final design
Review engineering constraints, AHJ rules, and structural requirements.
2. Always validate setbacks and fire pathways
See AHJ Compliance.
3. Combine Auto-Design with shading analysis
Use Shadow Analysis to refine boundaries and eliminate shaded modules.
4. Optimize inverter pairing
Auto-Design recommends configurations, but verify DC/AC ratios for your market.
5. Ensure walkway spacing for O&M teams
Commercial roofs require clear service pathways.
6. Use SurgePV to accelerate proposal speed
With Solar Designing and the Solar Proposal & Sales Hub, Auto-Design can instantly produce proposal-ready outputs.
7. Export Auto-Design results into permit workflows
Use Solar Project Planning Hub for plan sets and engineering docs.
Real-World Examples
1. 6 kW Residential Rooftop
Auto-Design analyzes roof planes, applies setbacks, excludes two vents, and places 16 modules in under 5 seconds.
2. 300 kW Commercial Flat Roof
The system identifies mechanical obstructions and walkways, optimizing module density while maintaining safety access.
3. 2 MW Ground-Mount Solar Farm
Terrain slope and shading analysis guide Auto-Design to optimize row spacing and tilt for maximum annual production.
