Grid Export Limitation

Grid Export Limitation refers to a control strategy used in solar PV systems to restrict how much electricity can be exported from the inverter to the utility grid. Many utilities and local authorities impose export caps—sometimes zero export—to protect transformer capacity, avoid backfeeding, maintain voltage stability, and manage local grid constraints.

Modern smart inverters and energy management systems enforce these limits by continuously monitoring power flows and automatically adjusting PV output. This allows solar systems to be installed in areas where traditional interconnection might otherwise be denied.

Grid export limitation is especially important for residential and C&I projects in regions with strict grid policies, making it a vital design element in advanced workflows within tools like Solar Designing and project analysis hubs such as Solar Project Planning & Analysis.

Key Takeaways

Grid export limitation controls how much solar power can be exported to the utility grid.
Utilities impose export caps to manage hosting capacity and prevent backfeed issues.
Smart inverters enforce export limits through real-time monitoring and dynamic power control.
Export limitation enables solar deployment even in constrained grid environments.
Designers must account for utility rules, load profiles, inverter behavior, and potential storage solutions.

What Is Grid Export Limitation?

Grid export limitation is a mechanism that ensures a solar PV system exports no more than a predefined amount of power to the grid. Depending on the rules of the utility provider, export limits may be:

Zero export (no power allowed to flow into the grid)
Partial export (e.g., maximum 1 kW exported)
Capped export (e.g., 50% of inverter capacity)
Dynamic export limits (adjusted based on real-time grid conditions)

The goal is to allow solar installations even in constrained networks by preventing excessive reverse power flow.

Related terms include Inverter Sizing, Smart Inverter, and Load Analysis.

How Grid Export Limitation Works

The system uses real-time monitoring and inverter control to keep export within allowed thresholds.

1. Real-time Power Monitoring

A meter or CT clamps measure:

Solar generation
On-site consumption
Net grid flow

2. Export Limit Calculation

The controller compares net power flow against the allowable limit.

3. Inverter Output Adjustment

If export exceeds the limit, the inverter automatically:

Reduces power output
Adjusts MPPT behavior
Diverts power to loads or storage (if available)

4. Continuous Feedback Loop

The system maintains compliance throughout the day, adapting to load changes, shading, or cloud cover.

For dynamic response scenarios, smart inverters and EMS systems adjust output within milliseconds.

Types / Variants of Grid Export Limitation

1. Zero Export Control

The inverter is not allowed to push any power into the grid.

Common in:

Industrial parks
Weak grid areas
Regions without net metering

2. Partial Export Limitation

The system may export up to a capped value, such as:

1 kW
10% of inverter capacity
A threshold defined by the utility

3. Dynamic Export Limits (Flexible Export)

The export threshold changes throughout the day based on grid conditions.

4. Storage-Assisted Export Limitation

Battery systems absorb excess production to avoid grid export.

See Battery Size Calculator for related design decisions.

How It’s Measured

Grid export limitation involves measuring several electrical values:

Net Export Power (kW)

Calculated as:

Solar Generation – On-Site Load Consumption

Export Limit Threshold

A fixed or dynamic value (e.g., 0 kW or 3 kW).

Inverter Real Power Output

Adjusted to maintain compliance.

Power Factor Control

Some utilities require reactive power support when export is limited.

CT Clamp Accuracy

Essential to calibrate measurement devices correctly.

Typical Values / Ranges

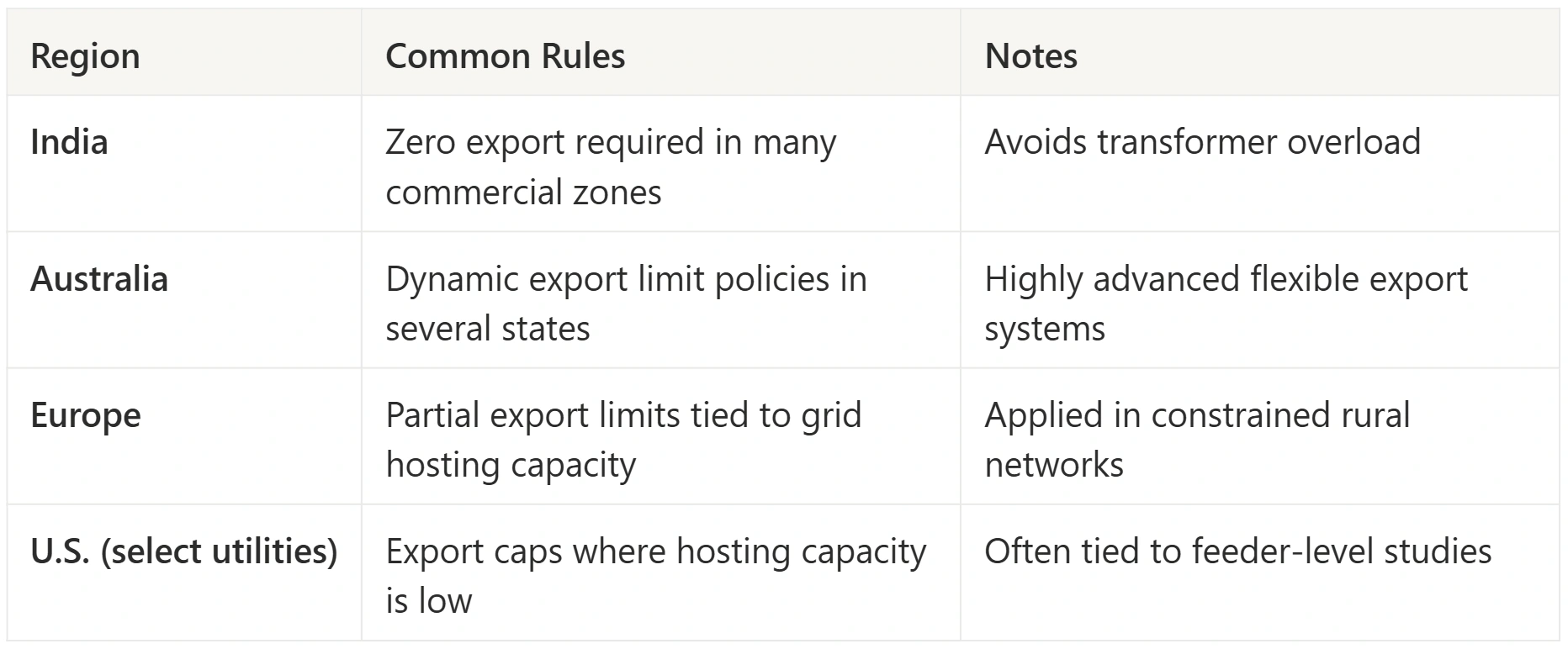

Export limits typically range from 0% to 100% of inverter output, depending on grid allowances.

Practical Guidance for Solar Designers & Installers

1. Confirm export requirements early

Always check the local utility’s interconnection rules before creating a design.

2. Size the inverter strategically

Oversized PV arrays with export limiting may require different DC/AC ratio strategies.

3. Use accurate CT placement

Incorrect measurement leads to compliance failures.

4. Consider adding storage

When export limits are strict, batteries capture excess energy that cannot be exported.

Use the Battery Size Calculator for planning.

5. Model behavior inside design software

Tools like Solar Designing allow simulation-based optimization.

6. Always document export settings

Export-limited systems require explicit settings for permitting and commissioning.

7. Train field teams on compliance

Settings must be locked to prevent accidental reconfiguration.

Real-World Examples

1. Zero-Export Commercial Installation

A factory is located on a weak grid feeder.

Export limitation enables a 150 kW solar system that would otherwise be rejected by the utility.

2. Residential Partial Export Limit

A home with a 5 kW solar system has a 1.5 kW export cap.

The inverter dynamically throttles output when house loads are low.

3. Dynamic Export in a Smart Grid Region

A C&I rooftop system receives flexible export commands from the utility.

The inverter adjusts export minute-by-minute, avoiding curtailment and maximizing local consumption.
