Quick answer
Electrical current that flows in one direction at a constant polarity — produced by solar panels and batteries. DC must be converted to AC (alternating current) by an inverter before it can power most household appliances or be exported to the grid.
Key Takeaways
- Direct current flows in one direction at a constant polarity, unlike AC which reverses direction 50 or 60 times per second
- Solar cells produce DC natively — the photovoltaic effect generates a unidirectional electron flow across the semiconductor junction

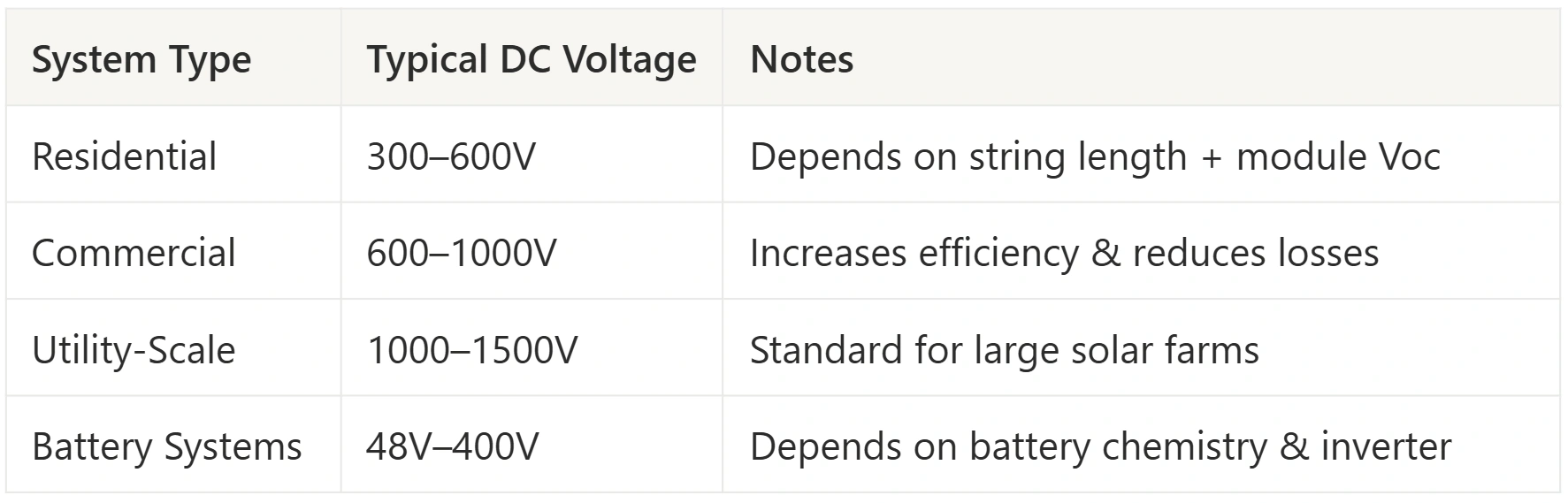

- Residential string voltages typically range from 200–600V DC; commercial systems can reach 1,000–1,500V DC
- An inverter converts DC from the panels into grid-compatible AC before power can supply building loads or export to the utility
- DC arcs are more dangerous than AC arcs because DC has no zero-crossing point, meaning arcs do not self-extinguish
- NEC Article 690 governs DC wiring, disconnects, ground-fault protection, and arc-fault detection in PV systems
What Is Direct Current?
Direct current (DC) is electrical current that flows in a single direction at a constant polarity. In a solar energy system, DC is the native output of every photovoltaic cell. When sunlight strikes the semiconductor material inside a solar panel, it knocks electrons loose in one direction, creating a steady unidirectional current. This DC electricity then travels through wiring to an inverter, which converts it to alternating current (AC) for building use and grid export.
Batteries also store and discharge energy as DC. In systems with battery storage, a charge controller regulates the DC flow between the panels and the battery bank, preventing overcharging and deep discharge.
Thomas Edison championed DC power in the 1880s, but AC won out for grid transmission because it could be stepped up to high voltages for efficient long-distance delivery. In solar energy, DC has made a quiet comeback — every panel on every roof produces it, and the entire industry depends on the DC-to-AC conversion happening reliably at the inverter.
Types of DC Circuits in Solar Systems
PV Source Circuit DC
The DC wiring from individual solar panels to the combiner box. Each string of series-connected panels forms one source circuit. Voltage equals the sum of all panel Voc values in the string, adjusted for temperature.
PV Output Circuit DC
The DC wiring from the combiner box (or directly from strings) to the inverter DC input terminals. This circuit carries the combined current of all parallel strings at the full string voltage. Proper fusing and disconnects are required.
Battery DC Circuit
The DC wiring between the battery bank and the inverter or charge controller. Battery DC circuits operate at 48V (residential) or 400–800V (commercial). A battery management system monitors cell voltages and temperatures.
DC Load Circuit
In off-grid systems, some loads run directly on DC without inverter conversion. DC lighting, refrigeration, and water pumps avoid the 1–4% conversion loss. These circuits require separate DC breakers and are sized per NEC Article 690.
DC Circuit Specifications
| DC Circuit | Typical Voltage | Typical Current | NEC Reference | Key Safety Concern |
|---|---|---|---|---|
| PV Source Circuit | 200–600V (residential) | 8–20A per string | 690.7, 690.8 | String voltage exceeds max inverter Vdc in cold weather |
| PV Output Circuit | 200–600V (residential) | 16–80A (paralleled strings) | 690.8, 690.9 | Overcurrent from parallel string backfeed |
| Commercial PV String | 600–1,500V | 10–20A per string | 690.7(A) | Higher voltage increases arc flash severity |
| Battery Circuit (Residential) | 48V nominal | 50–200A | 706.7 | High current at low voltage requires heavy conductors |
| Battery Circuit (Commercial) | 400–800V | 25–100A | 706.7 | Fault current from battery bank can exceed 10,000A |
| DC Load Circuit (Off-Grid) | 12–48V | 5–30A | 690.71 | Polarity reversal damages DC-only appliances |
Formulas
P (W) = V (V) × I (A)String Vmp = Number of Panels × Vmp per PanelFor example, a string of 12 panels rated at 37.5V Vmp produces a string voltage of 450V DC at maximum power point. At STC open-circuit voltage (Voc = 45.2V), the same string reaches 542.4V. In cold conditions, Voc rises further — this temperature-corrected value must stay below the inverter’s maximum DC input voltage. Use solar design platform to calculate temperature-adjusted string voltages automatically.
DC arcs are significantly more dangerous than AC arcs. AC current crosses zero 100 or 120 times per second (50/60 Hz), giving arcs a natural extinction point at each zero crossing. DC has no zero crossing. Once a DC arc strikes — from a loose connector, damaged insulation, or corroded terminal — it sustains itself indefinitely until the circuit is physically broken or the energy source is removed. This is why NEC 690.11 requires arc-fault circuit interrupters (AFCIs) on all DC source and output circuits in PV systems installed on or in buildings. Rapid shutdown systems (NEC 690.12) reduce rooftop DC voltage to under 80V within 30 seconds of activation, limiting arc energy during emergencies.
Practical Guidance
- Calculate temperature-corrected Voc for every string. Panel Voc increases in cold weather. Use the module’s temperature coefficient (typically -0.27%/°C for monocrystalline) and the record low temperature at the site to find the maximum possible string Voc. This value must not exceed the inverter’s max DC input voltage. Solar design software handles this calculation automatically.
- Keep DC voltage drop below 2%. Long DC wire runs between panels and the inverter waste energy. Size conductors so the total one-way voltage drop stays under 1.5–2%. On rooftop residential systems with short runs, this is rarely an issue. On ground-mount commercial arrays, it often requires upsizing from #10 AWG to #8 or #6.
- Verify the inverter’s MPPT voltage window. Each inverter has a minimum and maximum DC voltage range for its MPPT tracker. If string voltage drops below the minimum Vmp on hot days, the inverter stops harvesting. If it exceeds the maximum Voc on cold days, the inverter shuts down to protect itself. Design strings to stay within the MPPT window across all expected temperatures.
- Size DC disconnects and fuses for the worst case. NEC 690.8 requires DC circuit conductors and overcurrent devices to be rated at 1.25 × Isc of the string. For parallel strings, the maximum fault current equals (number of parallel strings - 1) × Isc, which determines fuse size in the combiner box.
- Use MC4 connectors correctly — every time. Improperly seated MC4 connectors are the leading cause of DC arc faults in residential solar. Push until you hear the click, then tug-test. Never mix MC4 brands — different manufacturers have slightly different tolerances that cause loose fits and intermittent contact.
- Verify string polarity before connecting to the inverter. Reversed polarity on a DC string can damage the inverter’s input stage. Use a multimeter to confirm positive and negative leads on every string. Label conductors at the inverter with string number and polarity.
- Install rapid shutdown equipment per NEC 690.12. All PV systems on buildings must reduce DC conductors outside the array boundary to under 80V within 30 seconds of rapid shutdown initiation. Module-level power electronics (MLPEs) or rapid shutdown transmitter/receiver systems satisfy this requirement.
- Never work on energized DC circuits. Solar panels produce DC voltage whenever light hits them — they cannot be “turned off.” Use opaque covers to shade panels before disconnecting DC connectors. Open the DC disconnect before performing any inverter maintenance. Treat every DC conductor as live until verified with a meter.
- Keep the DC explanation simple for homeowners. “Your panels make DC electricity, like a big battery. The inverter converts it into the same type of electricity your house uses.” That is enough for most customers. Save the technical details for the engineering team.
- Explain rapid shutdown as a safety feature, not a cost. Customers sometimes question the cost of module-level electronics. Frame it as firefighter safety: “If there’s ever an emergency, the system drops rooftop voltage to safe levels in 30 seconds so first responders can work safely.”
- Use DC-to-AC ratio to set production expectations. A system with 10 kW DC of panels and a 7.6 kW AC inverter has a 1.32 DC/AC ratio. This means the system is intentionally oversized on the DC side to maximize production during non-peak hours. Explain that some clipping at peak sun is normal and already accounted for in the production estimate.
- Highlight DC optimizer benefits for shaded roofs. If the site has partial shading, DC optimizers on each panel recover energy that would otherwise be lost by the entire string. Use solar PV design software with shading analysis to show the customer exactly how much additional production optimizers recover.
Design DC and AC Circuits with Automatic Sizing
SurgePV calculates string voltages, validates inverter MPPT windows, and checks NEC compliance for every DC circuit in your design.
Book a DemoNo commitment required · 20 minutes · Live project walkthrough
- PVEducation.org — Solar Cell Operation — Explains the photovoltaic effect and why solar cells inherently produce direct current from semiconductor junctions.
- NFPA 70 (NEC) Article 690 — National Electrical Code requirements for solar PV DC circuits, including conductor sizing, overcurrent protection, disconnects, AFCI, and rapid shutdown.
- U.S. Department of Energy — Solar Energy Technologies Office — Research on DC arc-fault detection, rapid shutdown technologies, and PV system safety standards.
Frequently Asked Questions
Why do solar panels produce DC?
Solar panels produce DC because of the photovoltaic effect. When photons from sunlight hit the semiconductor material (typically silicon) inside a solar cell, they knock electrons free from their atoms. The cell’s built-in electric field — created by the P-N junction between two differently doped silicon layers — forces these freed electrons to flow in one direction. This one-directional flow is, by definition, direct current. The process is entirely passive and produces DC without any moving parts or mechanical conversion.
What voltage do solar panels produce?
A single solar cell produces about 0.5–0.6V DC. Panels connect 60 to 72 cells in series, resulting in open-circuit voltages (Voc) of 37–50V per panel. When panels are wired in series to form a string, the voltages add up. A typical residential string of 10–15 panels reaches 370–750V DC. Commercial systems with longer strings can reach 1,000–1,500V DC. The actual operating voltage (Vmp) is about 80–85% of Voc. Temperature also affects voltage — panels produce higher voltage in cold weather and lower voltage in heat.
Why does solar DC need to be converted to AC?
The electrical grid and virtually all household appliances operate on AC power. Motors, compressors, and transformers are designed for AC’s alternating waveform. The grid itself was built around AC because it can be efficiently stepped up to high voltages for long-distance transmission and stepped back down for safe building use — something that was historically difficult with DC. So while solar panels produce DC, an inverter must convert it to AC at the correct voltage and frequency (120/240V at 60 Hz in North America, 230V at 50 Hz in Europe) before the electricity can power loads or be exported to the grid.
