Charge Controller

A Charge Controller is an essential device in off-grid, hybrid, and battery-backed solar systems that regulates the power flowing from the solar panels into a battery bank. Its purpose is to prevent battery overcharging, deep discharge, voltage imbalance, and premature battery wear.

While grid-tied solar systems typically do not require a charge controller, any system that uses battery storage, including hybrid inverters, energy storage systems (ESS), and standalone off-grid setups, depends on a charge controller to protect the batteries and optimize their lifespan.

Modern charge controllers use intelligent algorithms to maximize the energy harvested from solar panels while ensuring the batteries receive clean, stable, and appropriately regulated charging—especially in environments where temperature, shading, or load patterns vary throughout the day.

Charge controllers are a critical component of system design for workflows involving storage modeling, off-grid analysis, and hybrid configurations, often performed alongside tools like Solar Designing and battery-sizing tools such as the Battery Size Calculator.

Key Takeaways

A Charge Controller regulates voltage and current flowing from solar panels into a battery bank.
Prevents overcharging, deep discharging, and battery damage.
Comes in two main types: PWM and MPPT, with MPPT offering higher efficiency.
Essential for any off-grid, hybrid, or battery-based solar installation.
Plays a vital role in energy storage design, longevity, and system safety.

What Is a Charge Controller?

A Charge Controller is a power electronics device that manages the charging and discharging process between solar panels and batteries. It ensures:

Batteries do not overcharge
Voltage stays within manufacturer specifications
Charging is optimized for battery chemistry
Reverse current is prevented during nighttime
Temperature compensation maintains battery health

Charge controllers work with a wide variety of battery chemistries, including lithium-ion, lead-acid, AGM, gel, and LFP systems.

They are essential in off-grid cabins, RV systems, telecom towers, backup battery systems, and hybrid homes that require storage resiliency.

Related concepts include Battery Management System, Load Analysis, and DC-Coupled System.

How a Charge Controller Works

1. Measures the Battery Voltage

The controller continuously reads the state-of-charge (SoC) of the battery bank.

2. Regulates Incoming Solar Voltage and Current

Solar panels often output voltage far higher than what a battery can handle.

The charge controller steps this down safely.

3. Uses Intelligent Charging Stages

Most controllers follow 3–5 charging stages:

Bulk Charging
Absorption Charging
Float Charging
Equalization (lead-acid systems only)
Maintenance Mode

4. Prevents Reverse Current Flow

At night, the charge controller stops batteries from discharging back into the panels.

5. Protects Against Overload and Short Circuit

Ensures system stability and battery longevity.

6. Communicates With System Components

Advanced controllers integrate with inverters, monitoring systems, and BMS units.

For comparison with grid-side systems, see Inverters.

Types / Variants of Charge Controllers

1. PWM (Pulse Width Modulation) Charge Controller

Simple and cost-effective.

Regulates voltage by rapidly switching the input on and off.

Best for small off-grid systems or older battery chemistries.

2. MPPT (Maximum Power Point Tracking) Charge Controller

More advanced and efficient.

Tracks the optimal voltage/current ratio to maximize solar harvest.

Ideal for modern lithium batteries and larger systems.

See Maximum Power Point Tracking (MPPT).

3. Multi-Channel Charge Controllers

Used for large installations or dual-array charging.

4. Hybrid Inverter Integrated Controllers

Some hybrid inverters have built-in charge controllers, eliminating the need for an external unit.

How Charge Controllers Are Measured

1. Voltage Rating

Matches system voltage:

12V
24V
48V
96V and higher (large ESS systems)

2. Current Rating (Amps)

Determines how much solar input the controller can handle.

3. Maximum PV Input Voltage

MPPT controllers allow high PV voltages for long string runs.

4. Charging Algorithm

Lithium or lead-acid optimized charging profiles.

5. Temperature Compensation

Adjusts charging for battery temperature—critical for lead-acid.

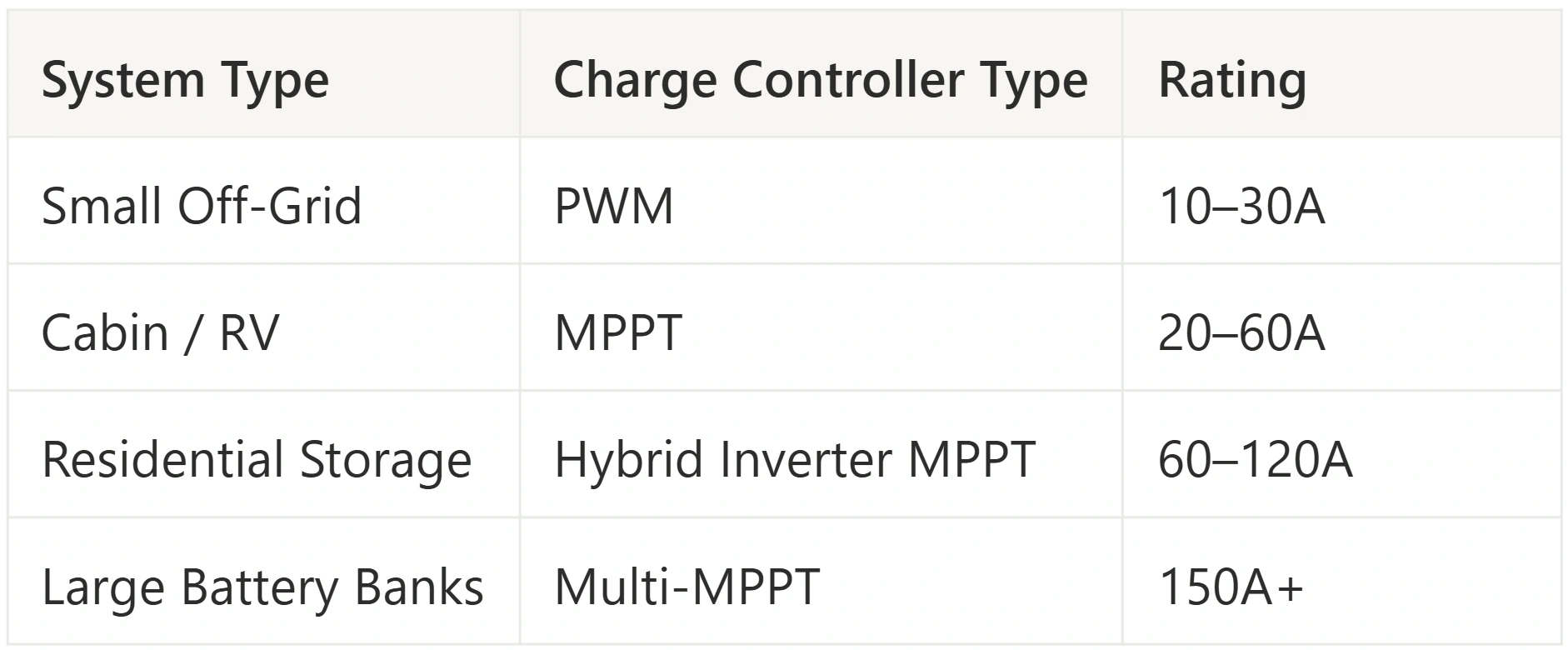

Typical Values / Ranges

Lithium systems generally require MPPT controllers for precise charging.

Practical Guidance for Solar Designers & Installers

1. Always size the charge controller based on battery current limits

Oversizing current can damage battery cells.

2. Use MPPT for maximum efficiency

Especially for solar arrays with variable shading or long strings.

3. Match charge controller voltage with system voltage

A mismatch can result in failure to charge or system shutdown.

4. Optimize for battery chemistry

Lithium batteries require precise absorb/float values—often managed through BMS coordination.

5. Consider environmental conditions

High temperatures reduce controller output; allow for ventilation.

6. Use design software to model loads and storage requirements

Tools like Solar Designing help determine the appropriate controller size.

7. Validate wiring, fusing, and breaker requirements

Charge controllers must be protected with correct dc-side overcurrent protection.

Real-World Examples

1. Off-Grid Cabin

A 24V battery bank connected to a 40A MPPT controller supports lights, fridge, and electronics, ensuring stable charging throughout the day.

2. RV Solar System

An 800W solar array charges a 12V lithium battery via a compact MPPT controller, maintaining optimal battery performance on the road.

3. Hybrid Home System

A lithium-ion home battery connects to a hybrid inverter with multiple MPPT inputs, automatically regulating solar charging and grid backup.
