Quick answer
An electronic system that monitors battery conditions and coordinates supported protection, estimation, balancing and operating controls; functions and equipment compatibility are model-specific.
What Is a Battery Management System?
Answer: A battery management system, or BMS, monitors battery conditions and coordinates operation within the supported limits of a particular battery system. Its functions can include cell-voltage and temperature monitoring, current measurement, charge estimation, balancing and charge/discharge control. A BMS is one protection layer; it does not guarantee fire prevention, establish inverter compatibility or replace required installation protection.
In solar storage, the useful question is not simply whether a product has a BMS. Establish what it measures, which conditions it detects, what action follows and which connected devices must respond. Texas Instruments’ monitor and balancer portfolio illustrates that monitoring, protection, balancing and control interfaces vary by device.
The Sense–Decide–Act Sequence
| Stage | What to verify in the actual system |
|---|---|
| Sense | Cell or cell-group voltage, pack current and the locations of temperature sensors |
| Decide | Configured thresholds, estimation methods, delays and fault handling |
| Act | Charger/load limits, switching devices, cooling requests or other supported actions |
| Communicate | Supported device pairing, messages, firmware and response to missing communication |
Do not assume every cell has its own temperature sensor or current sensor. Cells connected in series share string current; parallel paths and sensor placement require their own interpretation. A reported pack temperature may not describe every internal location.
Physical architecture is also different from measurement coverage. A centralized controller, distributed cell-monitor boards or a hierarchy of module and pack controllers can still provide individual cell-group voltage measurements. “Module-level” does not necessarily mean that only one module voltage is observed.
A Manufacturer-Specific Control Example
The Victron Lynx Smart BMS features manual describes separate allow-to-charge and allow-to-discharge contacts. In that system, high cell voltage or low temperature can stop charging, while low cell voltage can stop discharge. Compatible closed-loop control requires the documented devices and connected GX arrangement.
The manual identifies its contactor as secondary protection if primary controls fail to stop chargers or loads. This illustrates why a control request and electrical disconnection are separate actions. It is not a wiring instruction for another battery, or proof that every BMS contains a contactor.
A shared CAN or Modbus label alone does not prove compatibility. Verify the exact battery/inverter pairing, message interpretation, firmware and supported configuration. A working dashboard connection does not necessarily demonstrate that all charging sources obey the required limits.
Cell Balancing and Charge Estimation
Balancing manages differences between series-connected cells or groups so one reaches an operating limit before others less often. Passive methods dissipate selected balancing energy; active methods transfer energy between cells or groups. TI’s active-balancing reference design shows one specific implementation, not a mandatory design for every solar battery.
Balancing does not repair a damaged cell or restore capacity lost through aging. Nor does it guarantee a fixed percentage increase in lifetime. Voltage differences must be interpreted with chemistry, load and operating state; matching terminal voltages alone does not prove equal cell capacity.
State of charge is an estimate with a defined reference. A displayed percentage is not a direct measurement of available AC energy or remaining service life. Follow the manufacturer’s commissioning and synchronization procedure rather than forcing an undocumented full discharge.
Protection Limits and System Safety
No universal 35°C degradation threshold, 60°C thermal-runaway threshold or BMS fire-prevention percentage applies to every battery. Disconnecting external current cannot guarantee that an internal cell failure has stopped. Treat enclosure design, product testing, installation, protection and emergency provisions as parts of the complete system.
UL Solutions explains the distinction between UL 9540 product-safety certification and UL 9540A thermal-runaway test methodology. The presence of a BMS or an individual component approval does not establish certification of an arbitrary battery/inverter combination. Check the exact listing, test scope and locally adopted installation requirements.
Practical Handoff
Designers should retain usable-capacity boundaries, C-rate/current limits, temperature-dependent restrictions, permitted configuration and the response to communications loss. Avoid subtracting a reserve twice from a capacity already specified as usable.
Installers should follow the exact approved commissioning, protection, placement and firmware instructions. Record fault codes and supported diagnostic information before involving manufacturer support. Do not bypass the BMS or repeatedly reset a protective trip to keep the system running.

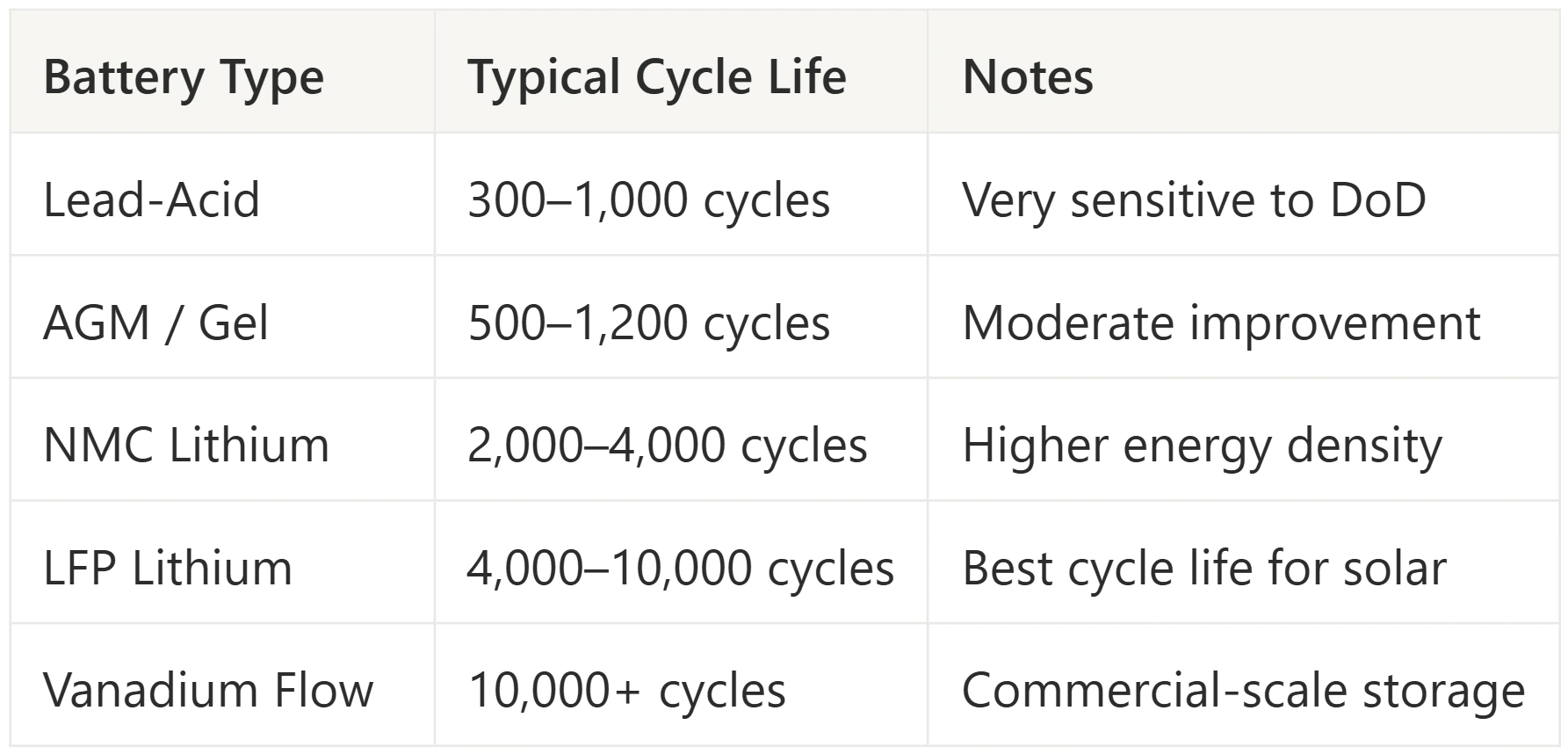

Sales teams should show the monitoring information the proposed system actually supplies. Explain protection as risk reduction, not a guarantee that dangerous conditions are impossible. Discuss battery cycle life using documented rating and warranty conditions. When evaluating SurgePV, ask which battery constraints and supporting documentation the workflow can represent.
Common Questions
What does BMS mean in a solar battery?
Here it means battery management system. In building services, the same abbreviation can mean building management system; check the context.
Can a BMS extend battery life?
It can support operation within the manufacturer’s limits and manage imbalance. It does not establish a universal lifetime improvement or eliminate calendar aging.
What happens if a BMS fails?
The response depends on the system’s fault detection and protection design. Follow its fault instructions and contact qualified support; do not assume every failure safely disconnects all energy sources.
