What Is Angle of Incidence? Definition & Guide

Quick answer

The angle between incoming sunlight and a line perpendicular to the solar panel surface. A 0° angle means the direct beam meets the surface head-on; optical transmission and total energy require separate modeling.

Answer: Angle of incidence is the angle between the direction toward the sun and the normal, or perpendicular line, to a module surface. At 0°, direct sunlight meets the plane head-on. As the angle changes, beam irradiance on that plane changes through geometric projection; angle-dependent optical transmission is a separate effect. Neither alone describes total PV energy production.

Angle of incidence, tilt, and azimuth

The tilt angle describes the plane’s slope from horizontal. Azimuth describes its compass orientation using the chosen convention. Angle of incidence, or AOI, depends on both that orientation and the sun’s position at the time considered.

For a fixed array, tilt and azimuth remain fixed while AOI changes during the day and year. For a tracker, the surface orientation changes too. AOI is measured from the surface normal, not from the surface itself: a ray parallel to the plane has an AOI of 90°.

The pvlib AOI documentation calculates AOI from surface tilt, surface azimuth, solar zenith, and solar azimuth, with angles supplied in degrees. Verify angle conventions before combining values from drawings, weather tools, or another model.

Geometric projection is not an optical-loss percentage

Sandia’s POA beam model projects direct normal irradiance, or DNI, onto the module plane:

Front-side beam POA = DNI × max(0, cos(AOI))

DNI and the result are in W/m². The zero lower bound handles a sun direction behind the front surface; the rear of a bifacial module needs its own surface treatment. This is the direct-beam component before angle-dependent optical treatment, not total effective irradiance.

Hypothetical geometric calculation, not a measured module result: With DNI held at 800 W/m²:

AOI	Cosine factor	Front-side beam POA
0°	1.0000	800.00 W/m²
30°	0.8660	692.82 W/m²
60°	0.5000	400.00 W/m²
80°	0.1736	138.92 W/m²
90°	0.0000	0.00 W/m²

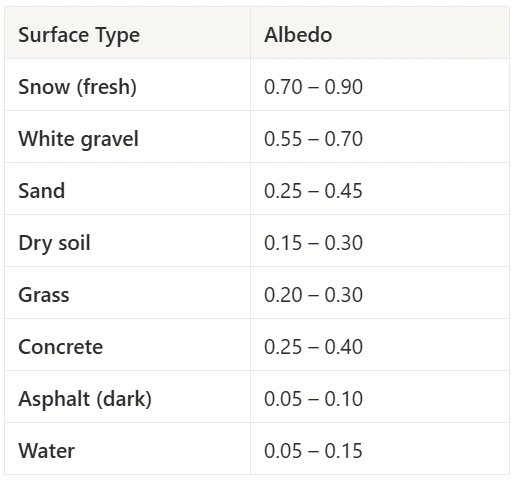

At 60°, the projected beam component is half the DNI. That is a geometric relationship, not a claim that reflection loses half the light or that annual production falls by half. Sky-diffuse and ground-reflected irradiance also contribute to plane-of-array irradiance.

What the incidence angle modifier represents

The incidence angle modifier, or IAM, represents the angular optical response of the module cover system under the selected model. It is commonly normalized to the response at normal incidence. It is separate from the cosine projection already used to calculate beam POA.

The pvlib physical IAM model represents reflection, absorption, and transmission through a transparent cover. Its inputs include refractive index, extinction coefficient, cover thickness, and an optional anti-reflective coating. Those model parameters do not establish the response of every module product.

Use measured product data or an appropriate documented model where available. Record the source, normalization, interpolation or model choice, and treatment of diffuse components. Do not assign one glass-reflection table or an annual coating benefit to all modules.

If a model applies IAM after transposing irradiance, avoid applying the same optical reduction again in a generic system-loss field. A report should distinguish geometric projection, optical response, shading, soiling, and electrical losses.

How AOI affects design decisions

Retain the practical comparison between fixed arrays, trackers, and constrained roofs, but evaluate each with the full project model:

Arrangement	AOI question	Additional considerations
Fixed tilt	How does the receiving plane compare with the sun’s path over the intended period?	Weather, diffuse resource, available area, shade, structural and site constraints
Single-axis tracker	What incidence remains under the selected axis geometry and control sequence?	Rotation limits, backtracking, terrain, row shading, stow and operating conditions
Dual-axis tracker	When can the system align with the sun, and when do constraints prevent it?	Mechanical limits, availability, stow, diffuse irradiance and economics
Multiple roof planes	How do the separate plane series combine?	Capacity on each plane, electrical allocation, shade and customer load timing

Annual energy cannot be optimized by minimizing an unweighted average AOI alone. Time-varying irradiance and the rest of the conversion chain matter. Customer financial value also needs load, tariff, export, and operating assumptions. Keep that evaluation separate from the geometry calculation.

There is no universal tracker gain or east-west production percentage. Compare alternatives with matched inputs and state which physical and operating assumptions changed.

A useful AOI review record

Identify each plane and its accepted geometry revision.
Record tilt and azimuth, units, reference direction, and evidence source.
Confirm solar-position time zone and timestamp conventions.
Retain the AOI and beam-POA series where the model exposes them.
Identify IAM data or model parameters and whether optical response is already applied.
Check diffuse, rear-side, shading, and electrical treatments separately.
Compare the complete energy output at the same boundary and period.

Installation verification should check geometry against the accepted design using the specified survey or measurement procedure. A compass reading without its north reference is insufficient to reconcile model azimuth. Tracking systems also need their applicable commissioning and operating checks.

The solar design workflow provides product context. Bring your orientation record and required model exports to a guided demo, and verify how the relevant workflow represents the optical and irradiance stages.

Frequently asked questions

Is 0° the best angle of incidence?

For a given DNI, 0° maximizes the direct-beam geometric projection onto that plane. Choosing an array orientation requires a time-series evaluation of weather, available area, shading, equipment, operating limits, and project objectives. One instant of normal incidence does not establish the best annual layout.

Is angle of incidence the same as tilt?

No. Tilt is the surface angle from horizontal. AOI is the angle between the sun direction and the surface normal at a particular time. A fixed plane can have many AOI values as the sun moves, even though its tilt remains unchanged.

Do single-axis trackers keep AOI at zero?

Not generally. One rotational degree of freedom does not align the normal with every sun position. Axis geometry, rotation limits, backtracking and other operating conditions affect incidence. Use the actual tracker geometry and control model rather than assuming all beam projection or optical losses disappear.

Does a 90° beam AOI mean the module produces no electricity?

The direct-beam projection onto that surface is zero at 90°. Diffuse sky and reflected irradiance can still reach it. A bifacial module may also receive rear-side irradiance. Total output requires the complete irradiance and electrical model, so beam AOI alone is not a production cutoff.

Sources reviewed September 30, 2026. Calculations illustrate geometry at one instant and do not predict annual yield or establish product-specific optical performance.
