Irradiance
Irradiance is the amount of solar power (sunlight energy) that reaches a surface per unit area, typically measured in watts per square meter (W/m²). It is one of the most important variables in solar engineering because it directly determines how much electricity a solar panel can generate at any moment.
In the solar industry, irradiance feeds directly into performance modeling, energy yield calculations, shading analysis, and array optimization. Accurate irradiance values are essential for designing systems using tools such as Solar Designing, computing real-time losses through Shadow Analysis, and performing financial modeling through solar proposal tools.
Irradiance varies continuously throughout the day based on weather, geographic location, season, shading, tilt, and azimuth of the array. It forms the foundation of PV system simulation and is the driving input for predicting annual energy production.
Key Takeaways
- Irradiance represents the instantaneous solar power hitting a surface, measured in W/m².
- It varies based on sun position, weather, shading, surface tilt, and orientation.
- POA irradiance is the most relevant metric for PV performance modeling.
- Irradiance drives layout decisions, shading analysis, and energy yield calculations.
- Accurate irradiance modeling is essential for system design, proposals, and financial projections.
What Is Irradiance?
Irradiance is the instantaneous power of sunlight striking a given area.
It answers the question:
“How much solar energy is hitting this surface right now?”
In the context of solar PV design:
- Higher irradiance → more DC production
- Lower irradiance → reduced output and higher shading losses
Irradiance is different from “insolation,” which represents energy over time, not instantaneous power.
Fundamental related terms include POA Irradiance, Shading Analysis, and Solar Layout Optimization.
How Irradiance Works
Irradiance changes continuously based on environmental and geometric factors:
1. Position of the Sun
Tilt, azimuth, altitude angle, and solar zenith dramatically impact irradiance.
Use tools like the Sun Angle Calculator to evaluate sun paths.
2. Weather Conditions
Clouds, haze, dust, and pollution reduce irradiance.
3. Surface Orientation
Panels tilted toward the sun receive higher irradiance.
4. Shading
Even 5–10% shading can reduce POA irradiance significantly—see Shading Analysis.
5. Ground Reflection (Albedo)
Snow, sand, and bright surfaces increase backside irradiance for bifacial systems.
6. Time of Day & Year
Irradiance peaks around solar noon and in summer months.
Irradiance is a dynamic value; modeling it accurately is essential for predicting annual system performance.
Types / Variants of Irradiance
1. Global Horizontal Irradiance (GHI)
Total solar energy received on a horizontal plane.
Used for climate-based modeling and long-term datasets.
2. Direct Normal Irradiance (DNI)
Sunlight reaching a surface perpendicular to the sun’s rays.
Essential for tracking arrays and CSP systems.
3. Diffuse Horizontal Irradiance (DHI)
Sky-scattered sunlight that arrives indirectly.
Important in cloudy or shaded environments.
4. Plane of Array Irradiance (POA)
Irradiance measured on the actual tilt and orientation of the solar array.
Used directly for PV performance modeling.
See POA Irradiance.
5. Effective Irradiance
Adjusts irradiance based on temperature, angle of incidence, and spectral conditions.
How Irradiance Is Measured
Common ways to measure irradiance include:
Pyranometers
Industry-standard hardware sensors measuring GHI, DHI, or POA.
Weather Datasets
Typical Meteorological Year (TMY) files provide long-term irradiance averages.
Satellite Data
High-resolution irradiance values derived from cloud cover and atmospheric modeling.
On-Site Monitoring
SCADA systems and data loggers measure real-time irradiance for operational plants.
Units
Irradiance is always expressed as:
W/m² (watts per square meter)
Maximum midday irradiance under clear skies typically reaches around 1000 W/m².

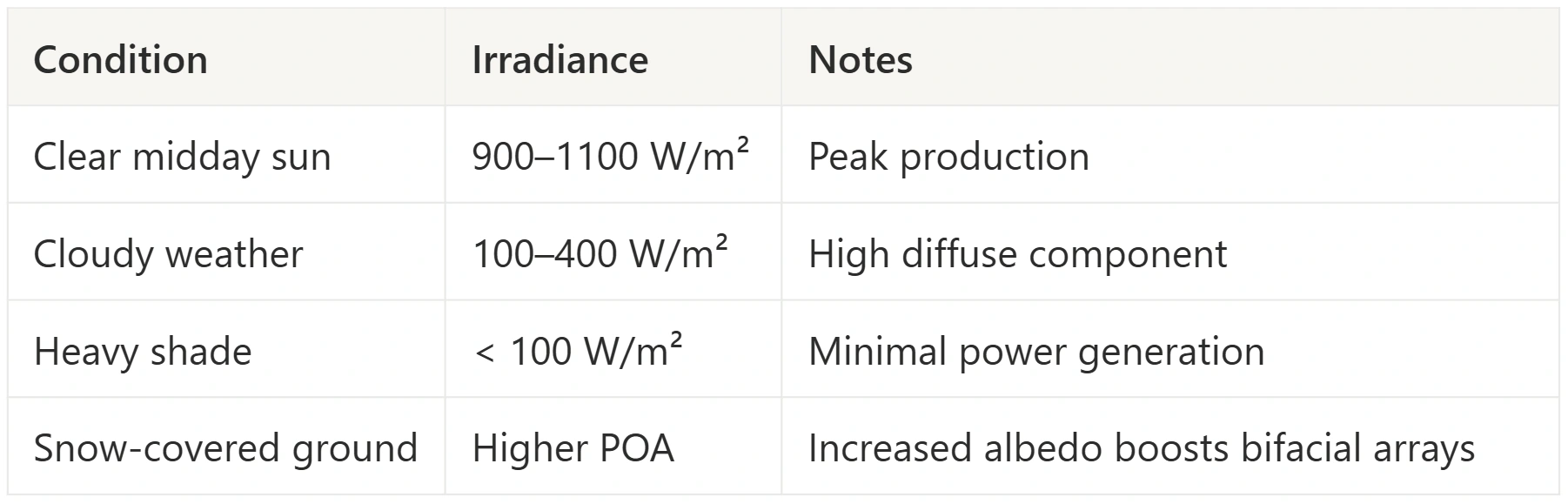

Typical Values / Ranges
Irradiance also varies widely by region—desert climates receive far more irradiance than coastal or northern climates.
Practical Guidance for Solar Designers & Installers
1. Always model POA irradiance, not GHI
POA provides accurate production estimates because it reflects module tilt and azimuth.
2. Avoid shaded roof sections
Use Shadow Analysis to identify shading impacts on irradiance.
3. Use irradiance maps during layout
Tools like SurgePV’s Solar Designing optimize placement for maximum POA irradiance.
4. Verify irradiance inputs for financial modeling
Accurate irradiance values feed directly into revenue modeling and payback calculations.
5. Adjust for seasonal differences
North-facing roofs in many regions receive significantly lower irradiance during winter.
6. Use correct irradiance when sizing inverters
Underestimating or overestimating irradiance can lead to inverter clipping or undersizing.
7. Leverage irradiance data for system-level troubleshooting
Underperformance related to shading, soiling, and misalignment often appears in irradiance trends.
Real-World Examples
1. Residential Array
A south-facing roof receives an average POA irradiance of 850 W/m² during peak hours, producing a highly efficient 6 kW system.
2. Commercial Flat Roof
A 300 kW system is designed using optimized tilt racks to increase average POA irradiance by 12% compared to a flush-mount layout.
3. Utility-Scale Solar Farm
A tracking system is deployed in a high-DNI region where direct beam irradiance exceeds 950 W/m², boosting annual yield substantially.
