Albedo
Albedo is the measure of how much sunlight a surface reflects compared to how much it receives. In solar design, albedo directly influences the rear-side energy production of bifacial solar panels, shading behavior, site modeling accuracy, and long-term performance predictions.
Surfaces with high albedo—such as snow, white gravel, sand, or light-colored concrete—reflect more sunlight, boosting energy yield. Low-albedo surfaces like moist soil, asphalt, vegetation, and dark rooftops absorb more heat and reflect very little light.
For designers using advanced simulation platforms like SurgePV, accurate albedo values are critical for POA irradiance modeling, bifacial energy calculations, layout optimization, and annual yield forecasting.
Key Takeaways
- Albedo measures how much sunlight a surface reflects, expressed between 0 and 1.
- Higher albedo increases rear-side bifacial production and overall system yield.
- Snow, light gravel, and white roofs have high albedo; asphalt and vegetation have low albedo.
- Accurate albedo modeling improves energy forecasts, system design, and financial projections.
- Solar designers must account for seasonal variations, ground cover, and array height when modeling albedo.
What Is Albedo?
Albedo is defined as the ratio of reflected solar radiation to the total incoming solar radiation on a surface.
Its value ranges from 0 to 1:
- 0.0 = no reflection (full absorption)
- 1.0 = perfect reflection (theoretical maximum)
In real environments, most natural and man-made surfaces fall between 0.05 and 0.90.
In PV engineering, albedo is a major input for:
- Bifacial module modeling
- Irradiance mapping
- Site shading analysis
- Ground cover optimization
To understand how albedo affects solar input, see:
➡️ Insolation
➡️ Irradiance
➡️ POA (Plane of Array) Irradiance
How Albedo Works in Solar Design
When sunlight reaches the ground beneath a solar array, part of it is absorbed and part is reflected.
That reflected light—especially from the backside of bifacial modules—can significantly increase total annual production.
Albedo → Ground Reflection → Rear-Side Gain → Higher kWh Output
Typical gains from albedo in bifacial PV systems range from 3% to 20%, depending on:
- Ground material
- Height of the modules
- Row spacing
- Tilt angle
- Seasonal conditions
Platforms like SurgePV’s Shading & Irradiance Engine automatically integrate albedo values into POA calculations and rear-side irradiance mapping.
Types / Variants of Albedo (Engineering Use Cases)
1. Black-Sky Albedo
Reflectivity under direct beam sunlight only, no atmospheric diffusion. Useful for clear-sky modeling.
2. White-Sky Albedo
Reflectivity under fully diffuse conditions (e.g., cloudy skies). Used in climate modeling.
3. Blue-Sky Albedo
A weighted blend of direct and diffuse conditions—most realistic for PV system simulation.
Most commercial PV modeling software, including SurgePV, uses blue-sky or fixed annual albedo values depending on the site data source.
How Albedo Is Measured
Albedo can be measured through:
1. Ground-Based Pyranometers
Two pyranometers measure:
- Global horizontal irradiance (GHI)
- Reflected irradiance
Albedo = Reflected Irradiance / Incoming Irradiance
2. Satellite-Derived Data
NASA MODIS datasets provide monthly and annual albedo values.
3. LiDAR & High-Resolution Imagery
Used for advanced modeling of reflective surfaces in rooftops and complex terrain.
See:
➡️ LiDAR Roof Model
➡️ Point Cloud Import
Typical Measurement Units
Albedo is unitless, expressed as a decimal between 0–1 or a percentage (0–100%).

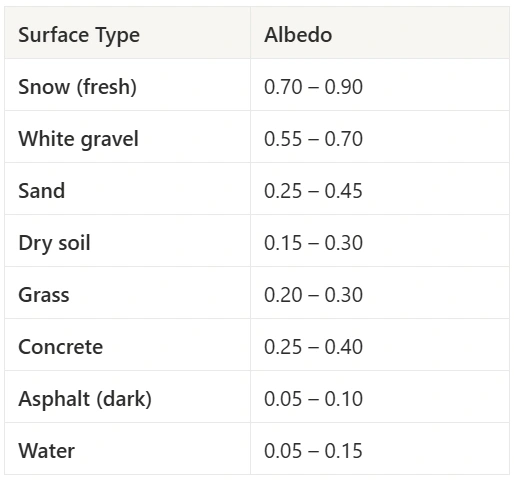

Typical Albedo Values (Common Solar Surfaces)
Snow is the highest-albedo natural surface, substantially boosting bifacial module output in winter climates.
Practical Guidance for Solar Designers
1. Use accurate ground-type albedo values
Avoid generic assumptions. A 0.10 change in albedo can shift rear-side energy production by 5–12%.
2. Increase module height for better rear-side gain
Higher racks allow more reflected light to reach bifacial cells.
3. Consider ground-cover modifications
White gravel or reflective membranes may improve performance in certain commercial rooftops or carports.
4. Use high-quality simulation tools
SurgePV’s Solar Designing Suite incorporates albedo into:
- Annual production simulations
- Shading analysis
- Heat mapping
- POA irradiance
5. Update albedo values seasonally when applicable
Snow, vegetation, and moisture dramatically change reflectivity throughout the year.
Real-World Examples
1. Bifacial Solar Farm in Colorado (High Albedo Snow Conditions)
During winter, farms experience 10–18% rear-side gain due to snow’s high reflectance.
2. Commercial Rooftop Using White TPO Membrane
Albedo-enhanced roofing can increase annual yield by 4–7% for bifacial modules.
3. Agricultural Site (Agrivoltaics) With Dry Soil
Moderate albedo provides stable, predictable performance across seasons.
