UK solar design software should help installers produce MCS design records, identify the G98 or G99 grid route, and model Smart Export Guarantee income from realistic export fractions. Check weather data, string checks, battery modelling and proposal output, and test each tool on five recent UK projects before you buy.
UK installers work inside a compliance framework with several layers: MCS certification, a grid connection route under G98 or G99, a Distribution Network Operator (DNO) process, Smart Export Guarantee (SEG) income in the customer proposal, and sometimes a SAP assessor on new builds. Each layer produces documents that someone checks. Design software earns its place by cutting the time and errors in that paperwork, not only by drawing the roof.
Last updated: November 2026. SurgePV publishes this post and sells solar design software, so read the tool comparison with that in mind.
Solar design software for the UK has to do more than lay out modules. It has to give you yield figures you can defend, string and inverter checks you can document, and financials that include export income. This guide sets out what each UK requirement asks of a design tool, what to test before you buy, and how SurgePV and other tools fit. It names what the vendors publish and says where something is not published. For the certification side, see the guide to MCS certification for solar installers in the UK.
TL;DR: UK Solar Design Software
Choose design software by testing it on your own recent UK projects. Check the yield method and weather data, the string and inverter checks, battery and export modelling, the proposal output and how you will produce G98 or G99 and MCS paperwork. No tool replaces approval by the responsible engineer, the DNO or your MCS certification body, so decide which documents you will still prepare yourself.
In this guide:
- What changed in the UK rules and data sources that matter for design software
- What MCS, G98/G99, SEG and SAP each need from a design tool
- How to test any tool on five real projects before you buy
- What SurgePV publishes about its capabilities, and what it does not
- Published list prices for several design tools
- How to choose by business size and project type
Testing design software on UK projects?
Bring a recent UK roof to a walkthrough and see how layout, shading analysis, yield and proposal fit together.
Book a DemoChecking cost first? See the SurgePV pricing page.
UK Terms You Will See in This Guide
| Term | Meaning |
|---|---|
| MCS | Microgeneration Certification Scheme, the quality scheme for small-scale renewable installations |
| MIS 3002 | The MCS solar PV installation standard |
| DNO | Distribution Network Operator, the company that runs the local electricity network |
| G98 and G99 | Energy Networks Association engineering recommendations for connecting generation, covering small units (G98) and larger units (G99) |
| MPAN | Meter point administration number that identifies the supply point |
| SEG | Smart Export Guarantee, under which licensees pay for exported electricity |
| SAP | Standard Assessment Procedure, the UK method for assessing dwelling energy performance |
| EPC | Energy Performance Certificate |
| kWp and kW AC | DC array rating and inverter AC output, which are different numbers and both appear on grid forms |
Latest Updates: UK Solar Rules and Data Sources
Three published sources matter most for design software this year: the MCS standards library, Ofgem’s SEG page and the PVGIS dataset from the European Commission’s Joint Research Centre. The table lists what each says, as read in November 2026.
| Area | What the source says | What it means for design software |
|---|---|---|
| MCS solar PV standard | The MCS standards library lists MIS 3002, “The Solar PV Installation Standard”, in two versions issued 18 March 2026: the current Installer Scheme (v6.0) and a redeveloped scheme (MIS 3002:2025, v2.0) | Check which version your certification body applies to your jobs before you decide what the tool must output |
| MCS contractor standard | MCS 001 is the MCS Contractor Standard, in two parts: requirements for contractors, and the certification process | Contractor requirements sit with the installer, not the software |
| Smart Export Guarantee | Ofgem says licensees set their own rates, tariff rates must be above zero, and solar PV up to 5 MW in Great Britain is eligible | Proposal models should take the SEG rate as an input, not a fixed default |
| Irradiance data | The PVGIS site describes free, worldwide data. Its production version, PVGIS 5.3, covers 2005 to 2023, and the PVGIS 6 beta uses 2014 to 2025 | Ask your tool which weather dataset it uses and which years it covers |
This guide does not quote national capacity figures, DNO processing times or rate averages, because those change often and were not re-checked against a primary source for this update. Read them from the regulator or DNO when you need them.
Key Takeaway: Compliance Is a Workflow, Not a Feature
Each UK requirement asks for a document that another party reviews. Decide which documents your design tool should draft and which you will still prepare by hand, then test exactly that on real projects.
What UK Solar Installers Need from Design Software
The UK framework creates requirements that differ from other markets. Judge any tool on whether it covers each one or leaves it to you.
MCS Certification and Documentation
MCS (the Microgeneration Certification Scheme) is the quality scheme for small-scale renewable installations in the UK. The MCS contractor standard, MCS 001, applies to the installing company. The solar PV installation standard, MIS 3002, sets out requirements for designing and installing solar PV systems.
Design software does not hold MCS certification. The installer does. What the software can do is help produce the design records your certification body expects, such as:
- The system specification, with module and inverter make and model, mounting system and array layout
- String design and the voltage and current checks against inverter limits
- A shading analysis and annual generation estimate for the customer
- A record of the assumptions behind the estimate
Read the current MIS 3002 for the exact list and for the method it requires for the generation estimate. Then ask each vendor which of those records the tool produces, in what format, and whether your certification body has accepted it.
G98 and G99 Grid Connection
G98 and G99 are Energy Networks Association engineering recommendations for connecting generation to the distribution network. See the Energy Networks Association and your DNO for the current documents.
G98 covers small generating units up to 16 A per phase, which is about 3.68 kW on a single phase. It is a connect-and-notify route: you notify the network operator about the installation.
G99 covers larger units. It is an application route: you apply to the DNO and need approval before you connect. The DNO may study the impact on its network, and timelines vary by DNO and by area.
A design tool should at least tell you early which route a design falls under, because a design that crosses the threshold changes the project timeline. Check how each tool treats export limitation settings, since these can change the route and what the DNO asks for. The export limiting glossary entry explains the concept.
For inverters, DNOs ask for evidence that the model meets the relevant requirements, so check the inverter’s current certification against the DNO’s guidance rather than relying on a database inside any design tool.
SAP and New-Build Work
SAP is the UK method for assessing the energy performance of dwellings. On new builds a SAP assessor needs the PV system specification and expected generation. Ask the assessor which format and which inputs they want, then check whether your tool can output them. Do not assume a design report is in a form the assessor can use directly.
SAP and its relative for existing homes matter in two ways. On new dwellings, the SAP assessment is part of showing compliance with the Building Regulations, and the PV system counts toward the result, so the developer’s assessor will ask for the specification and expected generation early. On existing homes, an Energy Performance Certificate uses the reduced-data version of the method, so a PV retrofit can change the EPC. In both cases the practical question for your design tool is simple: can it produce the specification and generation figures in a form the assessor can enter, and who checks them before they are used?
Ask the assessor for their required inputs at the start of a new-build job. Collect module and inverter models, array orientation and tilt, shading and the annual generation estimate in one place. Re-keying the same numbers by hand is a common source of mismatches between the design, the SAP input and the customer documents.
Smart Export Guarantee Calculations
The Smart Export Guarantee (SEG) replaced the Feed-in Tariff export payment in January 2020. Ofgem’s page says licensees set the rate, contract length and other terms, and rates must be above zero. Rates vary by licensee and change over time, so a good proposal tool lets you enter the rate rather than fixing one.
For the customer proposal, SEG income is part of the financial case, especially for systems without a battery. An accurate calculation needs:
- An annual generation estimate from the design simulation, using a UK weather dataset
- An export fraction based on the household’s load, not a generic default
- The SEG rate from the chosen licensee
- Projected SEG income shown next to the self-consumption saving
As an illustration with stated assumptions: a 4 kWp south-facing system producing 900 kWh per kWp a year generates 3,600 kWh. With half exported, that is 1,800 kWh. At a SEG rate of 10p per kWh, annual SEG income is £180. Change the generation, export fraction or rate and the income moves directly, so errors in any of the three show up in the proposal.
Export Fraction: The Number Most Often Wrong
The export fraction is the share of annual generation that goes to the grid. A fixed default for every home can be well off for specific households, because it depends on:
- Household size and daytime occupancy
- Appliances and loads such as electric vehicle charging and heat pumps
- Season, since summer export fractions are usually higher
- Roof orientation, since east-west arrays have flatter generation profiles
As an illustration, a home with a heat pump running through the day might export a smaller share than a retired household with low daytime use and no EV. Using the same default for both leads to a SEG income figure the customer will not see in practice. Where you have the customer’s bills or smart meter data, use them to estimate the export fraction.
Worked Example: Same Roof, Three Households
The table shows why one export default misleads. All three homes have the same 4 kWp system producing 3,600 kWh a year. The SEG rate is assumed at 10p per kWh and the import price at 27p per kWh. Both rates are assumptions for the illustration, not market data.
| Household | Export fraction | Exported (kWh) | SEG income | Self-consumed (kWh) | Import saving | Total annual value |
|---|---|---|---|---|---|---|
| A: daytime heat pump and home working | 30% | 1,080 | £108 | 2,520 | £680 | £788 |
| B: typical mixed pattern | 50% | 1,800 | £180 | 1,800 | £486 | £666 |
| C: empty home during the day | 70% | 2,520 | £252 | 1,080 | £292 | £544 |
Household C earns the most SEG income but has the lowest total value, because every self-consumed kWh saves more than an exported kWh earns at these assumed rates. A proposal that shows only SEG income would flatter the home that benefits least. Show self-consumption saving and SEG income together, and base the export fraction on the customer’s own load.
Pro Tip: Show Two SEG Rates
Show the customer’s current supplier rate as the baseline and a best available licensee rate as an optional uplift. The customer can register with any licensee, so explain the extra step. A proposal that shows both is harder to dispute later.
Battery Storage and SEG
With a battery, export falls and the value of self-consumption rises, because stored energy displaces evening grid imports. A battery model for a UK proposal needs:
- The PV generation model from the design simulation
- The battery’s capacity, round-trip efficiency and charge and discharge limits
- The household load profile
- The SEG rate for the remaining export
- The import tariff, including time-of-use rates where they apply
Treating the battery as a simple cut in export fraction ignores when the energy is used, and the result is sensitive to the gap between export and import rates. Read the guide to battery solar system design in the UK for the system design side.
Worked Example: What a Battery Changes
Suppose a household adds a battery that shifts 1,000 kWh a year of surplus into the evening. With a 90% round-trip efficiency, 1,000 kWh charged returns 900 kWh to the home. Using the same assumed prices as above, those 900 kWh displace imports worth 900 × £0.27 = £243. The 1,000 kWh no longer exported would have earned 1,000 × £0.10 = £100 of SEG income. The net annual gain from the battery is £243 minus £100, which is £143.
Compare that £143 with the battery’s installed cost to judge payback. The numbers are illustrative. The point is the structure: a battery model has to count the SEG income it gives up, the efficiency loss and the import price at the time the energy is used. A tool that only lowers the export fraction would count the £243 and miss the rest.
DNO Notification and Application Documentation
Every UK installation involves the local DNO. Great Britain is covered by six DNO groups, and the data they ask for is broadly similar, though forms and portals differ.
| DNO group | Main areas |
|---|---|
| UK Power Networks | London, South East and East of England |
| National Grid Electricity Distribution | Midlands, South West and South Wales |
| Electricity North West | North West England |
| Northern Powergrid | North East England and Yorkshire |
| SSEN | Central southern England and the north of Scotland |
| SP Energy Networks | Central and southern Scotland, Merseyside and North Wales |
Northern Ireland is served by NIE Networks. Use the DNO’s own portal and current forms, and do not assume one format fits all areas.
A typical notification or application includes the installer’s details and MCS number, the site address and MPAN (meter point administration number), the inverter make and model, the system’s rated output in kWp and kW AC, export limitation details where they apply, and a single-line diagram. Larger applications add protection settings.
Pro Tip: Check the MPAN and Inverter Name Before Submitting
Check the full MPAN against the customer’s bill, and check the inverter model name and rated output against the manufacturer’s certificate. A mismatch can send the application to the wrong place or back to you for correction, and it is quick to avoid.
A UK Residential Workflow From Enquiry to SEG Registration
A typical residential job passes through the same stages, and each stage is a place where a design tool can save time or introduce an error.
- Enquiry and data. Collect the address, roof photos, electricity bills and any smart meter or load data. Ask about EV charging, heat pumps or planned loads, because they change the export fraction and battery case.
- Roof model and shading. Build the roof model, place obstructions and run a shading analysis. Note the orientation and tilt of each plane.
- System design. Choose modules and the inverter, lay out the array, and check strings and inverter limits. Check which grid route the design falls under.
- Yield and financial model. Estimate annual generation from a UK weather dataset, then model self-consumption, export, SEG income and, where relevant, the battery. Use rates the customer can verify.
- Proposal and contract. Present the system, yield, savings, SEG income and assumptions in one document that matches the design. Record what the customer was shown.
- Grid and certification paperwork. Prepare the DNO notification or application and the MCS records. For G99 work, apply as early as you can.
- Installation and commissioning. Install, commission and record the results.
- Handover and SEG registration. Hand over operating and warranty information, and explain how the customer registers with a SEG licensee.
A design tool helps most at steps 2 to 5, and partly at 6. Steps 1, 7 and 8 stay with your team. When you evaluate a tool, ask which of these steps it supports and which it leaves entirely to you.
Common Mistakes in UK Solar Designs
These errors recur across UK residential and commercial projects. Most are cheap to prevent if you catch them at design stage.
- Crossing the G98 threshold late. An inverter choice that pushes the design from G98 to G99 changes the timeline. Check the route whenever the inverter or output changes.
- Using one export fraction for every home. The worked example above shows how far the value moves with the household.
- Quoting one SEG rate as if it were fixed. Rates change and differ by licensee, so state the rate and the date.
- Skipping the shading model on complex roofs. Dormers, chimneys and neighbouring trees are the usual sources of loss, and simplified methods can understate them.
- Over-conservative string temperatures. A cold default can shorten strings and reduce system size without need. Use the temperatures your design standard or the inverter manufacturer asks for.
- Mismatched numbers across documents. The design, DNO form, MCS record and proposal should show the same inverter, output and generation. Differences invite queries.
- Treating the battery as a simple export cut. See the worked example above.
- Wrong MPAN or inverter name on the DNO form. Check both before you submit.
How to Test Design Software for UK Work
Do not rely on a vendor demo. Run five recent projects through each tool you are considering and compare the output with what you currently produce. Choose projects that include a plain roof, a shaded roof, a split-orientation roof, a battery job and, if you do commercial work, a G99 job. This table sets out what to test.
| UK requirement | What to test | What a good result looks like |
|---|---|---|
| Yield estimate | Which weather dataset and years the tool uses, and how it handles shading | You can state the dataset and method in the customer documents |
| String and inverter checks | Voltage and current checks across the temperature range for the site | The calculation is visible and matches your own check |
| G98 or G99 route | Whether the design tells you which route applies as you change the inverter | You see the threshold issue before you submit, not after |
| DNO paperwork | What data the tool can export for the notification or application | Fields you need are filled, and gaps are clear |
| MCS records | Which design records the tool outputs, and in what format | Your certification body can use them |
| SEG and export | Whether the SEG rate and export fraction are inputs you can change | Income changes when the inputs change |
| Battery model | Whether charge and discharge follow the load profile | Results change sensibly with load and tariff |
| Proposal | Whether the proposal uses the same model as the design | No re-entry, and numbers match the design |
| Time | Time from postcode to completed proposal | Faster than your current process for the same quality |
Key Takeaway: Ask for Evidence, Not Claims
Accuracy claims, automation claims and compliance claims need evidence you can check. Ask vendors for a documented method and a test on your own project. If a vendor does not publish a figure, treat it as not published.
Scoring Your Trial
Score each tool from 0 to 3 on each row of the test table, where 0 means it does not do it, 1 means it does it with heavy manual work, 2 means it does it with some checking and 3 means the output was ready to use. Weight the rows by what hurts you most. An installer who does mostly residential jobs might weight the proposal, SEG and battery rows heavily. A commercial installer might weight the G99 data and yield rows. Add the weighted scores, then check the winner against the times you recorded. A tool that scores well but takes longer than your current process has not solved your problem.
Keep the trial files. If you later question a result, you will want the inputs and the outputs from the test.
What SurgePV Publishes About Its Capabilities

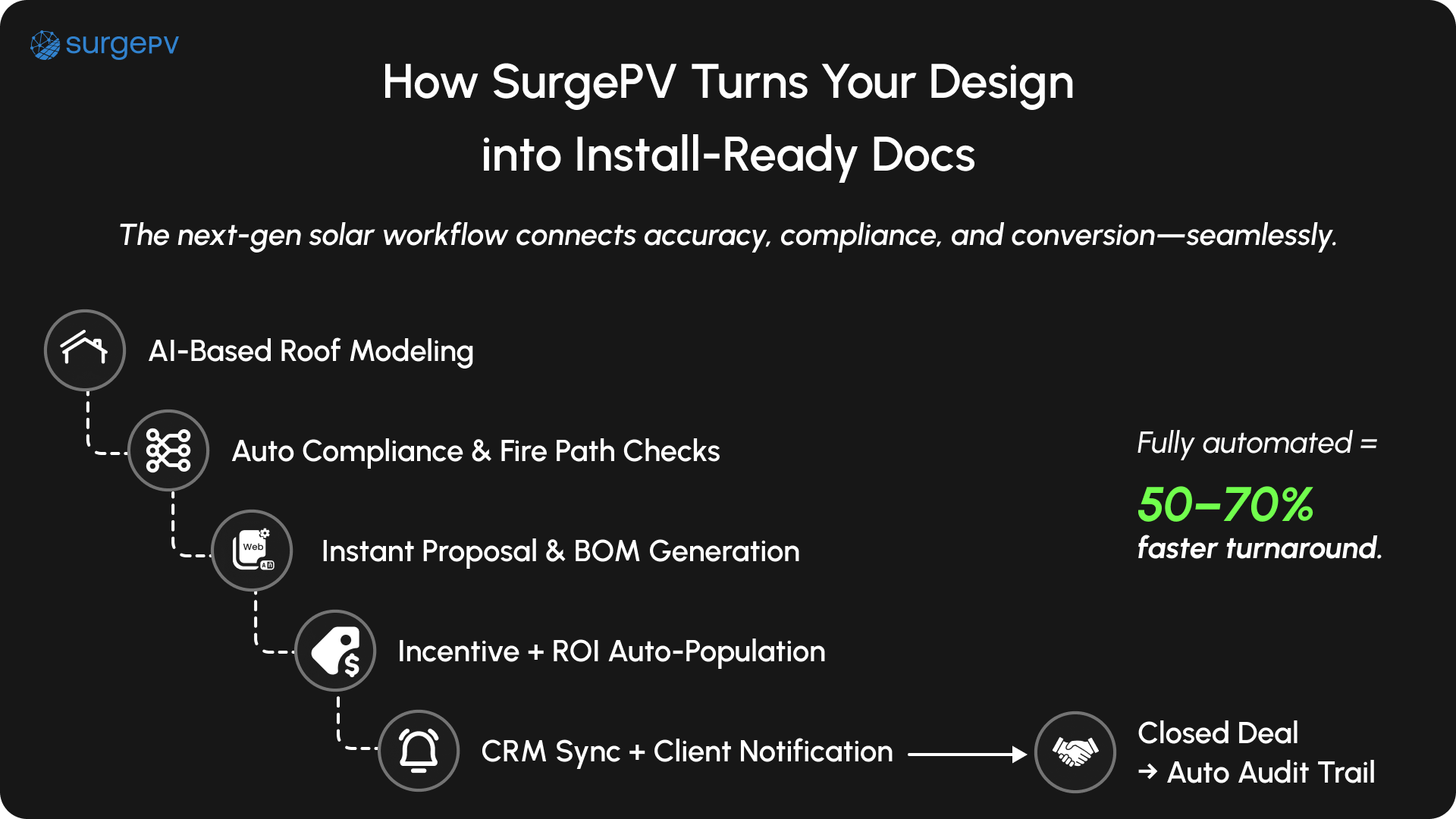

SurgePV is a cloud-based solar design and proposal platform. Its published scope covers 3D roof modeling, solar array layout, shading analysis, energy-yield modeling, financial modeling, electrical workflow support, bill-of-materials output and proposal generation. See the pages for solar design, shadow analysis, the generation and financial tool and solar proposals.
What is not published. SurgePV does not publish UK-specific G98 or G99 validation, DNO pack generation, MCS documentation output, SAP output, an inverter certification database or yield accuracy percentages. If any of these matter to you, ask for them in a demo using your own project, and treat the answer as the source.
Limits. Results depend on source data, assumptions, equipment models, configuration and review. Outputs support design and documentation workflows and do not replace approval by the responsible engineer, authority, lender, insurer or utility. Pricing and terms need a written quote.
Price. SurgePV’s published prices are per user, per year, in US dollars: USD 1,899 for an individual, USD 1,499 per user for three seats and USD 1,299 per user for five seats. See the pricing page for current terms.
See how your UK project runs through SurgePV
Bring a recent job and check the yield estimate, shading analysis, financial model and proposal against your current process.
Book a DemoChecking cost first? See the SurgePV pricing page.
Other Design Tools UK Installers Evaluate
UK installers commonly evaluate several kinds of tool. The table names examples and lists what to verify. It does not rate features, because each vendor’s own documentation is the source for what its tool does.
| Tool type | Examples | Typically used for | What to verify for UK work |
|---|---|---|---|
| Cloud residential and commercial design | SurgePV, Aurora Solar, HelioScope | Layout, yield and proposals | UK weather data, UK document output, battery and SEG modelling |
| Desktop simulation | PV*Sol, PVsyst | Detailed yield and architectural simulation | Workflow time, proposal output, how outputs feed UK paperwork |
| CAD-based engineering | PVcase | Ground-mount and large site layout | Whether it covers the residential workflow if you need it |
| Free irradiance and yield | PVGIS | Preliminary yield estimates | It is an estimation tool, not a proposal or paperwork tool |
Published List Prices
The prices below are what each vendor lists on its own pricing page, in US dollars. They are not a quote and the plans differ in scope.
| Software | Published annual price | Source |
|---|---|---|
| SurgePV, 5 seats | USD 1,299 per user | SurgePV pricing page |
| Aurora Solar Basic (billed annually) | USD 1,620 per user | Aurora Solar pricing page |
| HelioScope Basic (billed annually) | USD 1,620 per license | HelioScope pricing page |
| SurgePV Individual | USD 1,899 per user | SurgePV pricing page |
| Aurora Solar Premium (billed annually) | USD 2,640 per user | Aurora Solar pricing page |
| PV*Sol, PVsyst, PVcase | Not listed in this comparison | Vendor sites |
- SurgePV, 5 seats$1,299
- Aurora Basic, annual$1,620
- HelioScope Basic, annual$1,620
- SurgePV Individual$1,899
- Aurora Premium, annual$2,640
Source: SurgePV, Aurora Solar and HelioScope published pricing pages, checked November 2026.
Aurora Solar and HelioScope prices were read from their pricing pages on 4 November 2026: Aurora Solar pricing and HelioScope pricing. Prices and terms can change, so read the vendor page before you buy.
Commercial and C&I Projects
Commercial work in the UK adds questions that residential jobs rarely raise.
- Grid route. Systems above the G98 limit follow G99, so the DNO application sits on the critical path. Start early and keep the design consistent with the application.
- Export limitation. Some sites accept limited export, or none. Check how the tool models a capped or zero-export system and what the inverter settings must be.
- Load matching. Commercial value depends on how much generation the site uses. Test the tool with interval or half-hourly load data, not just monthly totals. The solar system sizing guide for 15-minute interval data shows the method.
- Financial models. Customers may want capex, lease or power purchase structures. Check that the tool can model the structure you sell.
- Structural and roof checks. Roof load and fixing design stay with the responsible engineer. A design tool does not replace them.
- Planning. Listed buildings and conservation areas can have different planning rules. Check with the local planning authority before you promise a layout.
PVGIS and Yield Data for UK Sites
Yield estimates depend on the weather data behind them. PVGIS, from the European Commission’s Joint Research Centre, is free and worldwide, and its production version covers 2005 to 2023. Many tools draw on PVGIS or on commercial datasets. Ask which one yours uses, which years it covers and how the tool handles shading and roof geometry.
For a UK roof, shading often matters more than the choice of dataset, so run a proper shadow analysis on the 3D roof model before you quote. East-west split roofs and roofs with dormers or chimneys are where simplified shading methods drift furthest from reality.
Orientation, Tilt and Shading on UK Roofs
UK roofs are mostly pitched and often have several planes, so orientation and shading drive more of the result than the choice of module.
- South-facing planes give the highest annual yield per module in most cases, but they are not always the best fit for the household’s load.
- East-west splits produce a flatter generation curve across the day. That can raise self-consumption for households with morning and evening demand, even though the annual yield per module is lower. Model both orientations against the load profile instead of assuming south is best.
- Tilt is usually set by the roof pitch. Check the pitch and orientation of each plane on the 3D model instead of using one figure for the whole roof.
- Low winter sun makes chimneys, dormers, neighbouring buildings and trees more important in winter, when generation is already low. Run the shading analysis across the full year.
- Soiling and snow are smaller factors in most UK locations, but allow for them in the loss assumptions and state them in the proposal.
If your tool uses a simplified shading method, compare it with a more detailed shadow analysis on one shaded roof from your own pipeline, and see how far the results differ.
String Sizing and Inverter Checks
String sizing is a calculation you can check by hand, and any design tool should show its working. The checks are:
- Maximum string voltage at the lowest temperature. Use the module’s open-circuit voltage and its temperature coefficient for Voc, at the lowest design temperature for the site.
- Minimum string voltage at the highest temperature. Use the maximum power point voltage and its coefficient, at the highest design temperature.
- Inverter limits. The maximum voltage must stay below the inverter’s absolute maximum input voltage, and the minimum must stay inside the MPPT window.
- Current. The string current must stay within the inverter’s limit per MPPT input.
Use the design temperatures your design standard or the inverter manufacturer specifies. A very conservative temperature assumption shortens strings and can cut the system size below the roof capacity, so know which value your tool uses and why. The solar inverter sizing guide covers the sizing steps in more detail.
G98 and G99: What to Plan For
The route affects the whole project timeline, so plan for it at design stage.
- Design. Settle the inverter and system output. Check whether the design falls under G98 or G99, including any export limitation.
- G98 projects. Prepare the installer details, MCS number, MPAN, inverter details and system specification, and notify the DNO through its portal or form.
- G99 projects. Prepare an application with the technical data the DNO asks for, including the single-line diagram and protection details, and wait for approval before you install and energise the system.
- Commissioning. Commission the system, record the results and complete the registration steps. Keep the records for your MCS file.
For G99 work, apply as early as you can, ideally before the customer contract is signed or at the same time. Approval timelines vary by DNO and by network area and are outside your control. Applying after design completion can delay the project start by months. Check each DNO’s published guidance for current timescales.
Key Takeaway: Apply Early for G99
The DNO’s decision is often the longest item on a commercial project’s critical path. Submit the application from a preliminary design, then keep the design aligned with what you submitted. A change in inverter or output later can mean another round with the DNO.
Choosing by Business Size and Project Type
No tool is best for every installer. Match the tool to your workflow and test it on your own projects.
| Installer type | What matters most | What to test |
|---|---|---|
| Small residential team | Time from enquiry to proposal, and low admin load | Proposal output, SEG and battery modelling, ease of use |
| Growing residential installer | Consistent documentation across designers | Whether outputs match your MCS and DNO records |
| Commercial and C&I | G99 data, yield accuracy, financial modelling | Export limitation handling, load matching, financial outputs |
| Enterprise portfolio | Multi-user control, CRM links and reporting | Permissions, integrations and support |
| Architecturally complex work | 3D accuracy and visual presentation | Roof modelling on listed or unusual buildings |
| Ground-mount engineering | CAD-based layout and civil integration | Terrain tools and construction documentation |
| Preliminary feasibility | Quick estimates | A free tool such as PVGIS is enough for early screening |
Decision Factors by Stage
Early stage. At low volume the main risk is documentation gaps in MCS records, because one problem on a small file set matters more. Choose a tool whose outputs you can check against your own records, and that you can learn quickly.
Growth stage. Manual compliance workflows start to break down. Documentation assembly takes designer time, and submission errors create delays and cash-flow problems. Look for tools that reduce re-entry between design, paperwork and proposal.
Scale stage. Multi-user control, project tracking and consistent outputs matter. Ask for proof at your volume, including how the vendor supports large teams.
Estimating the Return on Design Software
You can estimate the return on a design tool with simple arithmetic and your own numbers. Do not rely on a vendor’s time-saving figure.
Monthly saving = hours saved per project × projects per month × hourly cost of the person doing the work
As a hypothetical example, suppose a tool saves one hour per project across design, documentation and proposal, you complete 30 projects a month and the work costs £30 an hour. The saving is 1 × 30 × £30 = £900 a month. If the subscription costs less than that, and the hour is real, the tool pays for itself in time alone. If you save 30 minutes, the figure halves. Measure the hours in your own five-project test, not from a brochure.
The calculation leaves out benefits that are harder to count: faster proposals that may help close rate, fewer correction rounds with the DNO, and lower audit exposure from consistent records. It also leaves out costs, such as learning time and any work the tool does not cover. Count both sides.
Questions to Put to Any Vendor
Use these questions in a demo or trial. A clear, documented answer is worth more than a confident claim.
- Which weather dataset and years does the yield model use, and can I see the loss breakdown?
- How does the shading model work, and how does it handle multi-plane roofs with dormers and chimneys?
- Which string and inverter checks does the tool run, and can I see the calculation?
- How does the tool tell me whether a design falls under G98 or G99?
- What data can I export for a DNO notification or application, and in what format?
- Which MCS design records can the tool output, and has any certification body reviewed them?
- Are the SEG rate, export fraction and import tariff inputs I can change?
- How does the battery model treat charge and discharge against the load profile?
- Is the proposal built from the same model as the design, so nothing is re-entered?
- Which of these items are published in your documentation, and which are only available in a demo?
If a vendor cannot answer in writing, record the item as not published and decide whether you can live without it.
What a Good UK Proposal Shows
The customer sees the proposal, so it is where design errors become sales problems. A UK residential proposal should show:
- The system size in kWp, the inverter output, and the roof layout with the modules placed
- The annual generation estimate and the method and weather data behind it, with shading losses shown
- The assumed self-consumption share and how it was estimated
- The import price and SEG rate assumed, with the date they were checked
- The projected annual saving and SEG income, shown separately
- Battery details and the extra saving if a battery is included, with the efficiency losses counted
- The warranty terms, taken from the manufacturers’ documents
- The assumptions and a plain statement that results are estimates
Keep the numbers consistent with the DNO and MCS paperwork. A customer or auditor who finds two different generation figures for the same system will ask which one is right.
Where UK Design Software Is Heading
Several trends will affect tool choice, though each depends on what vendors actually ship.
Roof assessment from aerial and LIDAR data. Tools that build roof geometry from imagery can cut the time from address to a first design. UK pitched roofs with dormers, valleys and chimneys are a harder test than simple roofs, so test accuracy on your own jobs.
EV charging and heat pumps. Proposals increasingly need to model how PV generation interacts with EV charging and heat pump load. A fixed export fraction cannot capture that, so check how a tool handles load profiles.
Time-of-use tariffs. As more customers choose time-of-use tariffs, the value of a battery depends on the tariff price curve. Check whether a tool can model your customer’s actual tariff.
Data exchange with assessors and networks. Digital data sharing for SAP, EPC and network data may reduce manual re-entry over time. Ask vendors what they support today and what is planned, and rely only on what is documented.
Conclusion
UK installers need MCS-aligned records, the right G98 or G99 route, and proposals with realistic SEG income. The paperwork, not the roof, is usually where time and errors build up. The right design tool reduces that load, but only if it does the specific things you need.
Three actions will help:
- Write down your requirements. List the documents and checks you need from a tool, and which you will keep preparing yourself.
- Test five recent projects. Run them through each tool and compare the output with your current MCS file and DNO pack. Time the whole workflow from postcode to proposal.
- Keep the engineer in the loop. Whatever the tool produces, the responsible engineer, your certification body and the DNO decide whether the design is acceptable.
To test SurgePV on your own projects, book a demo and bring a UK roof. You can also read how PV design tools handle layout and shading, and how solar proposals carry the numbers to the customer.
Frequently Asked Questions
What solar design software do UK installers use?
UK installers use a mix of cloud design platforms such as SurgePV, Aurora Solar and HelioScope, desktop simulation tools such as PV*Sol and PVsyst, and CAD-based tools such as PVcase for ground-mount work. The right choice depends on project type and volume, so test your shortlist on recent UK projects. Free tools such as PVGIS help with early estimates.
Does solar design software need to be MCS compliant in the UK?
MCS certification applies to the installing company and its work, not to the design software. The software can help produce the design records your certification body expects, so ask which records it outputs and whether your certification body accepts them. Read the current MIS 3002 for the requirements.
What is the difference between G98 and G99 grid connections in the UK?
G98 covers generating units up to 16 A per phase, about 3.68 kW on a single phase, and is a connect-and-notify route. G99 covers larger units and needs an application and DNO approval before you connect. Check the route whenever the inverter or system output changes.
How do I calculate Smart Export Guarantee payments in solar design software?
Multiply the estimated annual export by the SEG rate from your licensee. Annual export is annual generation times the export fraction. For example, 3,600 kWh with a 50% export fraction at 10p per kWh gives 1,800 kWh and £180 a year. Use the household’s load data to estimate the export fraction.
What is the best free solar design software for UK installers?
PVGIS, from the European Commission’s Joint Research Centre, is a free tool for irradiance and PV yield estimates. It is useful for early screening, but it is not a proposal tool and does not produce DNO or MCS paperwork. Use it as a cross-check on the yield from other tools.
How long does G99 approval take in the UK?
Timelines vary by DNO and by network area, so there is no single figure. Check the DNO’s published guidance, apply as early as you can and keep the design consistent with the application. A change of inverter or output after you apply can mean another round with the DNO.
What should I look for when evaluating UK solar design software on a trial?
Run five recent projects through each tool, including a shaded roof, a split-orientation roof and a battery job. Check the yield method, string checks, G98 or G99 route, SEG and battery inputs, DNO and MCS outputs and the time to a finished proposal. Score each row and compare with your current process.
Where this fits
This article is part of SurgePV's Solar Design hub, which works through the topic from first principles to the decisions a project team actually has to make.
