Drone-Based Solar Survey

A Drone-Based Solar Survey is the use of UAV (Unmanned Aerial Vehicle) technology to capture high-resolution imagery, elevation models, thermal data, and geospatial measurements for solar site assessment and system design. Drones enable solar designers, EPC teams, and installers to obtain accurate roof geometry, shading profiles, obstruction details, and terrain elevations without needing physical access to roofs or ground sites.

Drone surveys significantly improve the precision of solar system layouts—especially when paired with digital design workflows such as Solar Designing and shading analysis tools like Shadow Analysis. They reduce site visit time, enhance safety, and provide data accurate enough for engineering-grade modeling.

Key Takeaways

A Drone-Based Solar Survey uses UAV technology to capture accurate imagery, geometry, and 3D models for solar design.
It improves precision, safety, and design speed for residential, commercial, and utility-scale projects.
Drone data integrates seamlessly with solar design platforms like SurgePV.
It supports shading analysis, module placement, setback mapping, and energy modeling.
Ideal for both new system design and ongoing O&M monitoring.

What Is a Drone-Based Solar Survey?

A Drone-Based Solar Survey is a structured flight operation where a drone captures aerial imagery and 3D data over a solar project site. This data is processed into outputs such as:

Orthomosaic maps
3D point clouds
LiDAR or photogrammetry-based surface models
High-resolution roof scans
Thermal imaging for PV system diagnostics
Contour lines and elevation maps

The resulting dataset is then imported into solar design software to generate accurate layout boundaries, obstruction mapping, shading studies, tilt detection, and terrain adjustments.

Related concepts include 3D Solar Modeling, Irradiance Mapping, and Site Assessment.

How a Drone-Based Solar Survey Works

1. Pre-Flight Planning

The designer or survey team prepares:

Flight path
Height, angle, and speed settings
Ground control points (if required)
Weather and lighting conditions

2. Drone Flight Execution

The drone autonomously captures overlapping photos, videos, or LiDAR data across the rooftop or land area.

3. Image Processing & Reconstruction

Captured data is processed into:

Photogrammetry 3D models
Point clouds
Orthomosaics
Digital Elevation Models (DEMs)
Digital Surface Models (DSMs)

4. Import into Solar Design Software

The processed model is integrated with tools like Solar Designing for:

Boundary tracing
Roof tilt detection
Obstruction identification
Accurate panel placement
AHJ setback mapping

5. Shading & Performance Analysis

The drone model can be used with Shadow Analysis to generate hour-by-hour shading impacts.

Types / Variants of Drone-Based Solar Surveys

1. Photogrammetry Surveys

Use RGB cameras to create 3D models and orthomosaics.

2. LiDAR Surveys

Use laser-based scanning for high-precision terrain and structure mapping.

3. Thermal Imaging Surveys

Used in O&M for:

Hotspot detection
Soiling analysis
Arc faults
Defective module identification

4. Roof Geometry Surveys

Capture pitch, azimuth, ridges, valleys, parapets, and equipment locations.

5. Ground-Mount Surveys

Cover large solar farm sites, capturing terrain models used for:

Grading analysis
Row-spacing optimization
Tracker layout design

How It’s Measured

Drone survey data is quantified using:

Ground Sample Distance (GSD)

Indicates image resolution (e.g., 1–3 cm/pixel).

Accuracy Error Margins

Horizontal and vertical accuracy after processing.

Point Density (for LiDAR)

Measured as points per square meter (ppm²).

Elevation Variance

Used for slope, contour, and grading calculations.

Tilt & Azimuth Detection Accuracy

Important for rooftop system design.

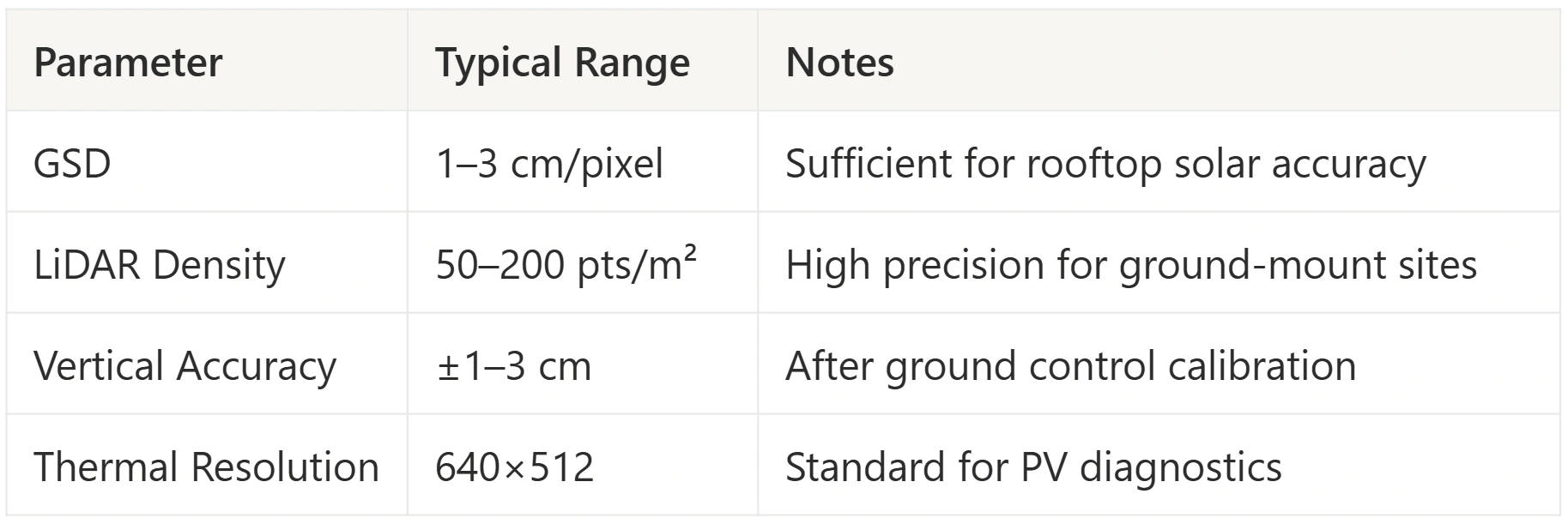

Typical Values / Ranges

Practical Guidance for Solar Designers & Installers

1. Use drone data for complex rooftops

Multi-plane or obstruction-heavy roofs benefit greatly from accurate drone scans.

2. Validate roof pitches & azimuths

Drone geometry reduces manual measurement errors—critical for module placement.

3. Combine drone data with shading tools

Use Shadow Analysis to prevent shaded zones from affecting design accuracy.

4. Improve proposal accuracy

Integrating drone data into Solar Designing increases customer trust and improves close rates.

5. Use drones for O&M diagnostics

Thermal surveys reveal faults before they escalate.

6. Reduce site visit time

Drone-based assessments replace dangerous roof climbs and manual tape measurements.

7. Ensure flight compliance

Follow local UAV regulations, airspace rules, and insurance requirements.

Real-World Examples

1. Residential Roof Scan

A home with a steep, multi-plane roof is scanned using a drone, capturing tilt and obstruction data with 2 cm accuracy. The model is imported into SurgePV to produce a 6.2 kW optimized layout.

2. Commercial Flat Roof Mapping

A 150,000 sq ft commercial building is surveyed to capture parapets, HVAC units, and shading objects. The drone output enables precise walkway mapping and structural alignment.

3. Utility-Scale Ground-Mount Survey

A 40-acre site is scanned with LiDAR to produce a high-density terrain model. This data is used to determine tracker row spacing, grading requirements, and shading losses.
