Data Logger

A Data Logger in the solar industry is a hardware or software device that continuously records operational and environmental data from a solar PV system. It collects real-time information such as AC and DC power output, voltage, current, module or inverter temperatures, irradiance levels, battery state of charge, and system alarms.

Data loggers play a critical role in monitoring, diagnostics, performance analysis, and O&M decision-making. They serve as the backbone of system visibility and allow installers, EPCs, and asset managers to understand how a system is performing over time—crucial for maximizing energy yield and tracking system degradation.

Modern solar platforms integrate data loggers with advanced monitoring dashboards, SCADA systems, and reporting tools. In workflows powered by SurgePV, data tracking supports accurate production modeling, proposal validation, and long-term system optimization using tools like Solar Designing and analysis hubs such as Solar Project Planning & Analysis.

Key Takeaways

A Data Logger records and transmits operational data from a solar PV system.
Essential for monitoring, diagnostics, performance modeling, and O&M planning.
Types vary from inverter-integrated loggers to SCADA-grade systems.
Accurate logging improves energy forecasting, warranty compliance, and long-term reliability.
Integrated with tools like SurgePV for analysis, design validation, and performance benchmarking.

What Is a Data Logger?

A Data Logger is a device or embedded controller that collects, stores, and transmits time-series data from solar PV components. It acts as the “black box” of a solar system, capturing essential operating metrics for:

Performance monitoring
Energy forecasting
Inverter behavior analysis
Component-level fault detection
Compliance reporting
Warranty validation

Most modern inverters include built-in data logging capabilities, while larger commercial and utility-scale systems often use dedicated loggers integrated with supervisory systems.

Related concepts include SCADA, Performance Ratio, and Stringing & Electrical Design.

How a Data Logger Works

The data logging process typically includes the following steps:

1. Data Collection

The logger gathers signals from sensors, inverters, meters, weather instruments, or battery systems. Measurements include:

DC voltage & current
AC power output
Temperature (module/inverter/ambient)
Irradiance and POA metrics
Battery SOC and SOH

2. Data Storage

The device stores data locally using:

Internal memory
SD cards
Flash storage
Cloud buffering

3. Data Transmission

Data is securely transmitted through:

Wi-Fi
Cellular networks
Ethernet
RS485 / Modbus
CAN bus

4. Data Visualization

Monitoring dashboards transform raw data into:

Performance charts
Alerts
KPI summaries
Energy yield reports

Platforms like SurgePV support data-driven modeling and comparisons by integrating these metrics with solar design outputs.

Types / Variants of Data Loggers

1. Inverter-Integrated Data Loggers

Built into most modern string, hybrid, and central inverters.

2. Standalone PV Data Loggers

External devices used for retrofit monitoring, ground-mount systems, or multi-inverter sites.

3. Weather Station Data Loggers

Capture irradiance, temperature, wind speed, module temperature, and POA data.

4. SCADA-Grade Data Loggers

Used in utility-scale systems for high-precision telemetry and control.

5. Battery Storage Loggers

Track SOC, SOH, charge/discharge cycles, and thermal conditions.

How It’s Measured

Data loggers measure time-series metrics according to:

Sampling Rate

How often data is collected (e.g., every 1 sec, 5 sec, 1 min, or 15 min).

Data Resolution

Higher resolution = more granular insight.

Accuracy Class

Defined in percentages (e.g., ±0.5%, ±1%).

Logged Parameters

Voltage, current, frequency, energy (kWh), temperature, irradiance, and more.

Storage Capacity

From a few MB to multiple GB, depending on system size.

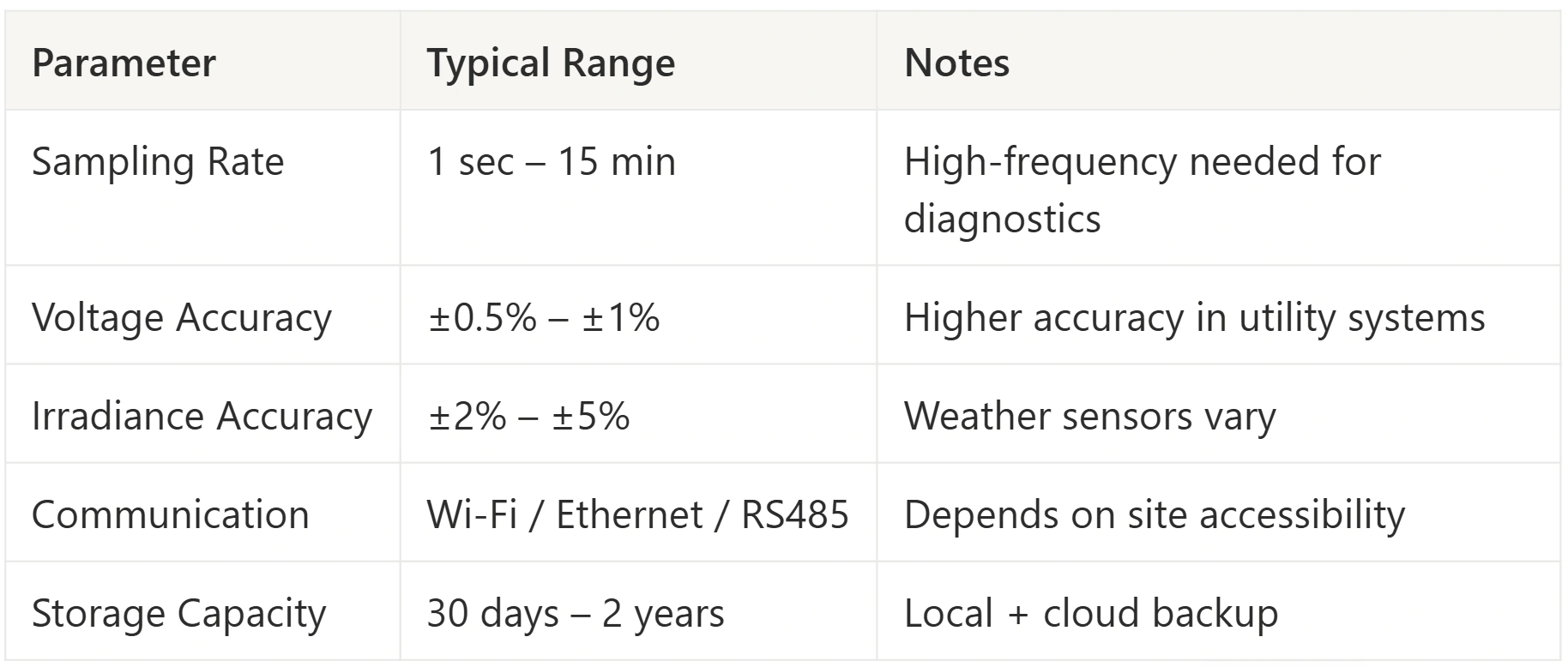

Typical Values / Ranges

Practical Guidance for Solar Designers & Installers

1. Match the data logger to system size

Residential systems may only need inverter-integrated logging; utility systems need SCADA-grade instruments.

2. Ensure strong communication reliability

Ethernet or cellular is preferred over Wi-Fi for commercial systems.

3. Log irradiance and temperature for accurate PR analysis

Supports performance benchmarking using Performance Ratio.

4. Integrate data with design tools

Use performance data to validate system output from tools such as Solar Designing.

5. Configure alerts for early fault detection

Inverter trips, arc faults, string mismatch, and energy anomalies can be caught early.

6. Maintain data retention policies

Keep logs for warranty validation and system audits.

7. Use accurate weather sensors

Especially important in utility-scale performance modeling.

Real-World Examples

1. Residential Solar System

A hybrid inverter with built-in logging records AC output, battery SOC, and load consumption every minute. Data syncs to a cloud platform for monitoring and homeowner reporting.

2. Commercial Flat-Roof Installation

A dedicated RS485 data logger collects string-level DC data, inverter AC output, and weather station readings. The building owner uses dashboards to track energy savings and flag anomalies.

3. Utility-Scale Solar Farm

A SCADA-integrated logger collects high-frequency telemetry from central inverters, trackers, combiner boxes, and meteorological stations. Engineers use this data for daily operational reports and performance ratio verification.
