Component Library (PV Database)

A Component Library, also known as a PV Database, is a centralized digital collection of solar equipment specifications used in modern PV design software. It contains detailed technical information for modules, inverters, racking systems, batteries, optimizers, BOS components, and other hardware required to engineer a fully compliant solar system.

A well-structured Component Library enables designers to create accurate system models by pulling real-world specifications directly into the design environment. Tools such as Solar Designing rely on these databases to ensure proper electrical sizing, performance simulation, shading analysis, and bill of materials accuracy.

Component Libraries are essential for engineering precision, proposal accuracy, NEC compliance, and ensuring that solar designs use equipment that is available, certified, and compatible with project requirements.

Key Takeaways

A Component Library (PV Database) stores verified technical specifications for PV equipment.
Ensures accurate designs, correct electrical parameters, and BOM precision.
Supports module placement, electrical design, shading analysis, and performance modeling.
Central to both engineering workflows and sales proposal accuracy.
Modern solar platforms like SurgePV rely on PV Databases to automate high-quality system design.

What Is a Component Library (PV Database)?

A Component Library (PV Database) is a structured dataset containing the technical specifications of solar PV system components. Each item in the database includes key attributes such as:

Module dimensions, wattage, I-V curve data
Inverter AC/DC specs, MPPT ranges, efficiency
Battery chemistry, usable capacity, voltage windows
Racking tilt ranges, structural load limits
MLPE requirements
Certifications (UL, IEC, fire ratings)

The Component Library ensures that designers select equipment based on real, validated performance data rather than generic assumptions.

Common related terms include Solar PV Library, Stringing & Electrical Design, and Bill of Materials (BOM).

How a Component Library Works

The functionality typically includes:

1. Centralized Equipment Catalog

Manufacturers’ specifications are stored in one searchable interface.

2. Automatic Parameter Pulling

When a designer selects a component, its technical specs automatically populate the model.

3. Compatibility Validation

The software ensures selected components fit electrical, physical, and certification requirements.

Examples:

Module VOC must match inverter voltage window
Roof racking must support tilt and load requirements

4. Performance Simulation Integration

Irradiance modeling tools (see Shading Analysis) use module performance curves directly from the database.

5. Bill of Materials Generation

BOMs are automatically created once equipment is selected.

6. Version Control & Updates

Manufacturers frequently update specifications; modern systems track revisions to avoid outdated designs.

Types / Variants of Component Libraries

1. Module Library

Includes monocrystalline, polycrystalline, thin-film, bifacial, and high-efficiency modules.

2. Inverter & MLPE Library

Stores string inverters, microinverters, optimizers, and hybrid inverters.

3. Battery Storage Database

Includes lithium-ion, LFP, NMC, and lead-acid storage specs.

4. Racking & Mounting Library

Tilt ranges, roof compatibility, load ratings, attachment methods.

5. BOS Component Library

Cabling, connectors, isolators, combiners, and monitoring hardware.

6. Derate & Loss Parameters Library

Used by performance modeling engines to calculate AC and DC losses.

How It’s Measured

A Component Library evaluates component data based on:

1. Electrical Parameters

VOC, ISC, Vmp, Imp, MPPT ranges, efficiency.

2. Physical Dimensions

Module length, width, weight, and mounting hole spacing.

3. Environmental Ratings

Temperature coefficients, fire ratings, IP protection classes.

4. Certification Status

UL 1703/61730, IEC 61215/61730, NEC compliance.

5. Performance Curves

I-V curve behavior across irradiance and temperature conditions.

6. Cost Profiles

Used during proposal generation and ROI modeling using the Solar ROI Calculator.

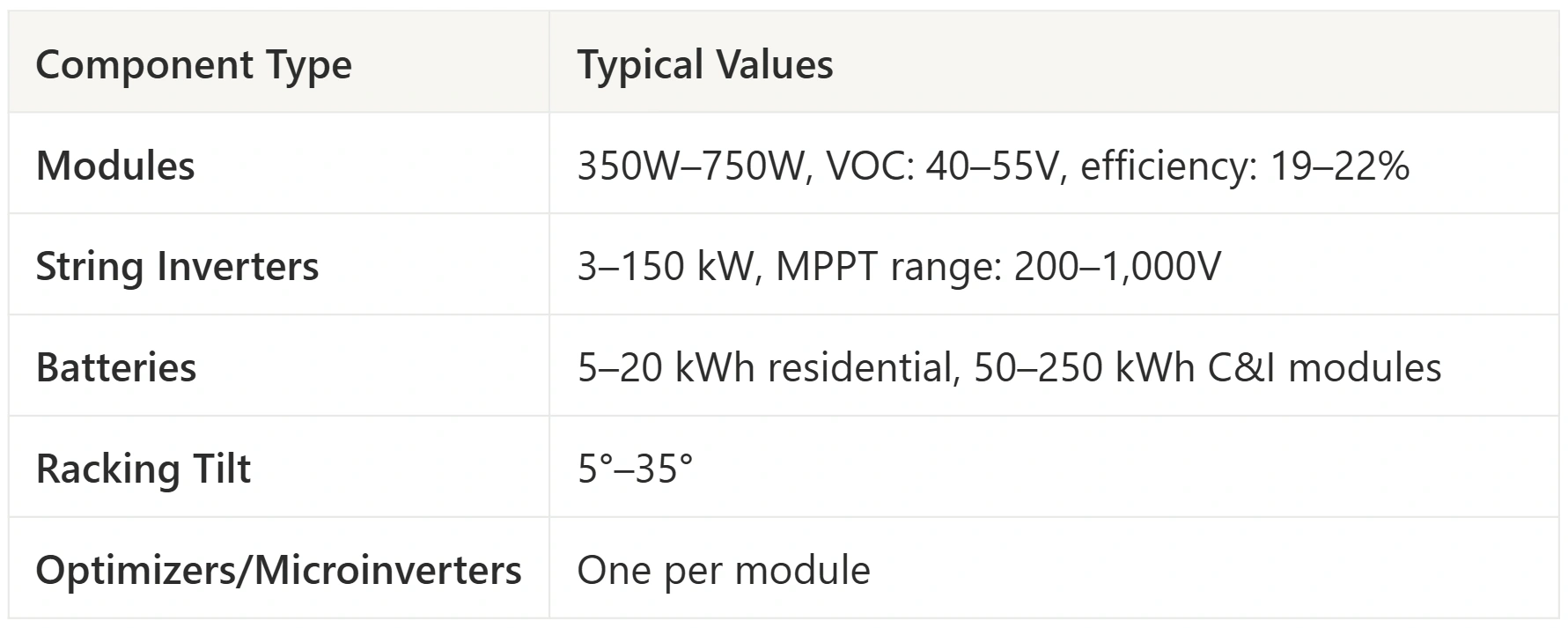

Typical Values / Ranges

These ranges vary widely by manufacturer and region.

Practical Guidance for Solar Designers & Installers

1. Always select components from an updated PV Database

Avoid outdated module specifications or discontinued inverters.

2. Validate compatibility before finalizing a design

Check voltage windows, current limits, and racking requirements.

3. Use the Component Library to build accurate proposals

Integrate components into Solar Proposals for transparent customer pricing.

4. Use MLPE data to prevent mismatch issues

Critical when designing irregular arrays or shaded roofs.

5. Match component performance to site conditions

Use module performance curves for temperature-heavy climates.

6. Incorporate real BOM cost data

For financial modeling, use tools like the Solar ROI Calculator or Generation & Financial Tool.

7. Maintain version control

Ensure engineering teams use identical component data for consistency.

Real-World Examples

1. Residential Rooftop Project

A designer selects a 450W monocrystalline module and a 7.6 kW string inverter from the Component Library.

The system auto-calculates VOC, string count, and required BOS hardware.

2. Commercial Flat Roof

The designer chooses 540W modules with portrait racking and optimizers.

The PV Database ensures proper electrical matching at scale.

3. Utility-Scale Ground-Mount

Modules, central inverters, and tracking systems are selected from database entries.

The design tool automatically generates a complete BOM and energy model.
