Quick answer
A solar cell’s maximum electrical power divided by incident light power over its declared measurement area, under specified test conditions.
Key Takeaways
- Cell efficiency compares maximum electrical power with the incident light power over a declared cell measurement area.
- Report the irradiance, spectrum, device temperature and area convention beside the percentage.
- Cell efficiency and whole-module efficiency have different device and area boundaries.
- A module’s rated wattage already describes its electrical output at stated conditions; do not multiply it by efficiency again.
- Annual energy depends on the actual module, site and system behavior, not the cell percentage alone.
What Is Cell Efficiency?
Cell efficiency is the maximum electrical power a solar cell delivers divided by the incident light power over its stated measurement area, expressed as a percentage. A meaningful comparison specifies irradiance, spectrum, device temperature and area convention. It describes conversion at a test condition, not whole-module efficiency or annual electricity generation.
The Department of Energy’s efficiency overview explains controlled measurements of current and voltage while maintaining defined illumination and temperature. The reported percentage belongs to those conditions. It should not be presented as a constant fraction applying unchanged to every outdoor hour.
Use cell efficiency to interpret a device measurement. Use the finished module’s specification and the site’s model to make a system-design decision.
For a space-constrained roof, watts per module area can matter. The relevant finished-product comparison is module efficiency, dimensions and feasible layout. A research cell record does not establish the capacity that will fit on that roof or the performance of a purchasable module.
Formula, Inputs and Measurement Area
For declared conditions:
Cell efficiency (%) = Pmax ÷ (G × A) × 100.
Pmax is electrical output at the maximum-power point, in watts. G is incident irradiance in W/m². A is the declared measurement area in m². Irradiance multiplied by area gives watts of incident optical power, so the efficiency is a dimensionless power ratio expressed as a percentage.
| Input | Symbol | Unit | Evidence to check |
|---|---|---|---|
| Maximum electrical power | Pmax | W | Measured current-voltage curve and reporting conditions |
| Incident irradiance | G | W/m² | Calibrated test illumination or declared reference condition |
| Measurement area | A | m² | Total, aperture or another stated reporting convention |
| Device temperature | T | °C | Actual test/device condition, not room temperature alone |
| Spectrum | Declared reference | Specified spectrum | Flat-plate and concentrator reporting must be distinguished |
Do not mix an active-cell-area numerator with a whole-module-area comparison. Area conventions can change the reported percentage even when the power is unchanged. Use matching definitions before concluding that one result exceeds another.
Calculate efficiency for a hypothetical cell measurement and identify the error caused by using the wrong area.
| Parameter | Symbol | Value | Unit | Origin |
|---|---|---|---|---|
| Maximum electrical power | Pmax | 6.2 | W | Hypothetical measurement |
| Declared measurement area | A | 250 | cm² | Hypothetical measurement area |
| Incident irradiance | G | 1,000 | W/m² | Assumed test irradiance |
- Formula
- Efficiency (%) = Pmax ÷ (irradiance × declared area) × 100.
- Calculation
- 250 cm² ÷ 10,000 = 0.025 m². Incident power = 1,000 W/m² × 0.025 m² = 25 W. Efficiency = 6.2 W ÷ 25 W × 100 = 24.8%.
- Result
- Under the assumed conditions, the calculated cell efficiency is 24.8%.
- Interpretation
- The electrical output is 24.8% of incident light power over the declared area. This is not a commercial specification or an annual output forecast.
- Assumptions and limitations
- Using 25 cm² instead would imply 248%, exposing inconsistent inputs for this ordinary non-concentrating optical input/output calculation. Check area conversion, test illumination and reporting convention; no real cell was measured for this example.
- Data source
- Explicit hypothetical inputs and independently scripted arithmetic
Keep power and energy separate. A power ratio at a test condition does not calculate annual kWh. That requires a time-dependent resource and operating model with a declared output boundary.
Reference Conditions and Research Records
The NLR research-cell chart’s explanatory notes distinguish global reference-spectrum reporting for flat-plate devices from direct-spectrum reporting for concentrator devices. They specify a 25°C reference temperature and a reported cell area convention. Those notes are part of the measurement’s meaning, not optional fine print.
SAM’s PVWatts system-design reference identifies conventional flat-plate standard test conditions as 1,000 W/m² irradiance, 25°C cell temperature and air mass 1.5. The device temperature is not the outdoor air temperature. Measurements can also use other declared conditions, so “efficiency is always measured at STC” is too broad.
A laboratory record answers a research question: what performance was confirmed for that device, area and reporting condition? Equipment selection asks different questions about purchasable modules, model variants, compatibility, warranty and project availability. Do not convert a record into a claim about commercial roof performance.
When checking a record, retain its date, technology classification, area, confirmation and conditions. This entry does not reproduce a moving leaderboard or assign an unsourced record percentage to a technology family. The solar-cell records timeline is a related resource whose dated claims should be checked before using them in a proposal.
Cell Efficiency Versus Module Efficiency
A cell is a device within a finished module. The finished product includes cells, interconnections and optical/structural layers, with an external area that differs from the cell measurement area. Its module-efficiency specification belongs to that complete product and the manufacturer’s stated measurement basis.
| Comparison | Cell efficiency | Module efficiency |
|---|---|---|
| Device being assessed | Individual research or production cell | Finished module |
| Area to identify | Stated cell reporting area | Manufacturer’s stated module area |
| Practical evidence | Qualified device measurement and conditions | Exact product datasheet and power class |
| Suitable use | Interpret conversion performance and research | Compare product power per area and feasible layouts |
| What it cannot prove alone | Commercial availability or annual energy | Actual roof fit, compatibility or financial return |
There is no universal fixed subtraction from cell efficiency to module efficiency. Compare the actual measured device and finished product instead of assigning one difference to all constructions.
Hypothetical Module Comparison
A hypothetical module delivering 450 W over a stated 2.0 m² at 1,000 W/m² has efficiency 450 ÷ (2.0 × 1,000) × 100 = 22.5%. This is a separate calculation from the hypothetical cell example above; the two are not measurements of a shared commercial product.
The 450 W rating already represents electrical output under its stated conditions. Multiplying that rating by 22.5% would double-count conversion efficiency. To calculate production, use an appropriate module model and site resource rather than reducing nameplate wattage by the efficiency percentage again.
Why Field Output Changes
Efficiency describes conversion under specified conditions, while field output follows changing irradiance, spectrum, temperature and electrical operation. The DOE overview identifies wavelength-related effects, recombination, temperature and reflection as factors influencing conversion. These mechanisms explain why a laboratory percentage needs context.
Shade, soiling, electrical mismatch, inverter conversion, clipping and downtime affect delivered system energy separately. Do not rename all of those effects “cell efficiency” or assume a more efficient cell eliminates them.
Relative Power Change Is Not an Efficiency-Point Change
Assume a hypothetical 450 W module, a valid linear Pmax coefficient of −0.30%/°C and cell temperature 20°C above a 25°C reference. Holding other conditions fixed, the temperature-only estimate is 450 × [1 − (0.003 × 20)] = 423 W.
The calculated reduction is 27 W, or 6% of the reference power. That is not a six-percentage-point drop in efficiency. It is also not a complete outdoor prediction: the coefficient’s applicability and the actual irradiance and operating point must be checked.
See temperature coefficient for the distinction between the parameters used for power, voltage and current. A parameter for one quantity should not be substituted for another without a supported method.
Technology Labels Need Product Evidence

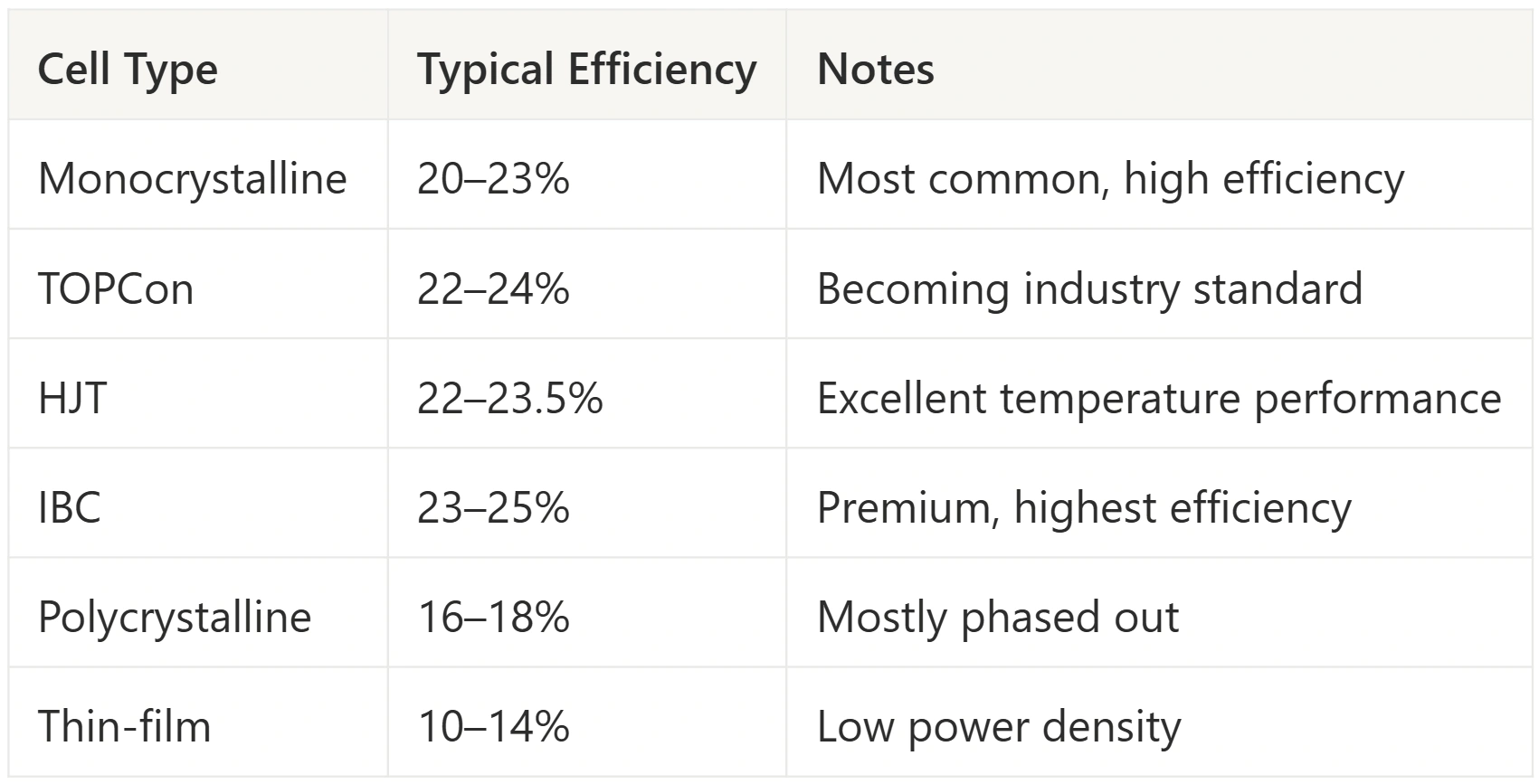

PERC, TOPCon, heterojunction, back-contact and tandem describe aspects of device architecture or material arrangement. A label alone does not establish a finished module’s exact efficiency, temperature response, degradation or warranty.
For a procurement decision, obtain the precise product sheet and power class. For a research comparison, obtain the confirmed measurement and reporting notes. Those two evidence packages answer different questions, and neither should be replaced by a generic ranking copied from an undated table.
A technology can be a useful way to organize research without being a guarantee. If a product document does not supply an input needed for the design, request it or use an appropriate documented model; do not fill the gap from a nearby model or technology-family average.
Practical Guidance
For Designers
Compare the dimensions, rated power and area basis of actual modules that could be installed. Develop feasible layouts before quoting capacity from roof area. Gaps, access, irregular geometry and project requirements determine which complete modules fit.
Keep energy and electrical checks separate. Use the actual voltage, current and equipment constraints for compatibility, then model the layout’s production. Performance ratio describes a different system metric and is not the same percentage as cell efficiency.
For Installers
Confirm that the delivered model and power class match the approved equipment schedule. Follow the exact handling, mounting and connection instructions. A higher efficiency label does not authorize a module substitution or prove structural suitability.
Record site conditions that differ from the design evidence. Unexpected shading, changed mounting or an altered module layout can affect output even if the datasheet efficiency is unchanged. Send those changes back for the required review.
For Sales Teams
Explain power per area using the finished-module specification. For a space-constrained project, compare the actual layouts and modeled outputs, not a research-cell record. Keep installed price, warranty terms and financial assumptions alongside the modeled result.
A higher percentage is not a savings guarantee. When reviewing PV design outputs, retain the product data and operating conditions behind them. Present the assumptions alongside the efficiency value.
How SurgePV Supports the Layout Decision
Use SurgePV’s solar designing workflow to evaluate the geometry and module placement required for a project. Verify the available equipment data and comparison outputs with the actual products being considered. This entry does not claim that the software measures laboratory cell efficiency or certifies a manufacturer specification.
Request a demonstration with a space-constrained layout and the relevant module data. That makes the comparison concrete without turning a cell percentage into a universal recommendation. Related entries on solar cells and high-efficiency panels provide the device and finished-product context.
Frequently Asked Questions
What does a 24.8% cell efficiency mean?
In the hypothetical example, electrical power at the maximum-power point is 24.8% of incident light power over the declared measurement area. The percentage belongs to the assumed illumination, temperature and area definition. It is not a measured commercial specification, a module-efficiency value or an annual energy-output promise.
Are cell and module efficiencies interchangeable?
No. Cell and module efficiencies describe different devices and area boundaries. Use the cell measurement to interpret that device’s conversion performance and the finished module’s specification for a product comparison. Neither percentage alone establishes a feasible layout, electrical compatibility, annual production or the financial result of an installation.
Does a higher-efficiency cell guarantee more annual energy?
No. Annual output depends on the finished module, available resource, layout, temperature, shading, electrical design and operating conditions. Higher module efficiency can help a space-constrained layout, but compare the actual feasible configurations using consistent inputs. A cell record alone cannot establish the energy advantage of a proposed roof installation.
Should I multiply module wattage by its efficiency?
Do not reduce the rated wattage by the efficiency percentage again. Rated power already describes electrical output under the stated conditions. Use an appropriate production model for the site’s resource and operating conditions. Multiplying nameplate power by module efficiency would double-count the conversion relationship used to define that efficiency.
Where can current research-cell records be checked?
Consult the NLR research-cell chart and its dated supporting data. Check the technology, reported area, reference spectrum, temperature and measurement confirmation before comparing records. A result for a laboratory cell or concentrator device is not automatically a rating for a purchasable flat-plate module suitable for a roof installation.
