Azimuth

In the solar industry, azimuth refers to the compass direction that a solar array faces, measured in degrees. It determines how sunlight hits the surface of a solar panel throughout the day and is one of the most influential variables in energy production.

A properly chosen azimuth angle maximizes daily irradiance, reduces shading losses, and ensures the PV system generates the highest possible kWh for the location. Solar designers rely on azimuth calculations in every type of project—residential, commercial, industrial, and utility-scale—often using design tools such as Solar Designing and the Sun Angle Calculator to determine optimal orientation.

Key Takeaways

Azimuth is the compass direction a solar array faces, measured in degrees.
Optimal azimuth maximizes sunlight exposure and annual energy yield.
Northern Hemisphere → true south; Southern Hemisphere → true north.
Slight deviations from ideal azimuth have minimal impact on production.
Shading, roof geometry, terrain, and BOS routing influence azimuth choice.
Software like SurgePV automates azimuth selection and optimization.

What Is Azimuth?

Azimuth is the horizontal angle that indicates the direction a solar panel faces relative to true north. It is expressed in degrees:

0° = North
90° = East
180° = South
270° = West

Because the sun’s path changes with latitude and seasons, selecting the correct azimuth is essential for maximizing solar energy yield.

For example:

In the Northern Hemisphere, the ideal azimuth is close to 180° (true south).
In the Southern Hemisphere, the ideal azimuth is close to 0° (true north).

Azimuth works together with tilt, irradiance, and shading to determine energy production. For deeper performance modeling, see POA Irradiance and Shading Analysis.

How Azimuth Works

Azimuth influences:

1. Sunlight Exposure

Panels facing the optimal azimuth receive the highest intensity and duration of sunlight.

2. Seasonal Performance

A correctly chosen azimuth balances summer and winter sun paths for stable year-round yield.

3. Shading Interaction

Azimuth determines how shadows from trees, chimneys, or obstructions move across panels.

4. Energy Modeling & Optimization

Software tools calculate optimal azimuth using factors like latitude, climate, terrain, and roof geometry.

Design platforms such as SurgePV use azimuth automatically during:

Auto-Design
Layout optimization
Stringing design
Energy modeling
Proposal computations

See Solar Layout Optimization for more context.

Types / Variants of Azimuth Used in Solar

1. True Azimuth

Measured relative to true north (geographic north).

Most solar tools and engineering calculations use true azimuth.

2. Magnetic Azimuth

Measured relative to magnetic north, which varies by location.

Magnetic declination must be corrected in solar design.

3. Roof Azimuth

Actual panel orientation based on roof pitch, shape, or architectural constraints.

4. Tracker Azimuth

Dynamic azimuth adjustments used in single-axis or dual-axis tracker systems.

See Solar Tracker.

How Azimuth Is Measured

Azimuth is measured in degrees (°) using:

Compass + Declination Correction

Traditional method but requires magnetic-to-true correction.

Satellite Imagery

PV design platforms use satellite and LiDAR data.

Drone or LiDAR Surveys

Provides high-accuracy measurements for commercial and utility-scale sites.

Solar design software

Professional design tools calculate azimuth automatically based on geolocation and roof geometry.

See Solar Designing.

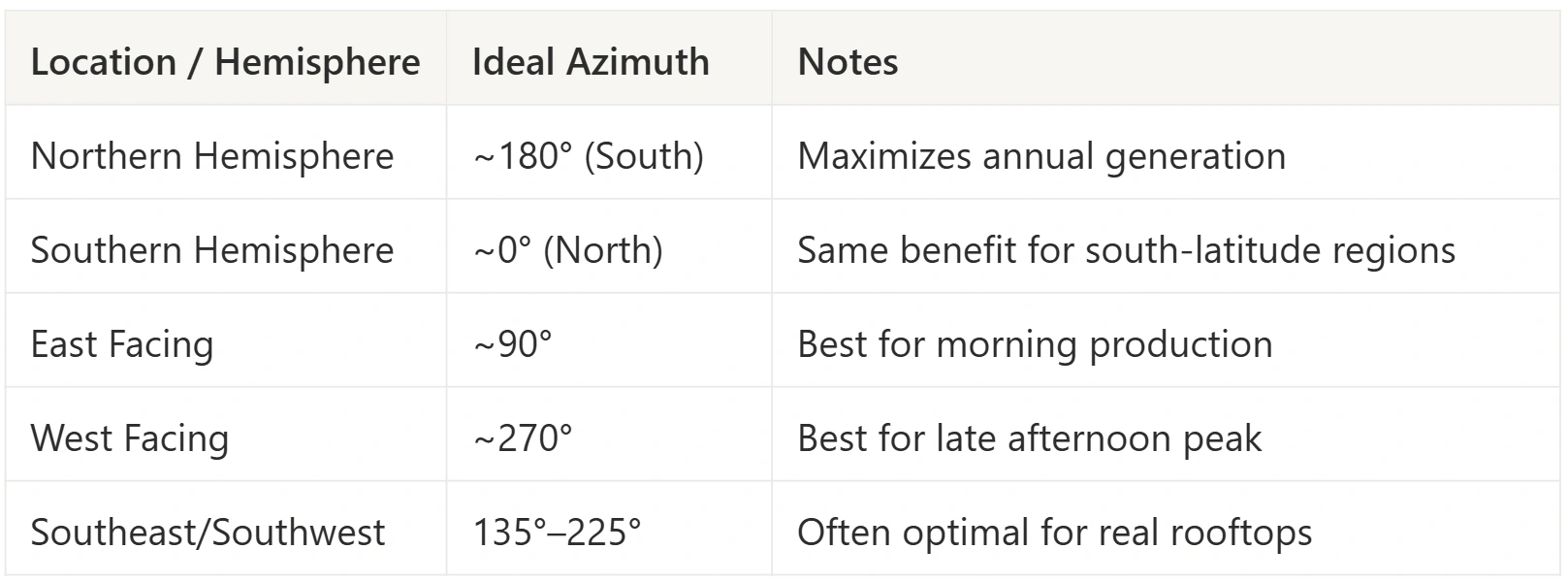

Typical Azimuth Values / Ideal Ranges

Commercial flat-roof systems may use azimuth from 90°–270° depending on row spacing and shading avoidance.

Practical Guidance for Solar Designers & Installers

1. Prioritize true south (or true north)

This orientation gives the highest annual kWh yield.

2. Adjust azimuth when fixed constraints exist

Roofs rarely align perfectly south—small deviations (10°–30°) have minimal loss.

3. Avoid shading-heavy azimuths

Use Shadow Analysis to identify obstructed directions.

4. Use design tools for precision

Tools like the Sun Angle Calculator help determine the sun’s seasonal path.

5. In commercial systems, prioritize simplicity

For flat roofs, designers often choose a consistent azimuth (often south or southwest) to simplify:

Racking installation
BOS wiring
Walkway planning
Wind load considerations

6. Trackers Optimize Azimuth Automatically

Single-axis trackers track east → west daily, maximizing POA irradiance.

7. Combine azimuth with tilt for best results

See Tilt Angle for optimal tilt selection.

Real-World Examples

1. Residential Rooftop in the USA (Northern Hemisphere)

A home with a roof azimuth of 165° (slightly southeast) yields 98–99% of the energy of a perfectly south-facing system—negligible loss.

2. Commercial Flat Roof

A 500 kW array is oriented at 195° to avoid parapet shading and optimize BOS wiring. This improves annual production by 3%.

3. Utility-Scale Solar Farm

A single-axis tracker field dynamically follows the sun’s azimuth throughout the day, increasing annual generation by 15–25%.
